Manual 0-5205 4-19 BASIC WELDING GUIDE
Art # A-07709

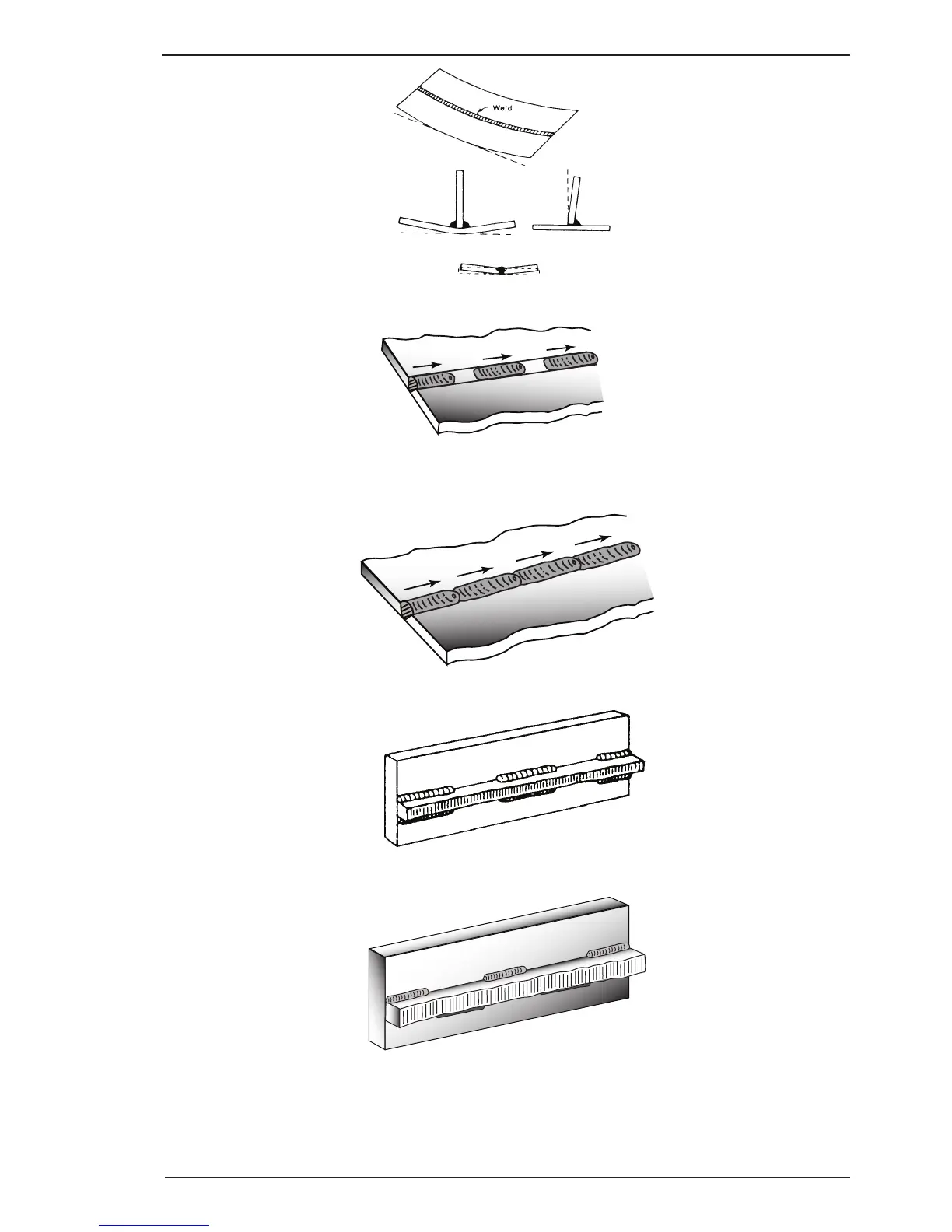

Figure 4-33: Examples of Distortion
Art # A-07710_AB
1
Block Sequence.
The spaces between the welds are
filled in when the welds are cool.
2
3
Figure 4-34: Welding Sequence
Art # A-07711_AB
4
3
2
1
Figure 4-35: Step back Sequence
Art # A-07712
Figure 4-36: Chain Intermittent Welding
Art # A-07713_AB
Figure 4-37: Staggered Intermittent Welding
