MA4 Maintenance - Sealant Material Plumbing
(D)
(E)
Material Plumbing
Its important to check the torque of the nuts on
the plumbing flanges, check the torque of the
nuts after the initial 8 hours of run time, then
every 200 hours after that.

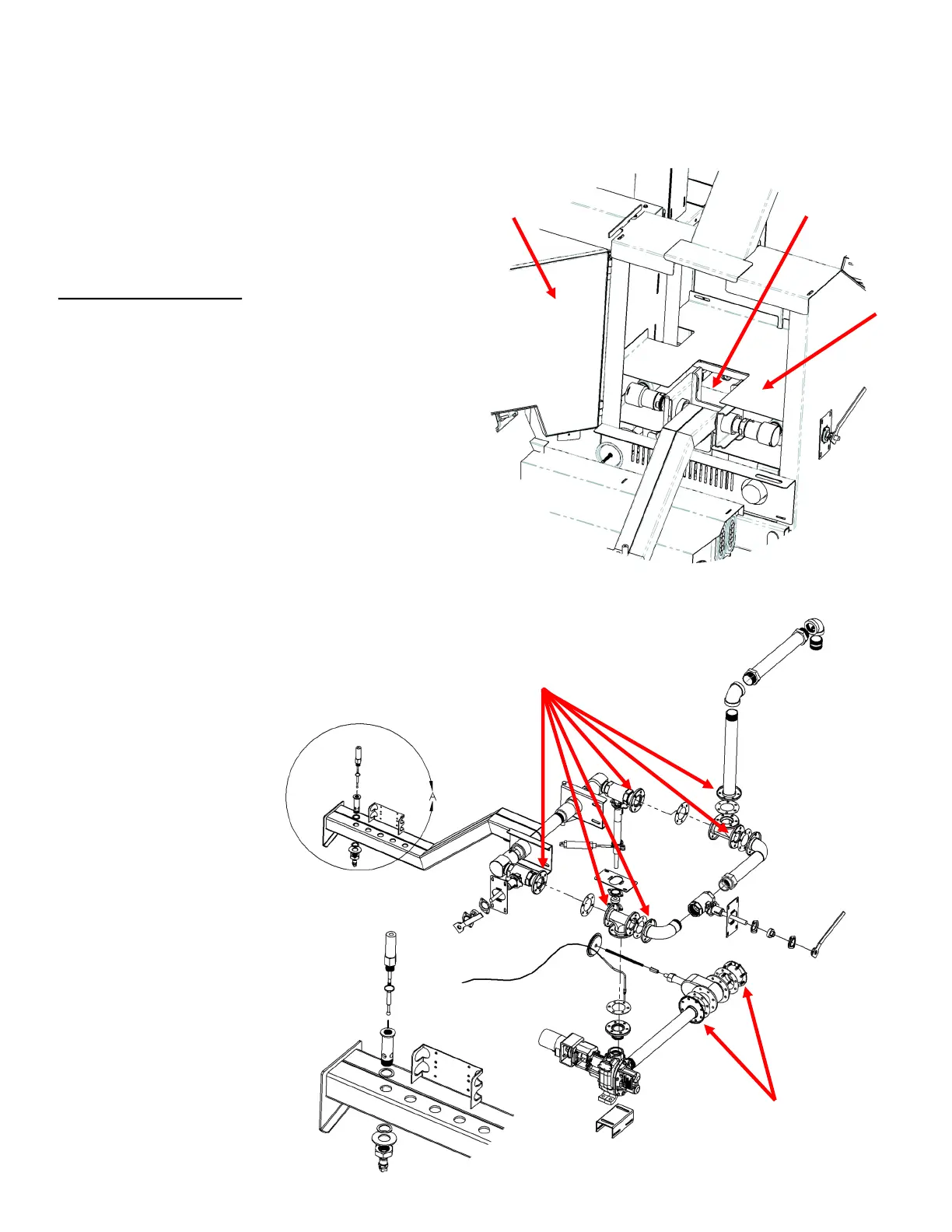

Accessing Plumbing
A) Open rear cabinet door (A).
B) Remove heat baffle plate (B).
C) Remove pump heat duct plate (C).
Use a torque wrench with an extension
and check the 6 nuts from each of the
upper flanges (D).
Set torque to 40 ft./pounds.
Use a torque wrench with an extension
and check the 8 nuts on the lower pump
flanges (E).
These need to be set to 40 ft/.pounds.
