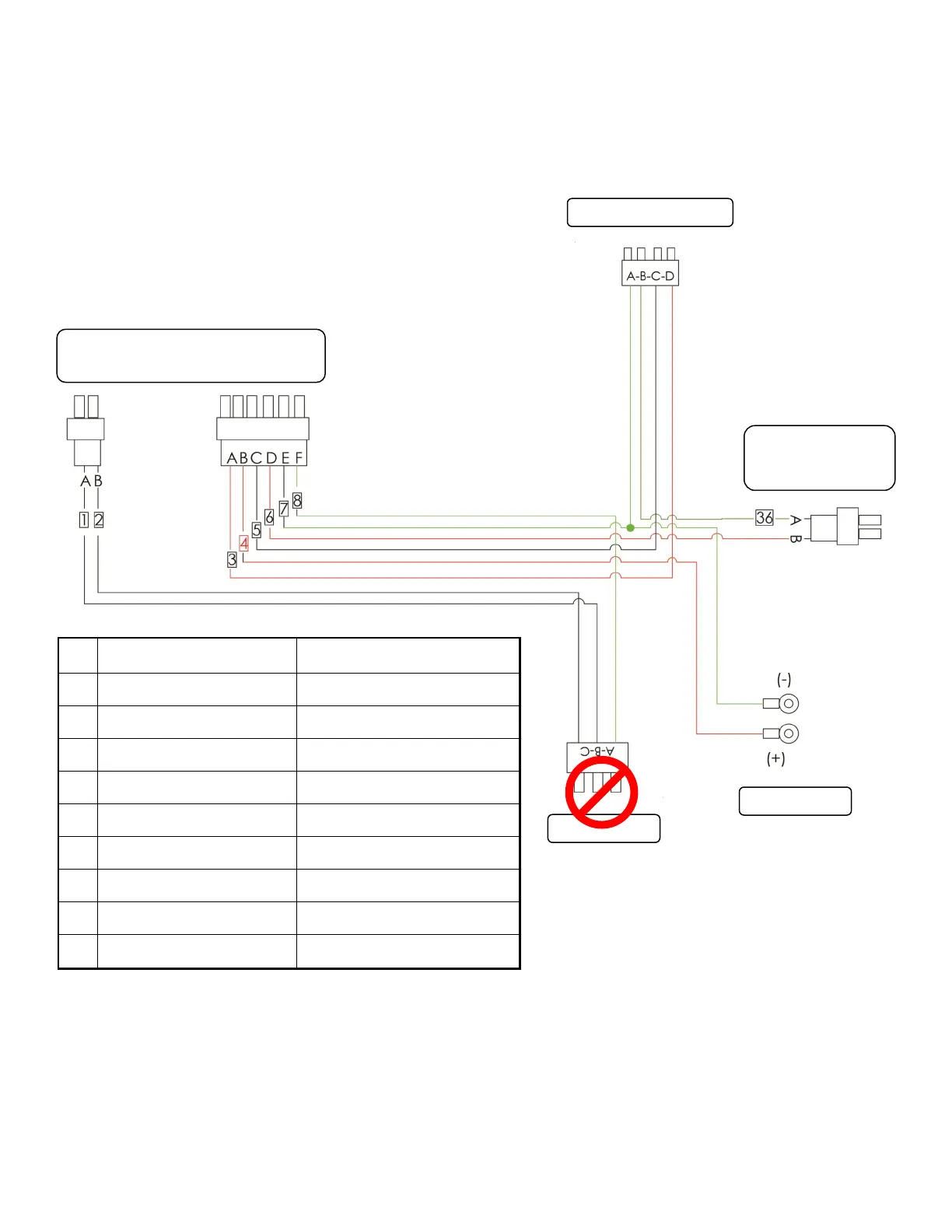

Melter Component Harness - PN 130578
Wiring diagram - All Melters
# Color Function
1 White Hose A.C. Voltage
2 Black Hose A.C. Voltage
3 Red/Black Stripe Burner Power
4 Red Battery (+)
5 White Burner Enable
6 Red Micro Panel Acc. Input
7 Green/Yellow Stripe Battery (-)
8 Green Generator Excite
36 Brown Burner Reader
MAIN CONTROL PANEL
Tank Burner
Generator
Battery
LOFA
(Engine Switch)
MA4 Main Wiring Harness Diagram
NOT USED
To Next Page
