CIMLINE MA4 - MA4 Tank Burner Parts

47

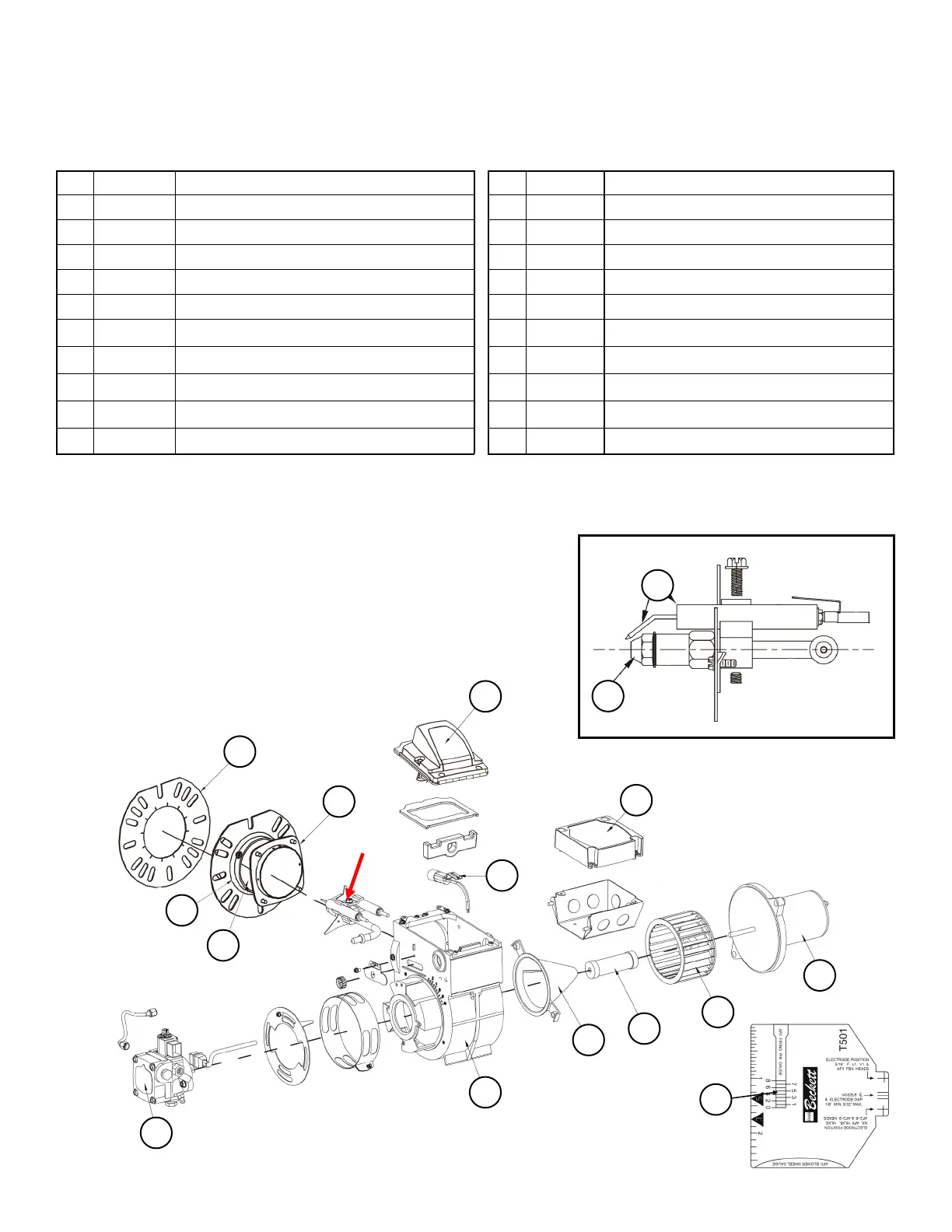

Tank Burner Parts
# PART # DESCRIPTION # PART # DESCRIPTION
1 404388 Tank Burner, Complete 11 152398 Air Inlet Guide
2 153505 Square Plate, Gasket 12 152399 Coupling
3 152191 Tank Burner Motor (Items #12 & #13) 13 152466 Blower Wheel
4 155001 Fuel Pump 14 152105 Cad Cell (Electric Eye) Assembly
5 152128 Gasket, Burner Flange 15 152305
Nozzle Tip M1 & C1 1.75gph x 90B
6 152173 Ignition Transformer Assembly 15 152204
Nozzle Tip M2 2.00gph x 90B
7 152668 Nozzle / Electrode Set Gauge 15 152445
Nozzle Tip M4 & MA4 2.25gph x 90B
8 200352 Primary Control Assembly 16 152106 Electrode Rod Assembly
9 120443 Air Tube * 130166 Fuel Pressure Gauge
10 153446 Burner Head Tube * - Not Shown
7
10
4
1
9
2
5
6
14
13
3
12
11
8
(A)
15
16
(A)
