Tank Burner Chamber Lining:
After initial 200 hours of operation, the chamber lining must be inspected. Cracks in lining may occur
and should be regularly inspected and monitored. If cracks expand excessively a new lining kit should
be ordered to replace worn lining.

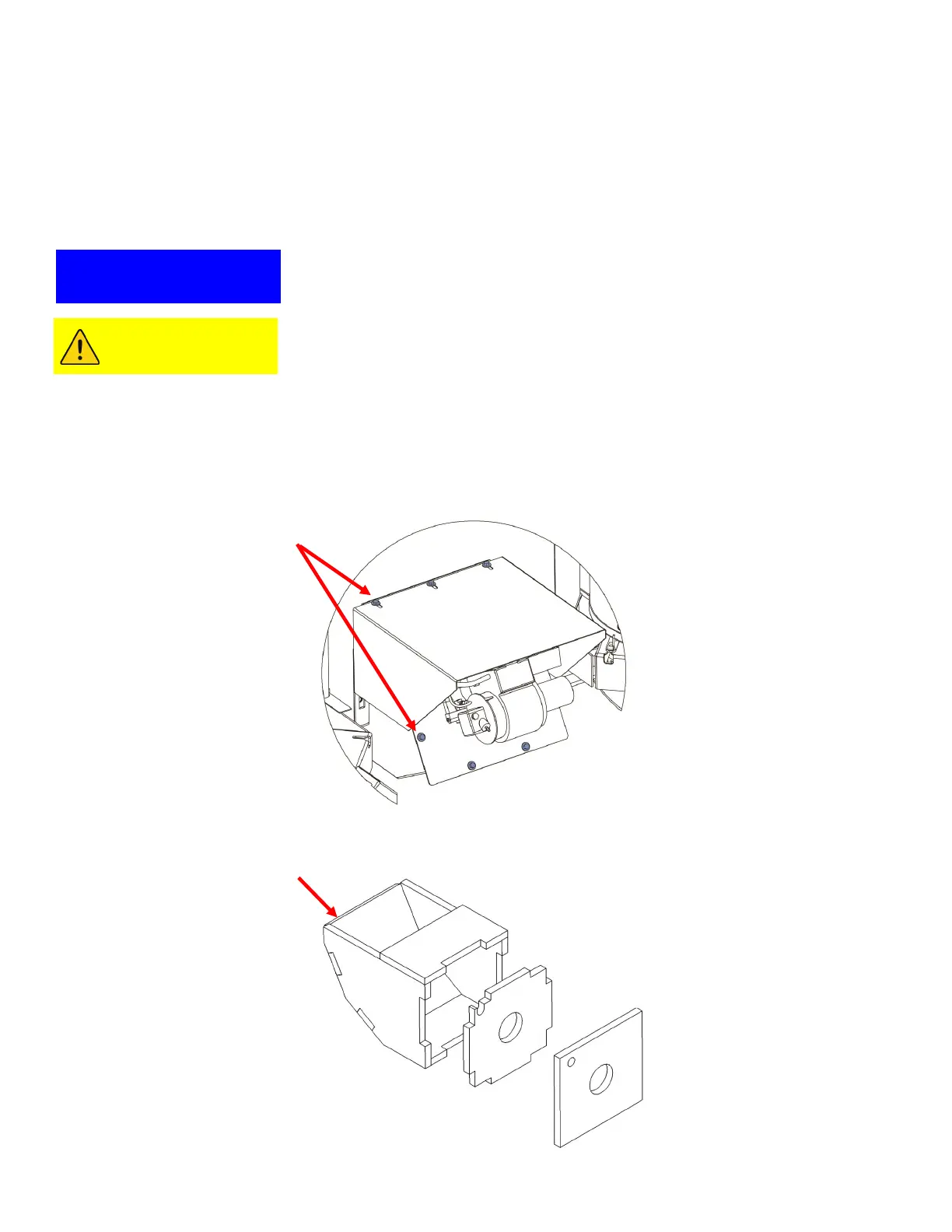

Remove tank burner mount bolts (A) and pull out burner and mount. Inspect lining (B) for excessive
cracking. If cracks exceed guidelines, contact your CIMLINE dealer to purchase a replacement PN#
403400 Burner Chamber Lining Kit.
(A)
1
2
3
4
5
6
7
8
(B)
MA4 Maintenance - Tank Burner
Assemble chamber insulation
in the order shown 1-8.
Do not run machine if cracks are wide enough to allow flame to
contact the metal combustion chamber walls or if any piece has
broken loose. Do not attempt to repair cracks.
NOTICE
Contact with lining may cause skin or eye irritation, wear long
sleeve shirt, gloves, and goggles when inspecting lining.
CAUTION
