Connecting to Plumbing
Note: To ensure that flow switch gets properly triggered, maximize the amount of straight pipe before Cell, at least
6”.
1. 11 inches of straight pipe length are required for the installation.

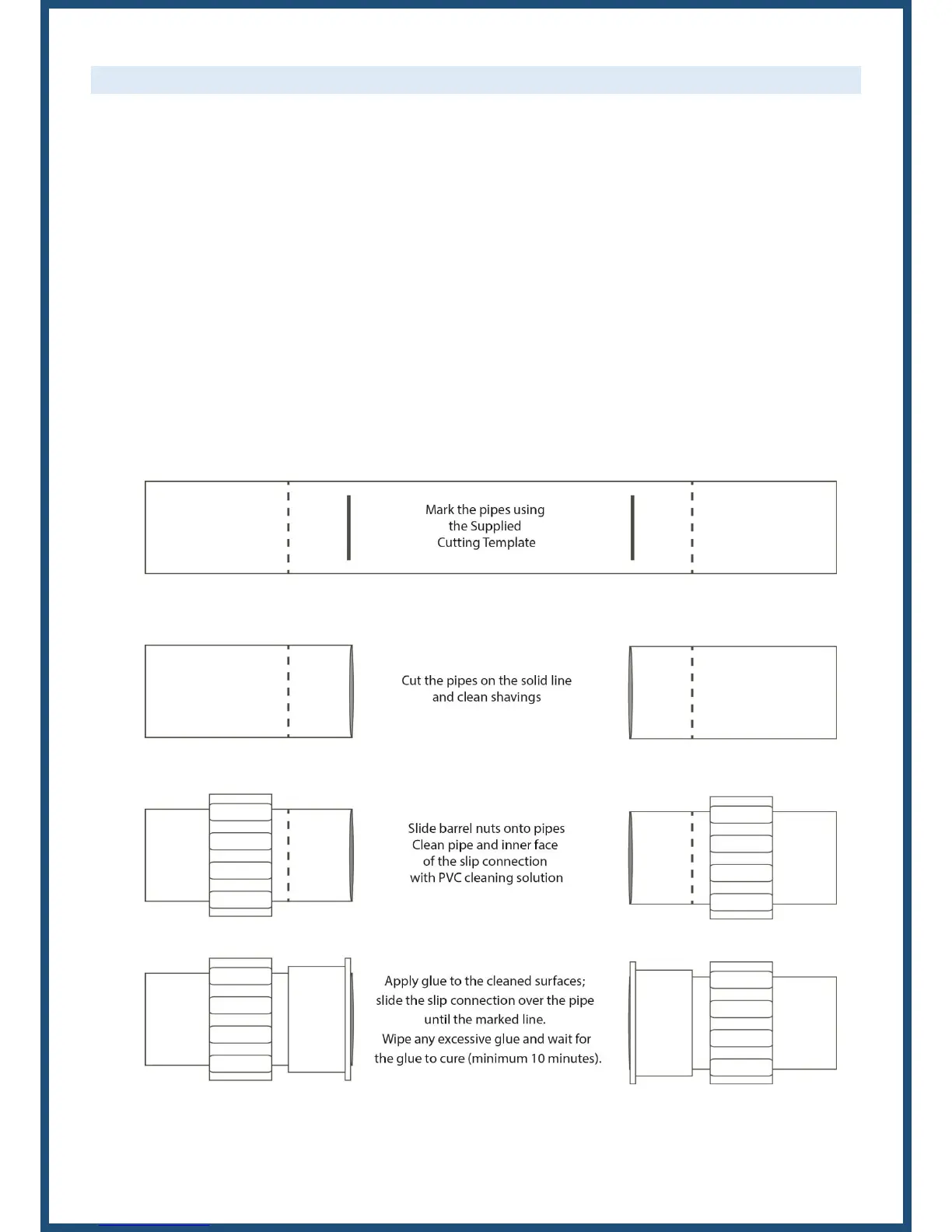

2. On the section of pipe where the cell will be installed, use the Cutting Template to mark two lines 7.5”
apart. This is the pipe area that will be removed. (Template is for 2” plumbing only)
3. Cut the pipe at the marked lines using a hacksaw or pipe cutter. Make sure that the cut is parallel and
straight.
4. Slip the Threaded collars onto each end of the cut pipe.
5. Clean pipe and inside of Barrel Unions with PVC Primer. Apply glue to cleaned surfaces and slide the
Barrel Unions fully onto pipe. Be sure to follow all directions on glue & primer, and wipe any excess
glue.
6. After the glue had sufficient drying time, place the system with the o-rings into the opening between
the two ends of the pipe and tighten the unions (hand-tight only)
