Connecting to Power
CAUTION: Power must be shut off at the circuit breaker before performing any wiring. Be sure to follow local and
NEC/CEC electrical codes. It is best that the outlet be wired parallel to the pump so both the unit and pump are
working simultaneously. The system has been designed to easily wire into typical in-ground pool systems. To provide
safe operation, the unit must be properly grounded. The Control Module uses a switch-mode power supply designed
to automatically accept either 120VAC or 220VAC (no internal adjustments are needed).
The CORE Series is shipped from the factory with a power cord that ends in a standard 120VAC plug, to allow the
easiest installation. When used with variable-speed or other electronically controlled pumps, you may wish to wire
the Control Module directly to your power source. This will allow the pump to determine when the Cell is energized
or dormant by activation of the Flow Switch.

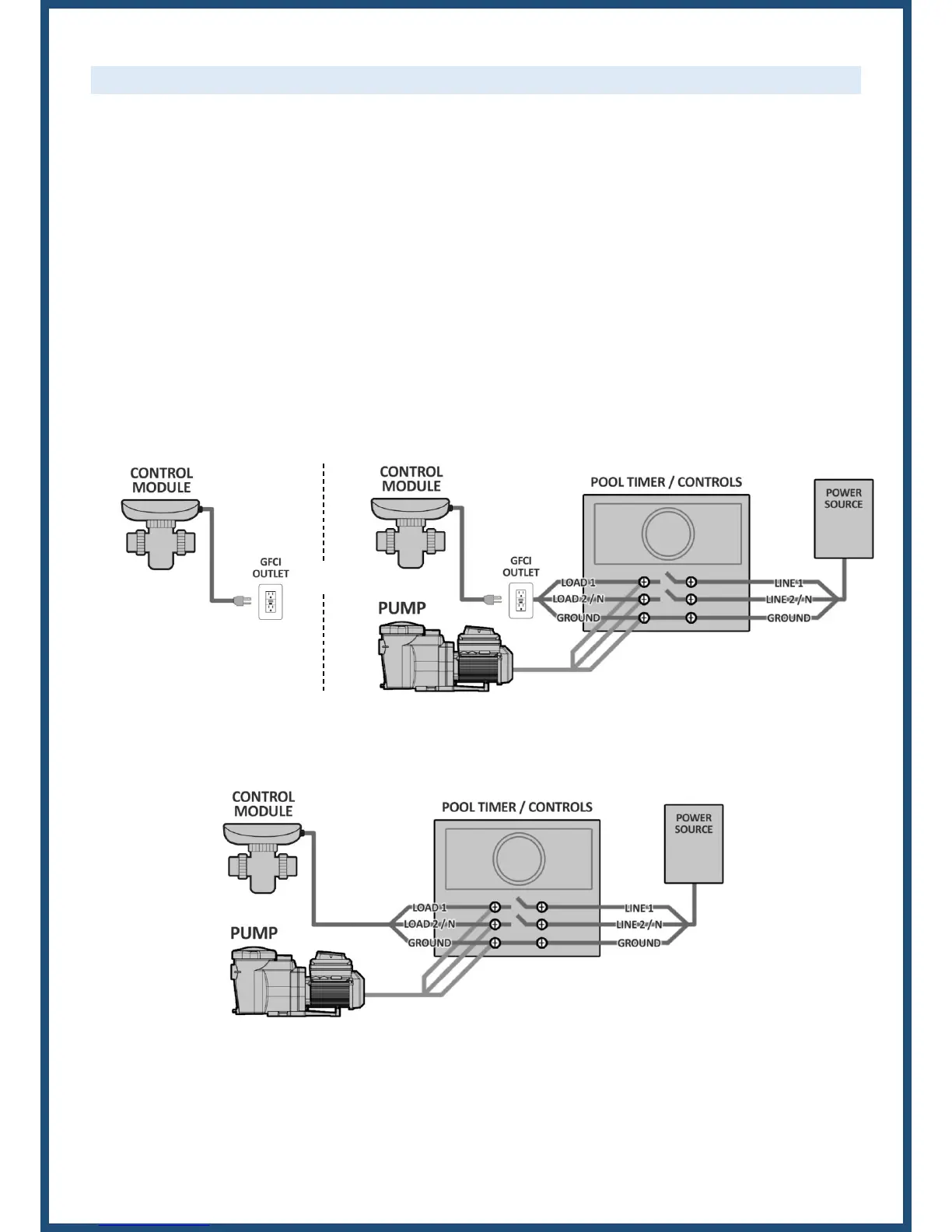

A. Simply plug the unit into a ground fault circuit interrupter (GFCI) safety outlet or an outlet protected by a ground
fault circuit breaker (GFCB).
0
If for some reason a hardwire connection is desired, the wiring can to be modified by a qualified person.
At this point, this installation of your equipment is complete. If the water has not yet been prepared, then you are
ready to begin adding salt and balancing your water chemistry, see pages 6-8. Turn the Control Module to the Power
Off mode until enough salt has been dissolved in the water.
