WARNING – Always make sure the input power is completely disconnected before attempting any troubleshooting procedures.
All troubleshooting should be done by a qualified professional.
System Error 1 (CONTINUED) – Sub-Error Codes

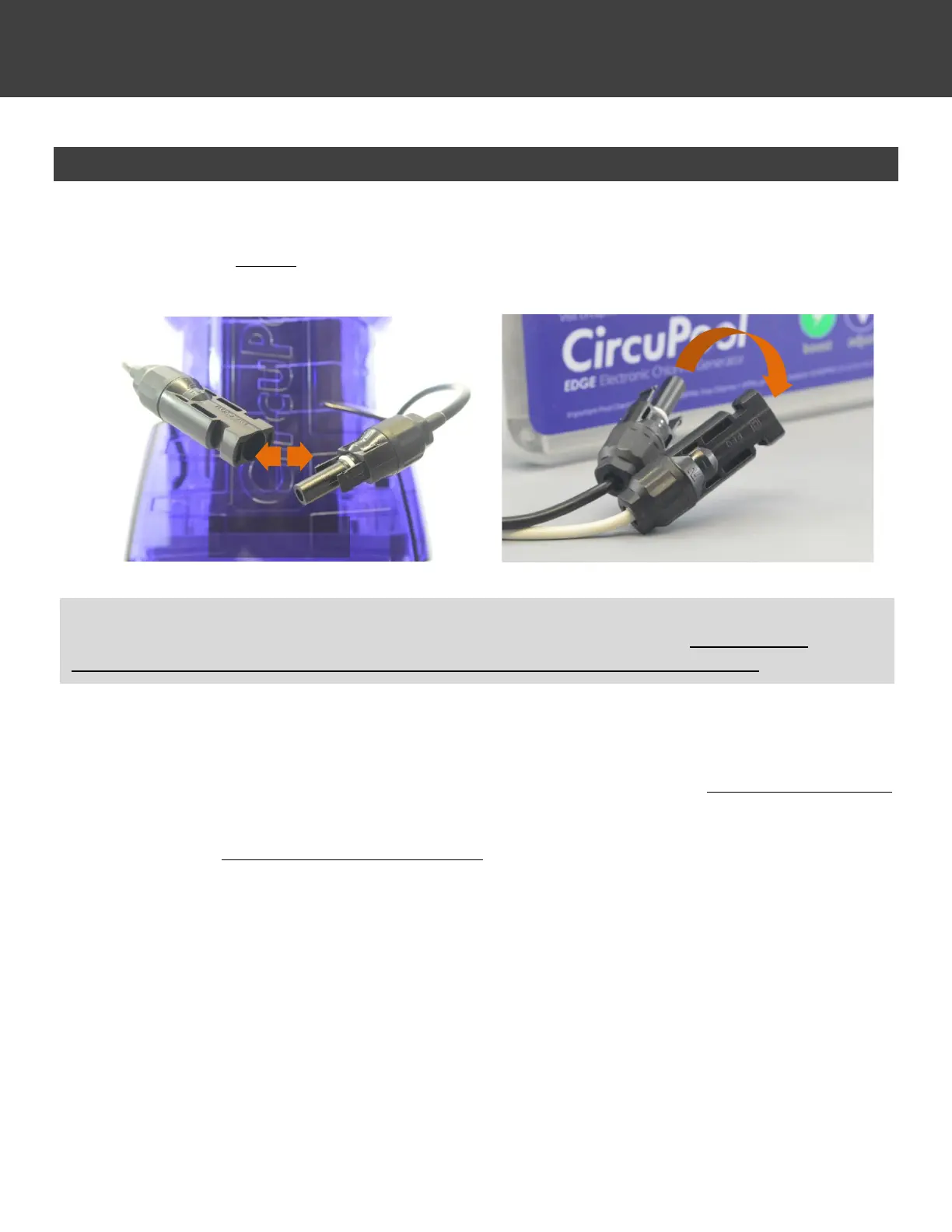

1. Disconnect the Control Module’s cable connectors from the cell, and then connect the Control Module cable’s white
and black connectors together (bypassing the cell and connecting the cable to itself, as shown). Leave the cell’s short
connectors disconnected.
2. Turn back on pump and the EDGE Control Module. WAIT 45 SECONDS. The System Error indicator light should come
on within a few moments.
• If all lights flash on the Control Module and it reboots, the electronics are functional and the Cell needs replacement.
• If the Control Module does not flash all lights and goes directly to System Error, there is an issue with the
electronics and the Control Module must be replaced.
3. Once this is determined, remove power immediately and disconnect the Control Module’s cable connectors from
each other in order to prevent damage to the unit. To protect all of the connections until the replacement part
arrives, connect the Cell and Control Module back together as normal.
IMPORTANT: the next step will determine the second part of the System Error 1 code. Once determined, power the
Control Module back off as soon as possible and disconnect the above cable connection. Do not leave the
connections to power supply together for too long, as it could damage the internal power supply.
To Next Page
