IMPORTANT: If you haven’t already done so, it is necessary to balance the pool's water chemistry before the EDGE
-
SERIES is powered
on and used. See pages 6 - 8 for more information.
The following are guidelines for the typical installation using 2” plumbing, which should be performed by a qualified individual. If 1.5”
plumbing is present, reducers can be used to adapt the system; be sure to note the changes to any listed measurements or dimensions
that the addition of reducers may cause. Your installation may vary depending on space available and your specific arrangement of
equipment. Double check each measurement before cutting.
Overview

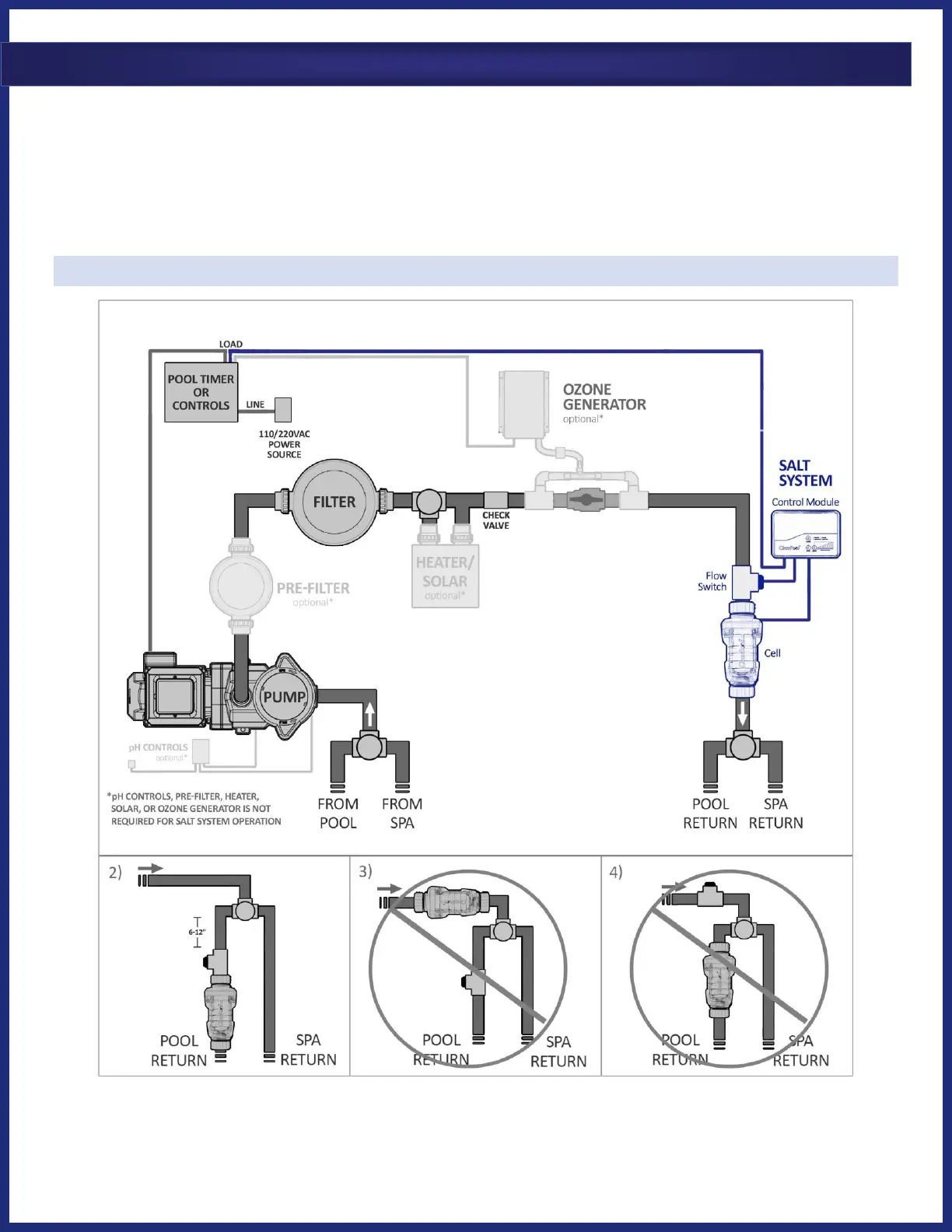

Above are common installation configurations (#1-2). Be sure to avoid any configuration that may potentially allow water
to pass through the Flow Switch, but not the cell (#3-4). The main components of the EDGE-Series are the Control Module,
Electrolytic Cell, and Flow Switch.
