Installing the Control Module
Mount the Control Module as close to the pump and filtration system as
possible. For safety concerns, do not install the Control Module within 10 feet of
the pool edges, and follow all applicable codes. Verify that the Cell and Flow
Switch cables can reach the Control Module from the section of pipe selected for
plumbing.
The Module is fully rated for outdoor use; common sense considerations such as
minimizing direct exposure to rain, sunlight, water runoff, and lawn sprinkler
systems will enhance longevity. As with most electronics, avoid placing the
controls above a heater or in tightly enclosed or insulated spaces to avoid a build-
up of excess heat.

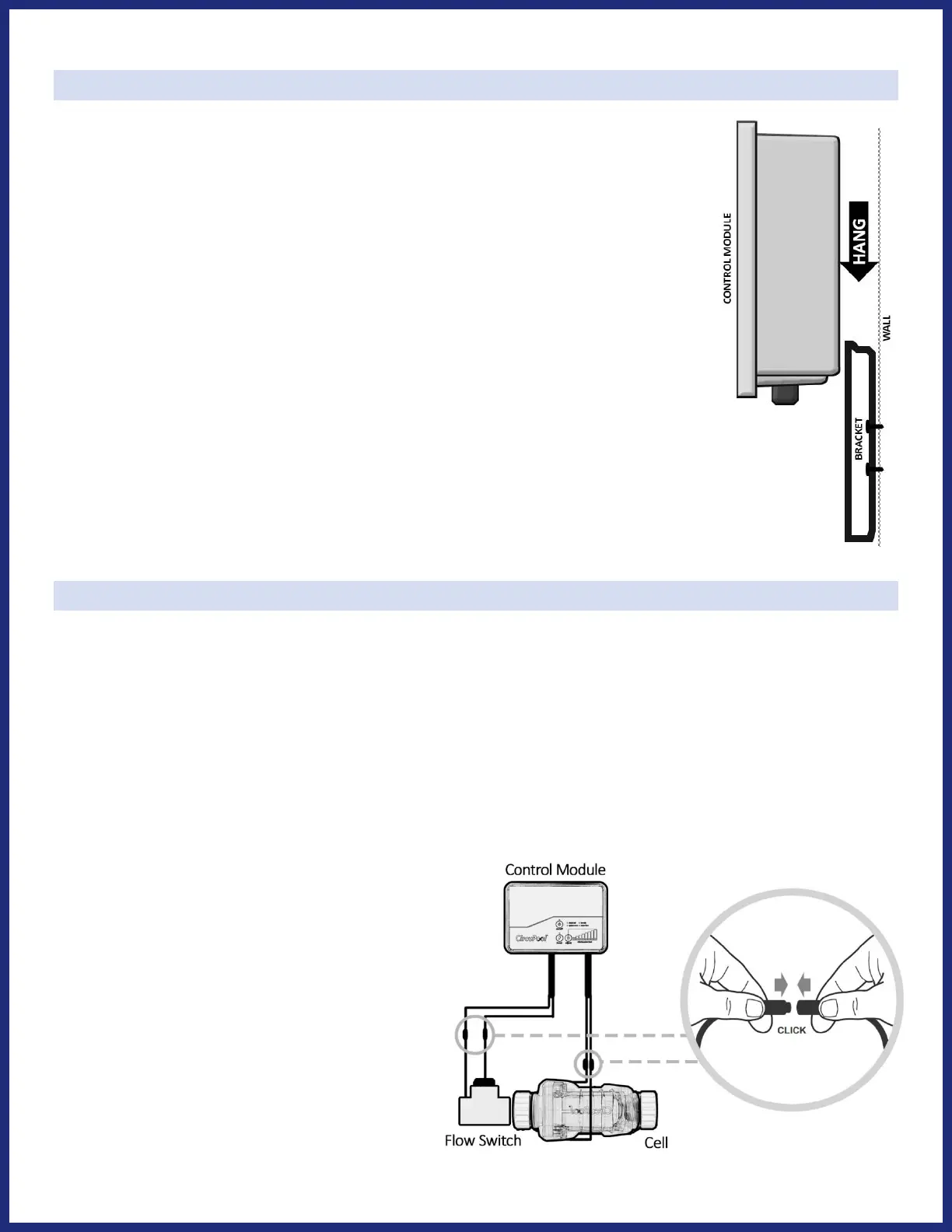

Using screws and anchor hardware kit (included), secure the Control Module's
mounting bracket at a comfortable level on a wall or vertical support, at least 3
feet above ground level. Hang Controls on bracket.
Connecting to Power
CAUTION: Power must be shut off at the circuit breaker before performing any wiring. Be sure to follow local and
NEC/CEC electrical codes. It is best that the outlet be wired parallel to the pump so both the unit and pump are working
simultaneously. The system has been designed to easily wire into typical in-ground pool systems. To provide safe
operation, the unit must be properly grounded. The Control Module uses a switch-mode power supply designed to
automatically accept either 120VAC or 220VAC.
Electrolytic Cell and Flow Switch Connections:
The Cell and Flow Switch cables have easy plug-in connectors, which attach easily to the Control Module. Refer to the
diagram below for the location of these connections. Carefully align each connector to avoid damage.
For the Cell, connect the two black wires from the
Control Module to the two Quick-Connects on the
sides of the Cell. Ensure the connections are
perfectly clean of any debris. The two cell cable
wires are interchangeable.
For the Flow/Temp. Sensor, Find the sensor cable
from the Power Supply with the 2 small connect
terminals and connect them to their respective
connectors; these cables can only be connected to
one way to their corresponding sensor connector.
