Wiring (Continued)
The Control Module comes with an un-terminated Power Cord (AC
Input) which is typically connected to an external timer, which will turn
the pump and Control Module on and off together. Have the Control

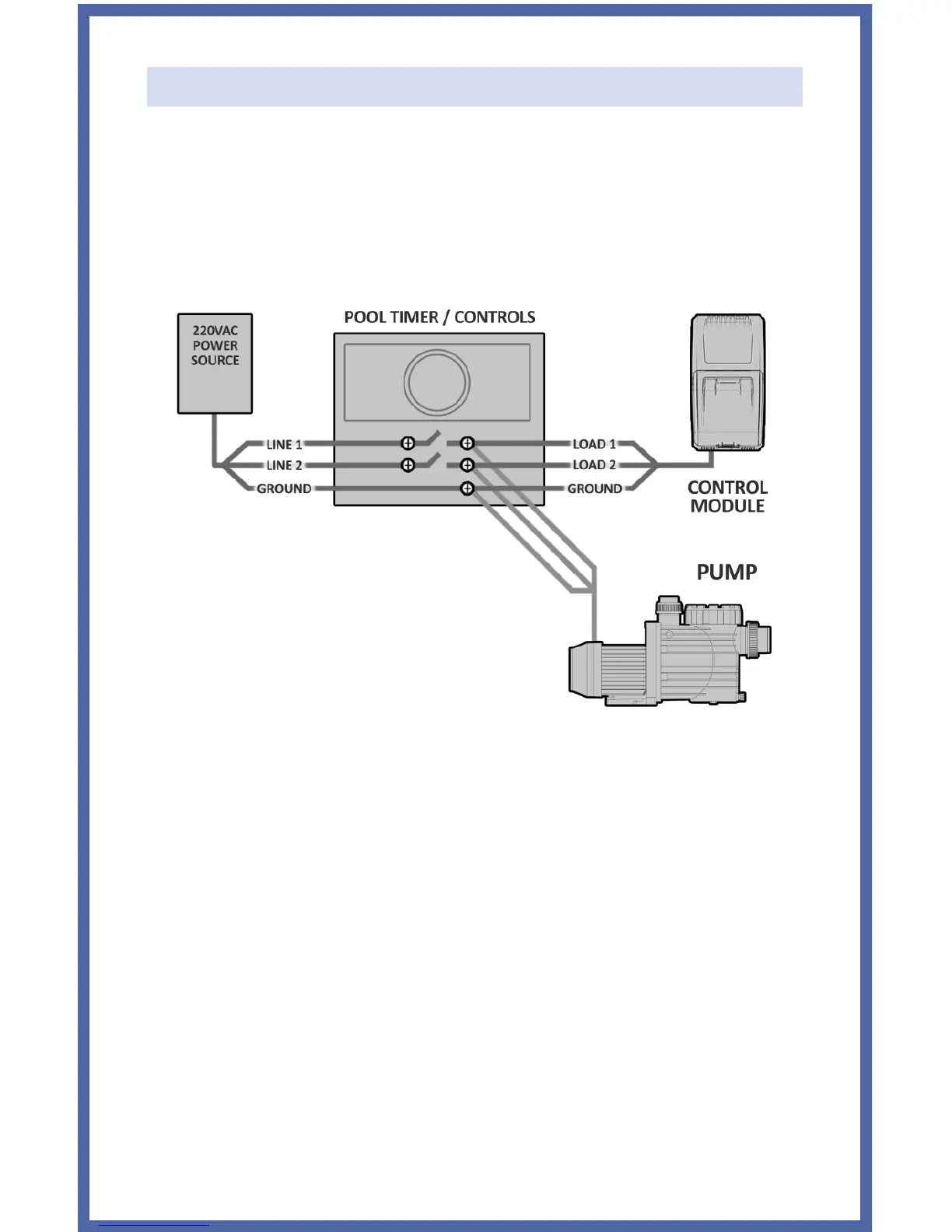

Module wired to the load side of the timer by a qualified person. See
the following diagram for typical wiring.
In some parts of the United States and Canada, the Control Module
must be connected to a circuit protected by a Class A ground fault
interrupter (GFI). Check local codes before connecting.
When used with variable-speed or other electronically controlled
pumps, you may wish to wire the Control Module directly to your power
source. This will allow the pump to determine when the Cell is
energized or dormant by activation of the Flow Switch.
At this point, this installation of your equipment is complete. If the
water has not yet been prepared, then you are ready to begin adding
salt and balancing your water chemistry. Turn the Control Module to
the Power Off mode until enough salt has been dissolved in the water.
