19

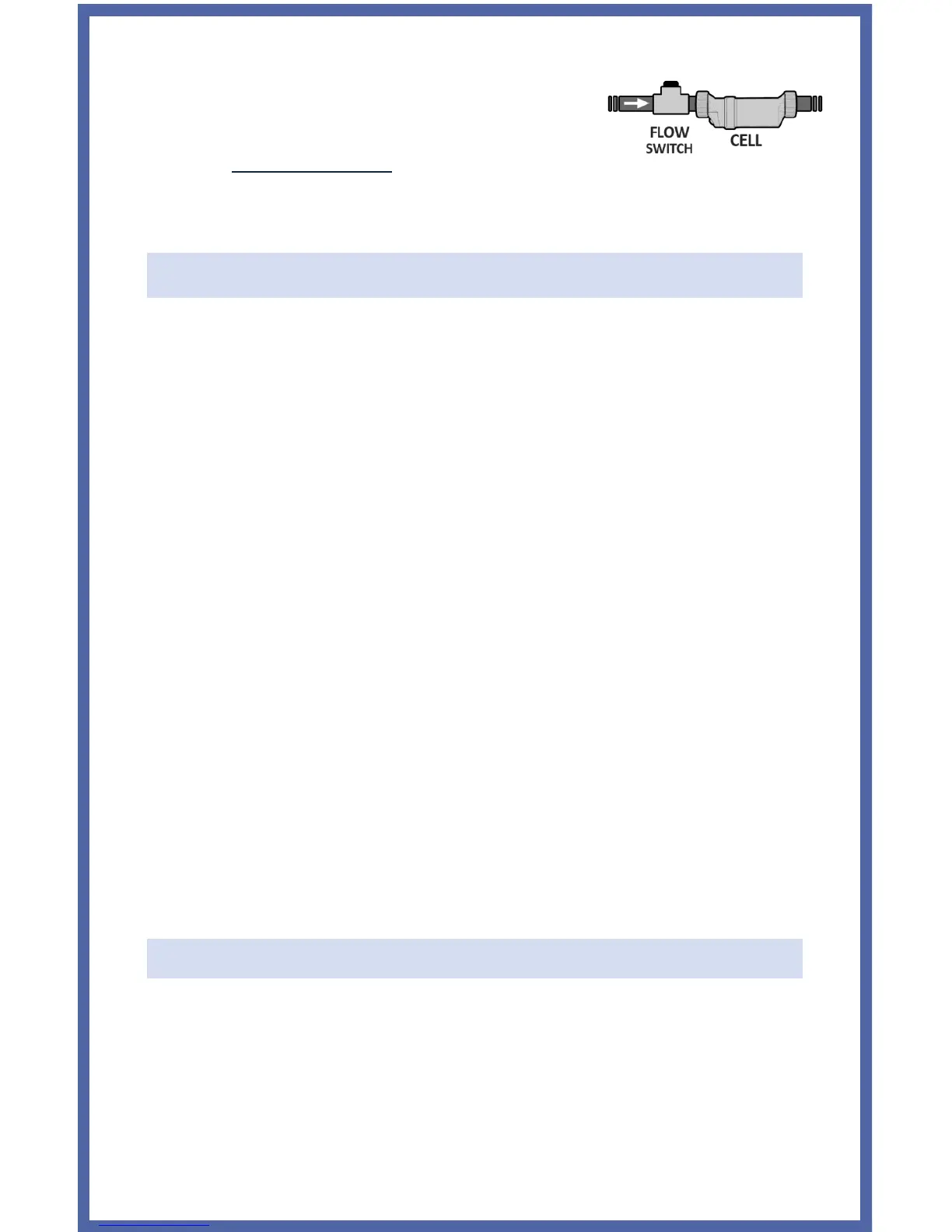

When using a Variable-Speed or Multi-Speed
pump on a low speed setting, or for general
circumstances where flow is less-than-adequate,
the cell must be inverted in order to ensure
adequate flow & efficient chlorine production.
Installing the Control Module
Mount the Control Module as close to the pump and filtration system as
possible. For safety concerns, do not install the Control Module within
10 feet of the pool edges, and follow all applicable codes. Verify that the
Cell and Flow Switch cables can reach the Control Module from the
section of pipe selected for plumbing.
Overview: Using screws, secure the Control Module's mounting bracket
at a comfortable level on a wall or vertical support, at least 3 feet above
ground level. Minimize direct exposure to rain, sunlight, water runoff,
and lawn sprinkler systems. As with most electronics, avoid placing the
controls in tightly enclosed or insulated spaces to avoid a build-up of
excess heat.
For operation, the Control Module may be wired in to the pump's
power source so that both turn on and off together, or energized
continuously for use with variable speed pumps (Flow switch will
control Cell power but lights will remain on). (see Wiring on page 20).
TIP: Do not operate unit until all salt is dissolved in pool water and
salinity is verified between 3000-4000 ppm.
Wiring
Power must be shut off at the circuit breaker before performing any
wiring. Be sure to follow local and NEC/CEC electrical codes. The
CircuPool Universal Series has been designed to easily wire into typical
in-ground pool systems. To provide safe operation, the unit must be
properly grounded and bonded.
