Cirrus DESIGN SR20 - Page 155

P/N 13999-002 Info Manual 6-11
Cirrus Design Section 6
SR20 Weight & Balance
Location Length Width Height Volume
Cabin 122” 49.3” 49.7 137 cu ft
Baggage
Compartment
36” 39.8” 38.5” 32 cu ft
Fuselage
Station
5.0"
21.0"
20.0"
BAGGAGE DOOR
OPENING
CABIN DOOR
OPENING
222
100
SR20_FM06_1019
32.0"
33.3"
20.0"
39.0"
33.4"
10.5"
FS
38.5"
25.0"
49.7"
16.0"
120 140 160 180
200
220 240
49.3"
39.8"

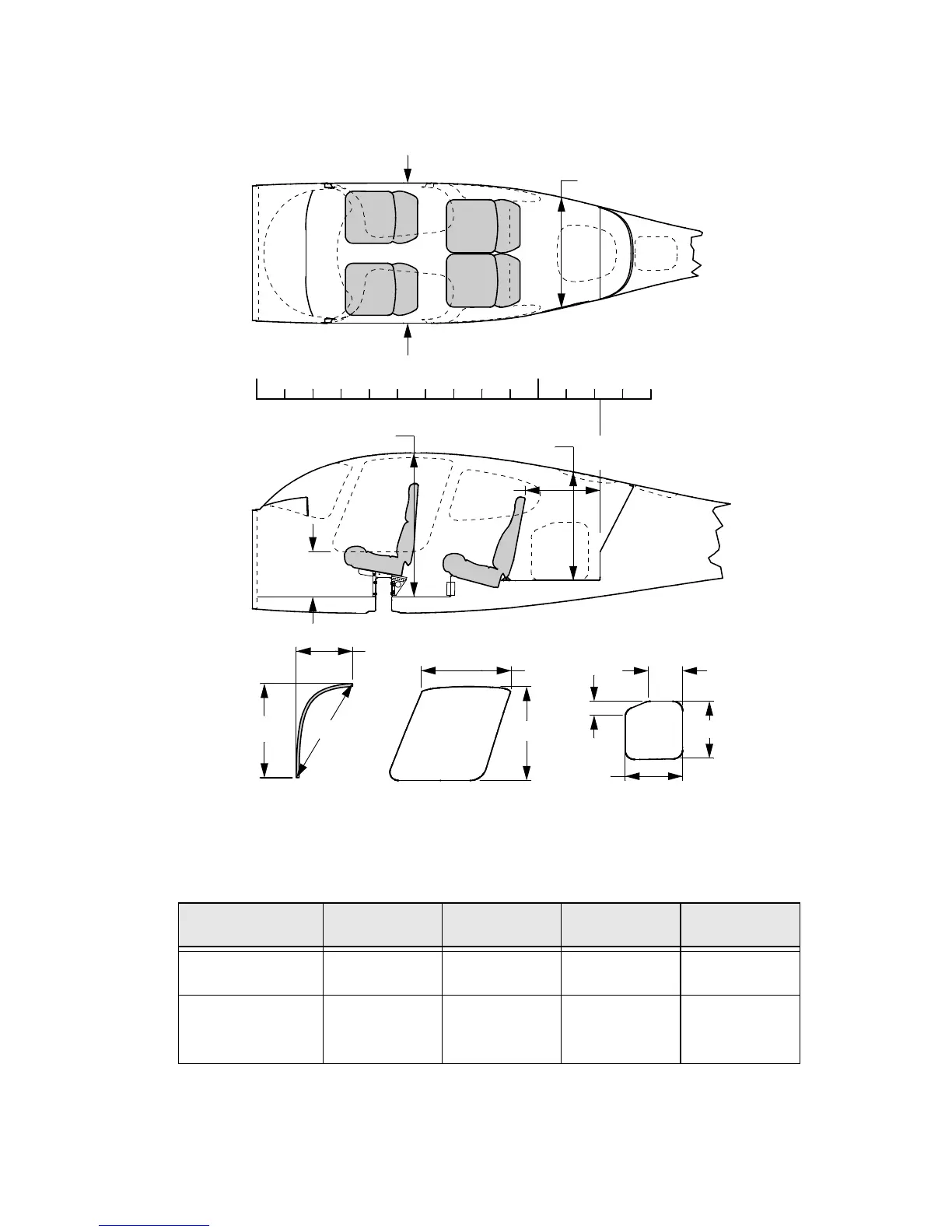

Figure 6-5
Airplane Interior Dimensions
September 2011
