SR20 General
11"23'
11"
9'
SR20_FM01_1002

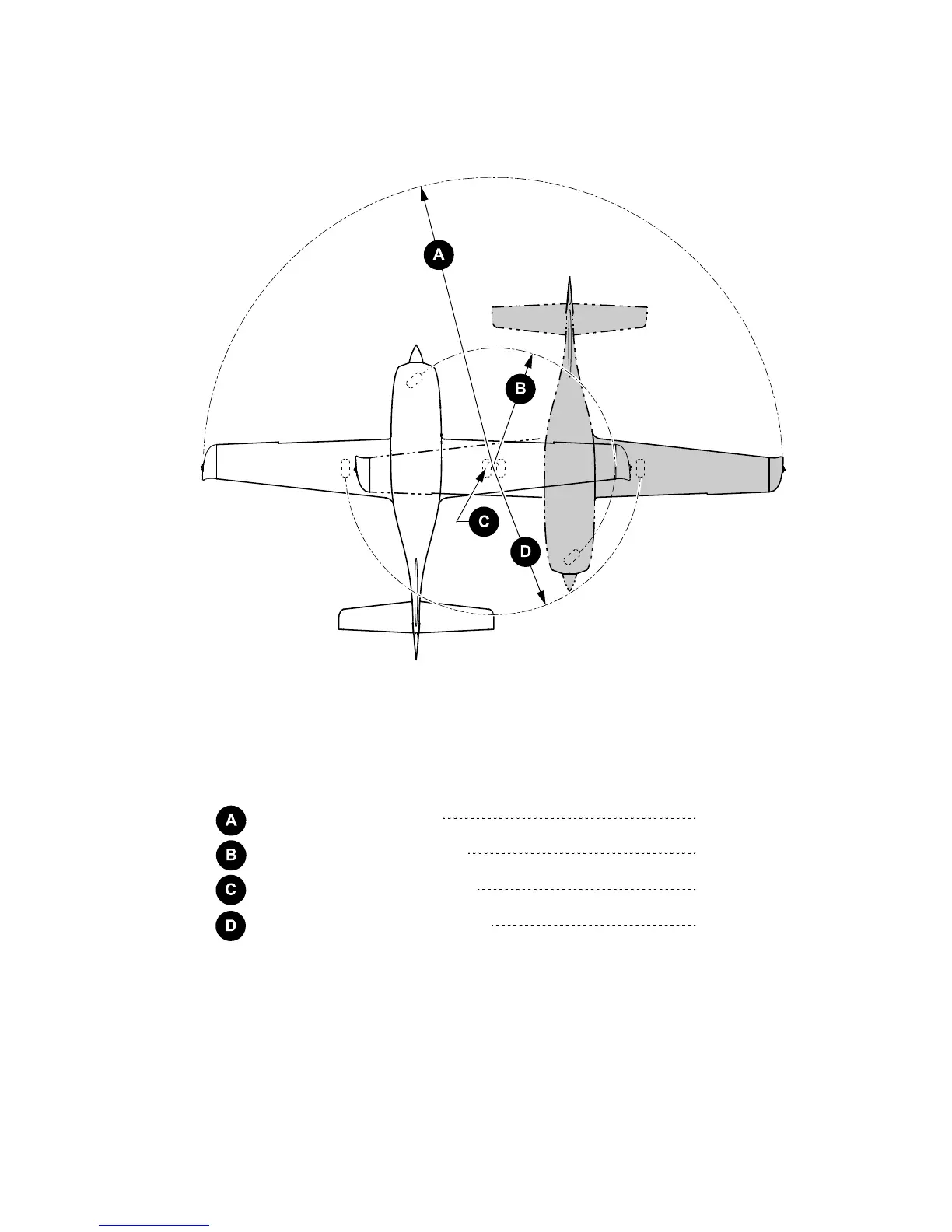

GROUND TURNING CLEARANCE
TURNING RADII ARE CALCULATED USING ONE BRAKE AND
PARTIAL POWER. ACTUAL TURNING RADIUS MAY VARY AS
MUCH AS THREE FEET.
-RADIUS FOR WING TIP
-RADIUS FOR INSIDE GEAR
6"
-RADIUS FOR OUTSIDE GEAR
-RADIUS FOR NOSE GEAR
2" 12'
Figure 1-2
Turning Radius
