Wall Mount using DIN Rail Brackets
The router is shipped with DIN Rail brackets that are to be secured on the bottom side of the chassis. Your
chassis installation must allow unrestricted airflow for chassis cooling.
Wall mount using DIN Rail brackets is applicable only for C111x.
Note
To attach the DIN Rail brackets to the router chassis, use the PHMS screws and the plastic spacers provided for each
bracket.

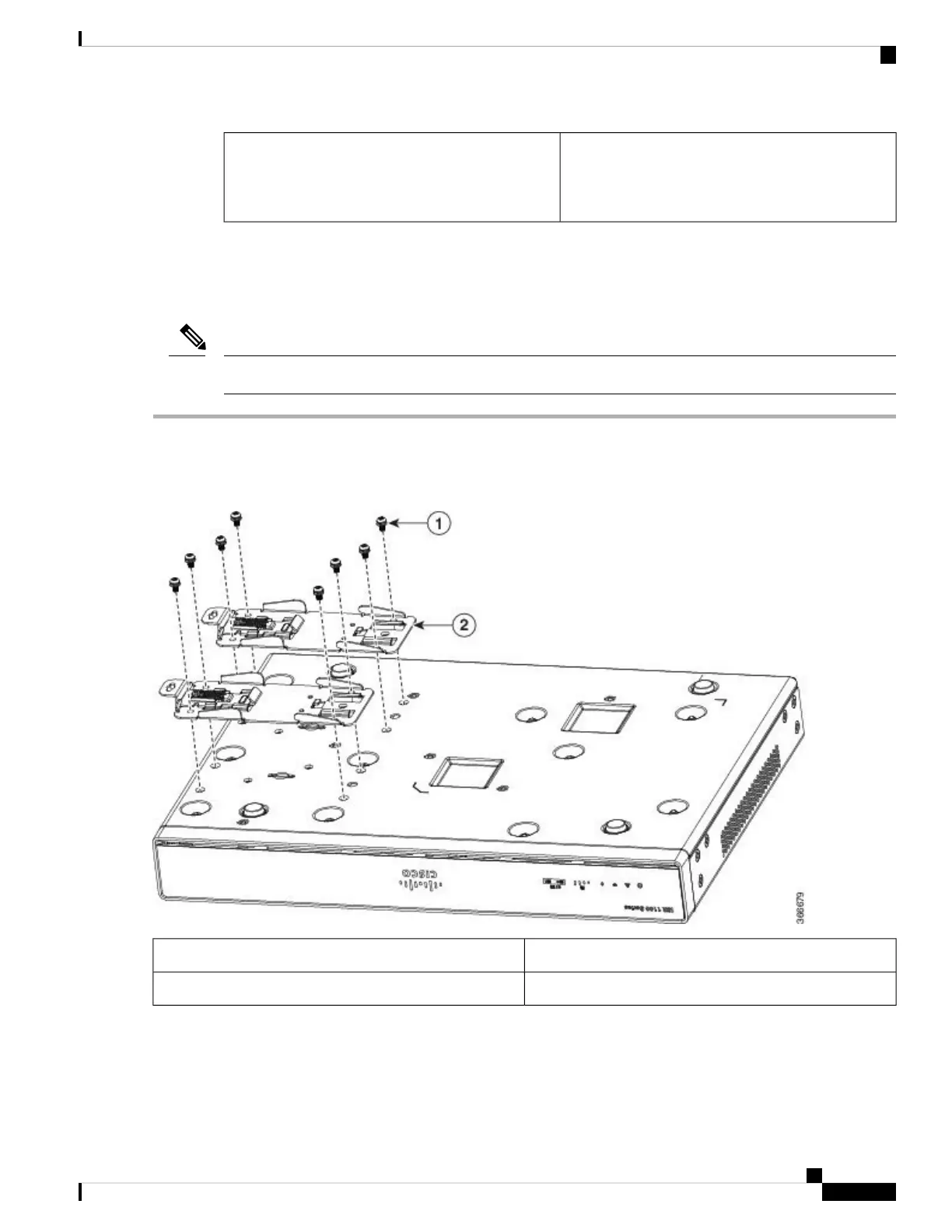

Figure 16: DIN Rail Bracket Installation - C111x and C111X
Screws1
DIN Rail Brackets2
Install and Connect the Router
15
Install and Connect the Router
Wall Mount using DIN Rail Brackets
