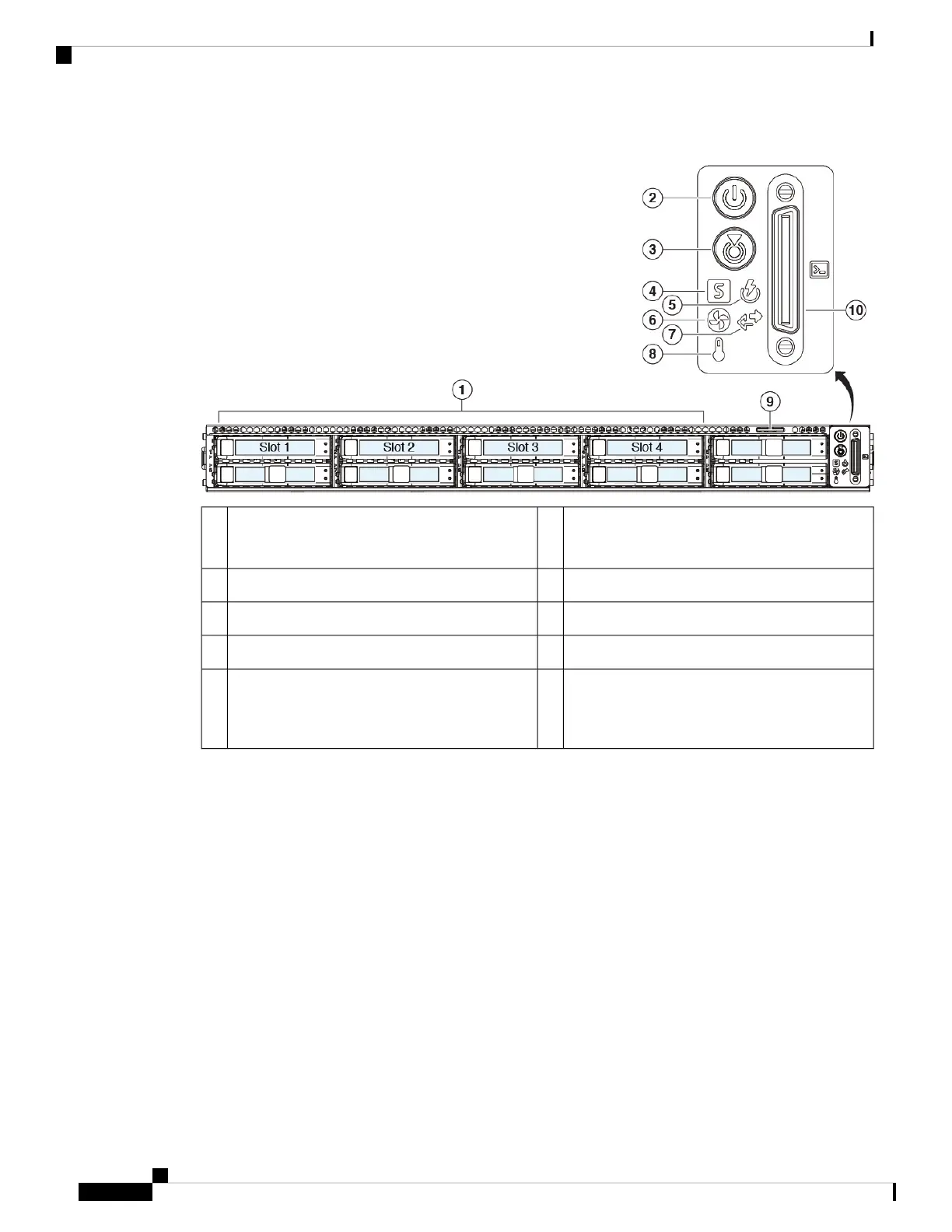

Figure 5: FMC 2600 Front Panel
Power button/power status LED2Drive bays
Supports four SAS HDDs in slots 1 through 4
1
System status LED4Unit identification button/LED3
Fan status LED6Power supply status LED5
Temperature status LED8Network link activity LED7
KVM port
Not supported; use the VGA and USB keyboard
ports instead.
10Pullout asset card9
The following figure shows the front panel features and disk-drive configuration for the FMC 4600. See Front
Panel LEDs, on page 9 for a description of the LEDs.
Cisco Firepower Management Center 1600, 2600, and 4600 Hardware Installation Guide
8
Overview
Front Panel
