Cisco 1600 Hardware Installation Guide

eth2 management interface
(Optional) 10-Gigabit Ethernet SFP+ support
SFP-10G-SR and SFP-10G-LR are qualified for
use on the FMC.
12Threaded holes for dual-hole grounding lug11
Riser handle
Not supported
14eth3 management interface
(Optional) 10-Gigabit Ethernet SFP+ support
SFP-10G-SR and SFP-10G-LR are qualified for
use on the FMC.
13

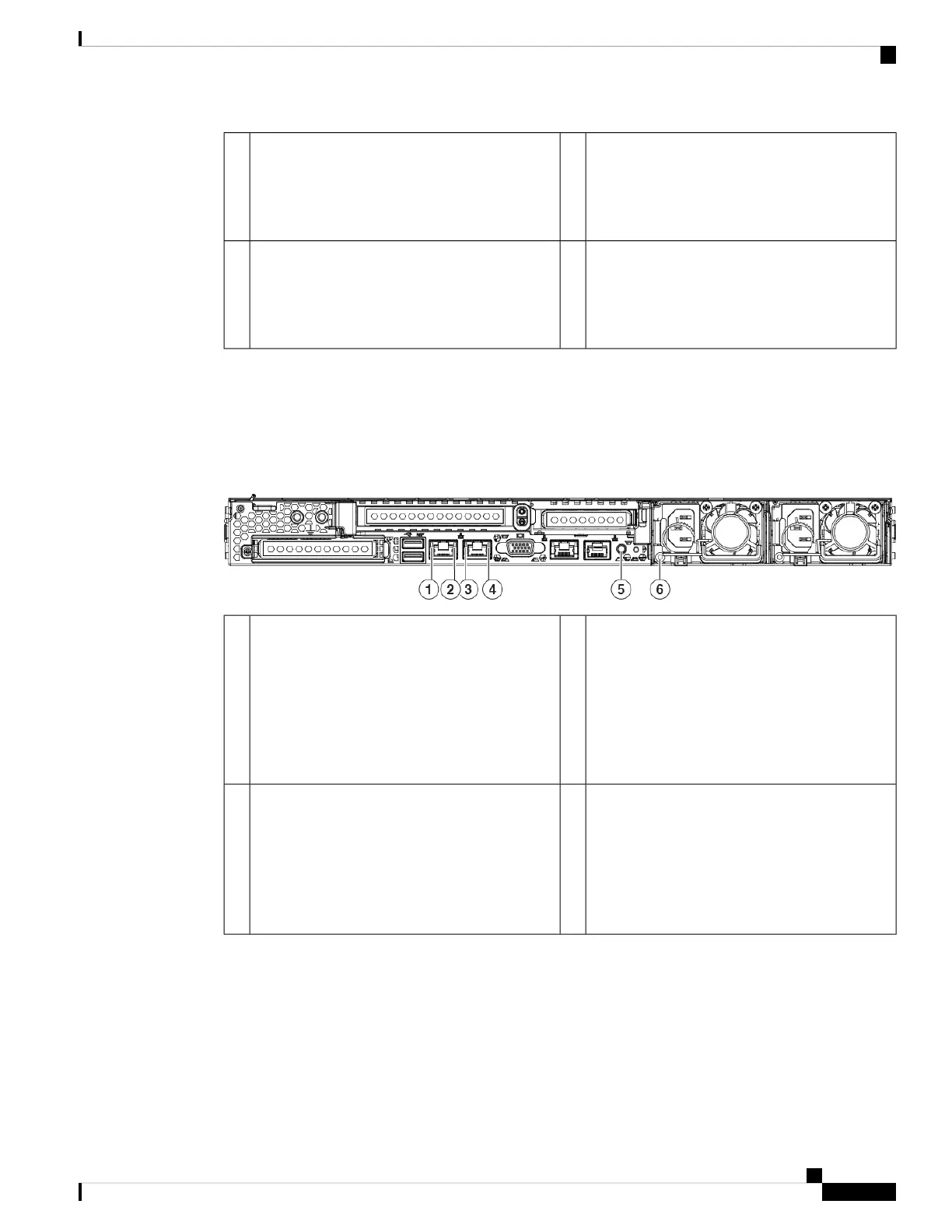

Rear Panel LEDs
The following figure shows the rear panel LEDs and describes their states.
Figure 9: Rear Panel LEDs and Their States
100-Mbps/1-Gbps/10-Gbps Ethernet link status
(speed on both LAN1 and LAN2):
• Off—No link is present.
• Green—Link is active.
• Green, flashing—Traffic is present on the
active link.
2100-Mbps/1-Gbps/10-Gbps Ethernet link (speed
on both LAN1 and LAN2):
• Off—Link speed is 100 Mbps.
• Amber—Link speed is 1 Gbps.
• Green—Link speed is 10 Gbps.
1
1-Gbps Ethernet dedicated management link:
• Off—No link is present.
• Amber—Link is active.
• Green, flashing—Traffic is present on the
active link.
41-Gbps Ethernet dedicated management link:
• Off—Link speed is 10 Mbps.
• Amber—Link speed is 100 Gbps.
• Green—Link speed is 1 Gbps.
3
Cisco Firepower Management Center 1600, 2600, and 4600 Hardware Installation Guide
13
Overview
Rear Panel LEDs

Cisco 1600 Specifications

General

Type	Router
Connectivity Technology	Wired
Network / Transport Protocol	TCP/IP, IPX/SPX, AppleTalk
Form Factor	Desktop
Power Source	AC adapter
Operating System	Cisco IOS
Routing Protocols	RIP, IGRP
Flash Memory	8 MB
DRAM	16 MB
Data Link Protocol	Ethernet, Fast Ethernet
Remote Management Protocol	SNMP, Telnet
Status Indicators	Power
Features	Firewall protection, DHCP support, NAT support, VPN support
RAM	16 MB
Data Transfer Rate	10 Mbps
Network Technology	Ethernet
