Cisco 1600 - Front Panel Leds

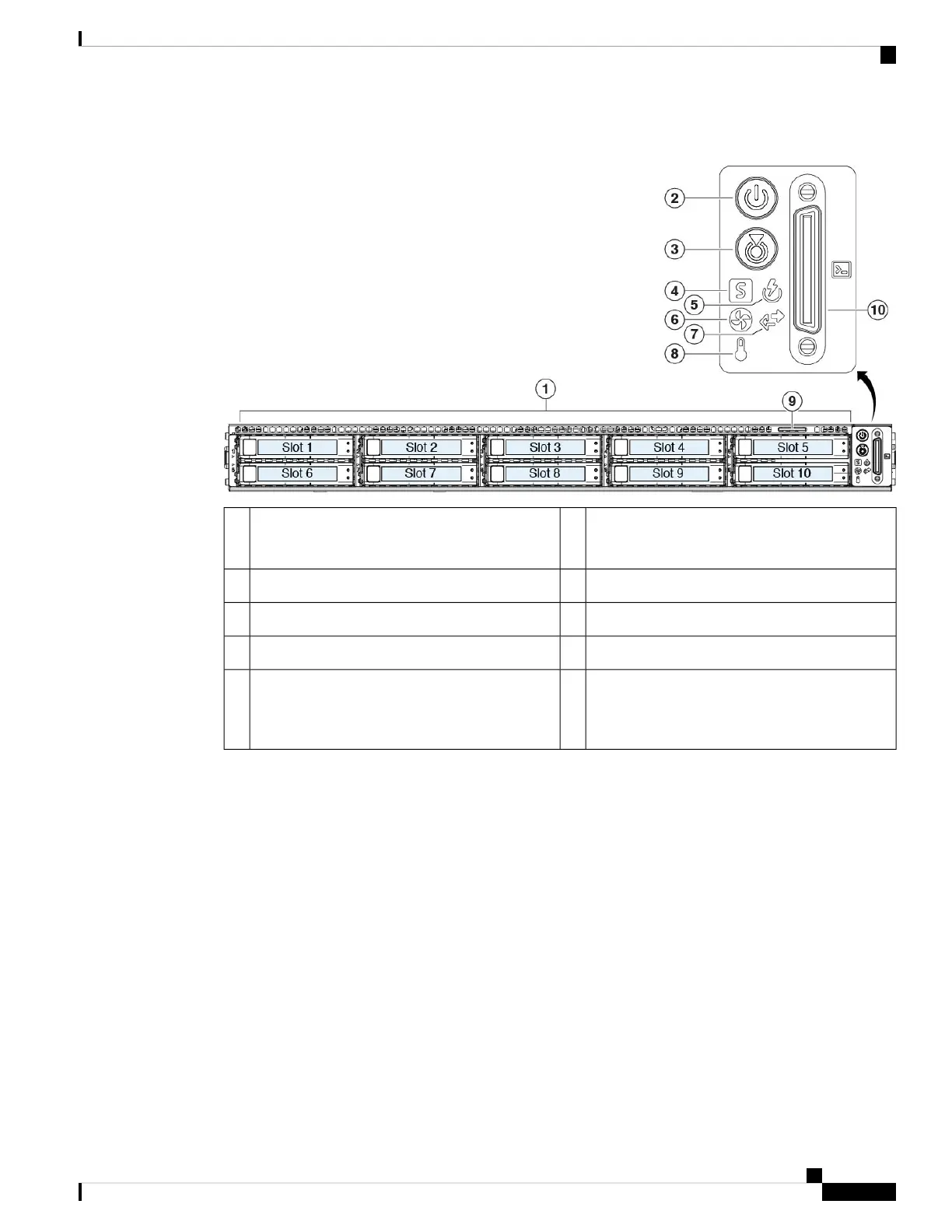

Figure 6: FMC 4600 Front Panel
Power button/power status LED2Drive bays
Supports ten SAS HDDs in slots 1 through 6
1
System status LED4Unit identification button/LED3
Fan status LED6Power supply status LED5
Temperature status LED8Network link activity LED7
KVM port
Not supported; use the VGA and USB keyboard
ports instead.
10Pullout asset card9
Front Panel LEDs
The following figure shows the front panel LEDs and describes their states.
