Cisco 3000 Series

Installing
in Rack
Step
Slide the chassis slides into the slide assemblies in the rack
Slowly
and
firmly push
the
chassis all the
way
into the rack You will hear the slides click into
place
If the
chassis
slides do not fit in the rack
slides
do
not
force
them
Slight
variations in rack width and
hardware
sometimes
can cause
the
actual rack width to
be
slightly
greater
than 19
inches
If the
spacing
between the
slides
attached to the chassis
is
narrower
than the
spacing
of the
slides
in
the
rack
you
can install the
spacers
provided
in the kit to widen the
space
between the two chassis slides
Step
If
spacers
are
necessary
install
them between the brackets and small
slides
as shown in
Figure
3-8
Up
to
eight spacers four
per
side
can be installed

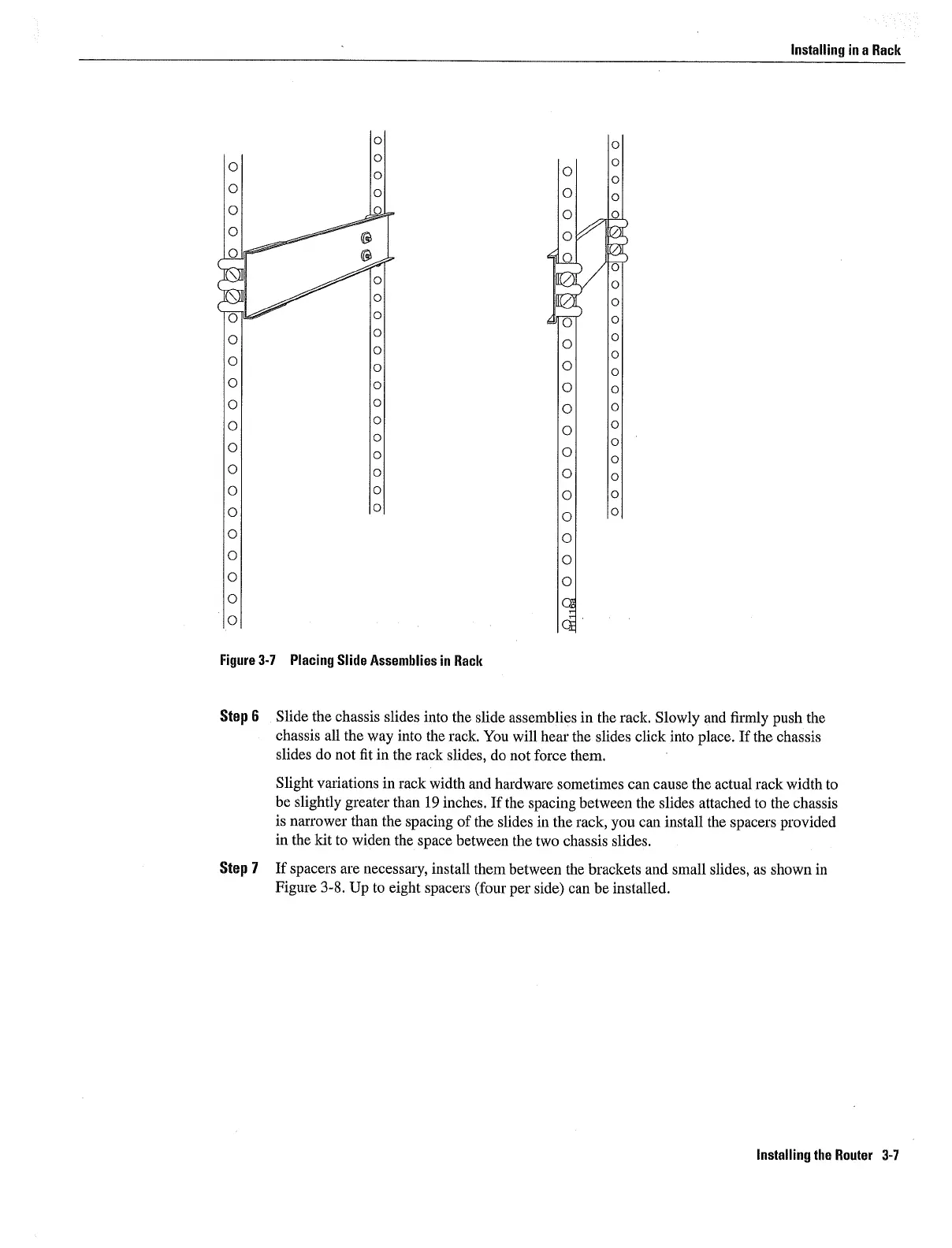

Figure
37
Placing
Slide Assemblies in
Rack
Installing
the Router 3-7
