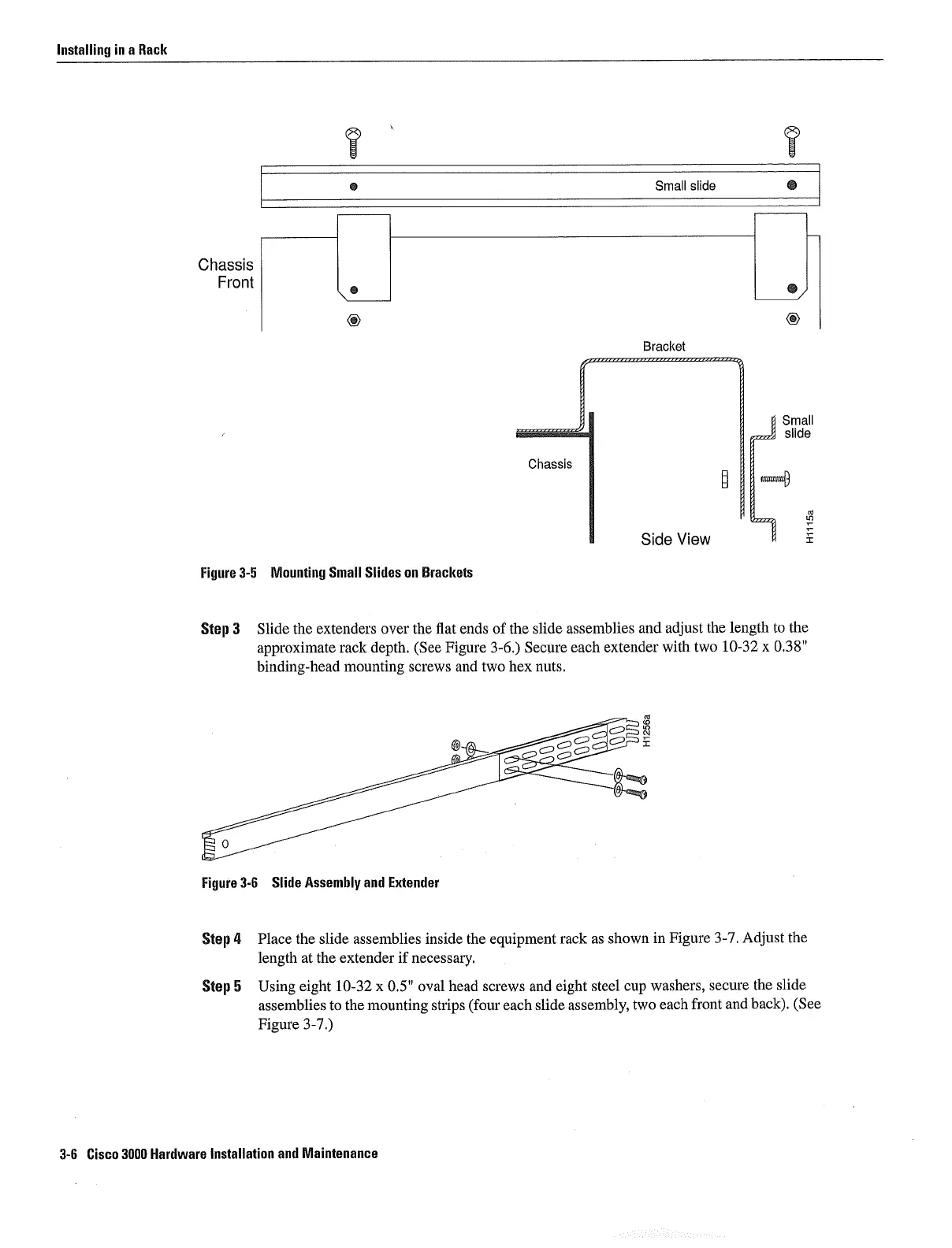

Cisco 3000 Series

Installing
in Rack
Chassis
Front
Small
slide
Small
slide
Figure
3-5
Mounting
Small Slides
on
Brackets
Step
Slide the extenders over the flat ends of the slide assemblies
and
adjust
the
length
to the
approximate
rack
depth See Figure 3-6
Secure each
extender with two 10-32 0.38
binding-head mounting
screws and two hex nuts
Step
Place the slide assemblies inside the
equipment
rack as
shown in
Figure
3-7
Adjust
the
length
at the extender if
necessary
Step
Using eight
10-32 0.5 oval head
screws
and
eight
steel
cup
washers secure
the slide
assemblies to the
mounting strips four
each slide
assembly
two
each front and
back See
Figure
3-7
Bracket
Chassis
Side View
Figure
3-6 Slide
Assembly
and Extender
3-6 Cisco
3000
Hardware
Installation and Maintenance
