Cisco 3000 Series

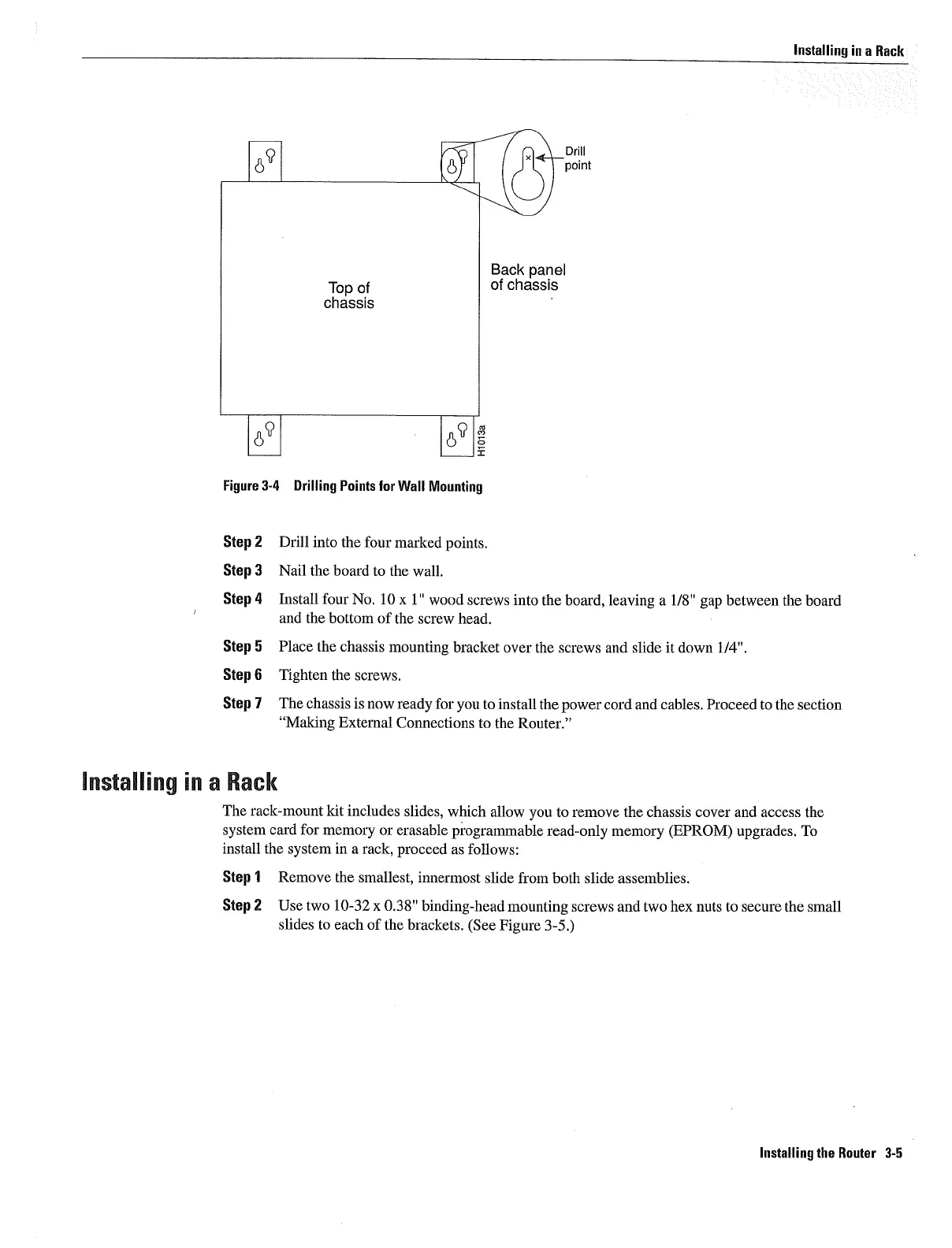

Figure
3-4
Drilling
Points for Wall
Mounting
Step
Drill into the four marked
points
Step
Nail the board to the wall
Installing
in Rack
Step
Install four No lOx wood
screws into the
board leaving
1/8
gap
between the board
and the bottom of the
screw head
Step
Place the chassis
mounting
bracket
over
the
screws
and slide it down 1/4
Step Tighten
the
screws
Step
The chassis is
now
ready
for
you
to install the
power
cord and cables Proceed to the section
Making
External
Connections to the Router
llnstafling
Rack
The
rack-mount kit includes
slides
which allow
you
to remove
the chassis
cover
and
access
the
system
card
for
memoiy
or erasable
piogrammable
read-only memory
EPROM
upgrades
To
install
the
system
in
rack proceed as
follows
Step
Remove the
smallest
innermost slide from both slide assemblies
Step
Use two 10-32 0.38
binding-head
mounting
screws
and
two
hex
nuts to secure
the small
slides to each of the brackets
See
Figure 3-5
Installing
the Router 3-5
