Cisco 3000 Series

Jumper Settings
Using
the orientation
of
Figure 5-6
jumper
location Wi
see Figure 5-6 ships
with its left two
pins
jumpered together
At location
W3
jumper
the
two
left
pins
to
permit writing
to Flash
memory
or
jumper
the
two
right pins
to disable
writing
to Flash
memory
At location
W4
the two
pins
are
jumpered
to the
corresponding
size of the boot ROM
memory
______
_________________
II
Jill
_______
NVRAM
_______
LJ
FW2

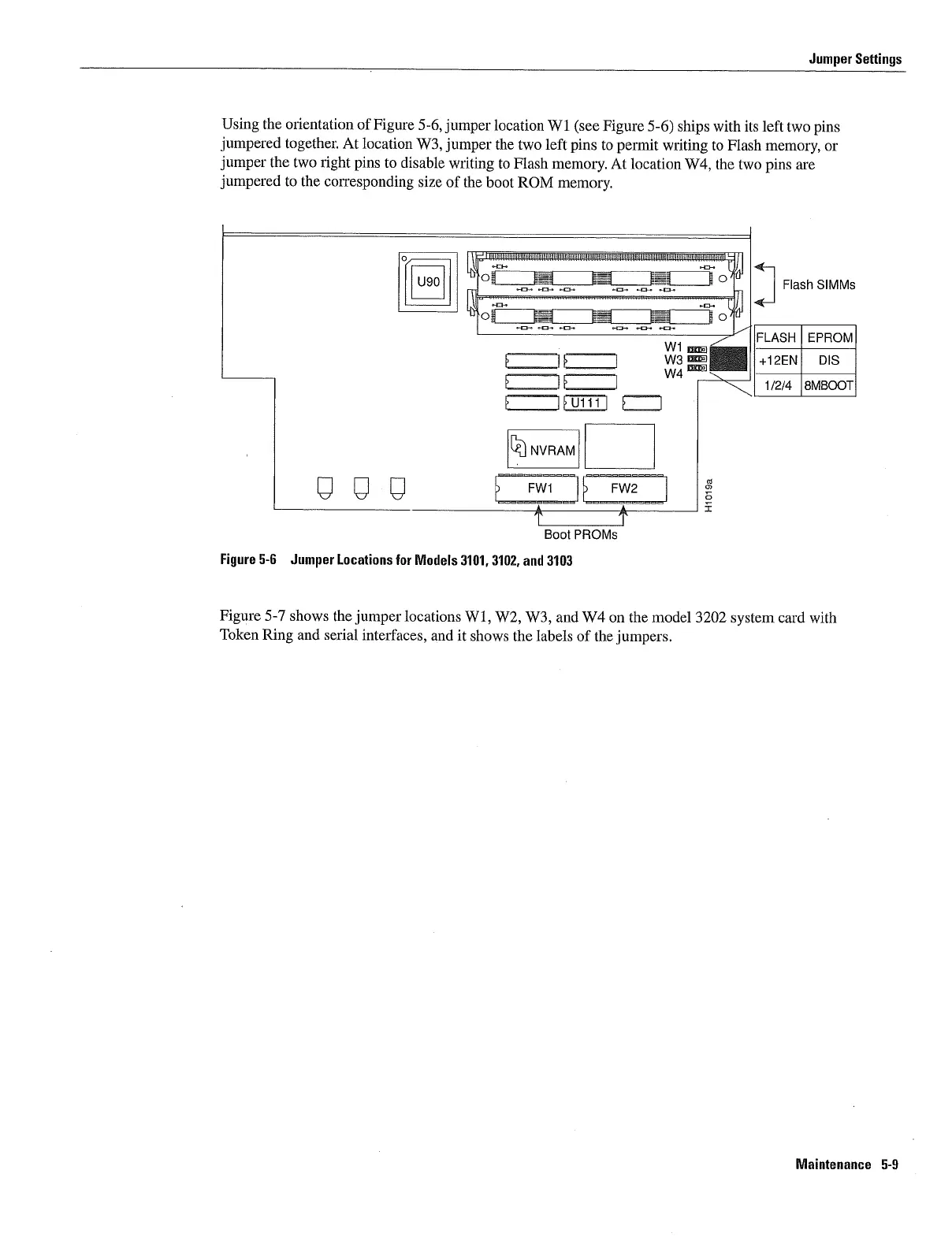

Figure
5-6
Jumper
Locations for Models
3101 3102 and 3103
Figure
5-7 shows the
jumper
locations
Wi W2 W3
and W4
on
the model
3202
system
card with
Token
Ring
and serial
interfaces
and it shows the labels of the
jumpers
0FIashSIMMs
FLASH EPROM
Wi
W3____
12EN DIS
W4
_1/2/4
8MBOOT
Boot PROMs
Maintenance 5-9
