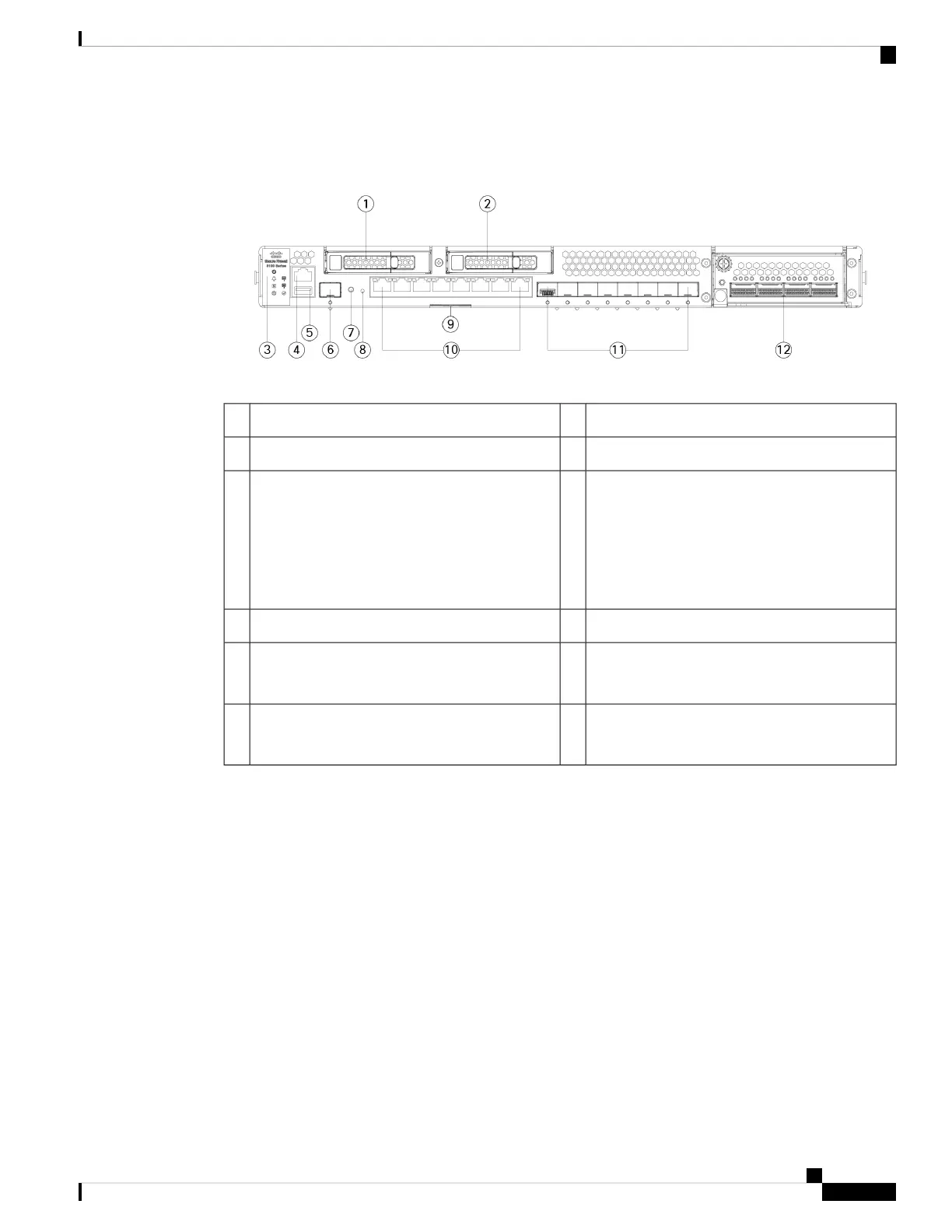

Figure 5: Secure Firewall 3100 Front Panel
SSD-22SSD-11
RJ-45 console port4System LEDs3
Gigabit Ethernet management port:
• Secure Firewall Threat
Defense—Management 0 (also referred to
as Management 1/1 and Diagnostic 1/1)
• ASA—Management 1/1
6Type A USB 3.1 port5
Recessed factory reset button8Reset button LED7
Fixed copper ports (NM-1)
Copper ports named 1/1 through 1/8 left to right
10Pullout asset card with chassis serial number,
getting started guide QR code, and LTP QR code
9
Network module (NM-2)12Fixed fiber ports (NM-1)
Fiber ports named 1/9 through 1/16 left to right
11
Management Port
The Secure Firewall 3100 chassis management port is a 1/10-Gb fiber SFP port.
RJ-45 Console Port
The Secure Firewall 3100 chassis has a standard RJ-45 console port. You can use the CLI to configure
your 3100 through the RJ-45 serial console port by using a terminal server or a terminal emulation
program on a computer.
The RJ-45 (8P8C) port supports RS-232 signaling to an internal UART controller. The console port does
not have any hardware flow control, and does not support a remote dial-in modem. The baud rate is 9600.
You can use the standard cable found in your accessory kit to convert the RJ-45 to DB-9 if necessary.
Type A USB 3.1 Port
You can use the external Type A USB port to attach a data-storage device. The external USB drive
identifier is usb:. The Type A USB port supports the following:
• Hot swapping
Cisco Secure Firewall 3100 Series Hardware Installation Guide
9
Overview
Front Panel
