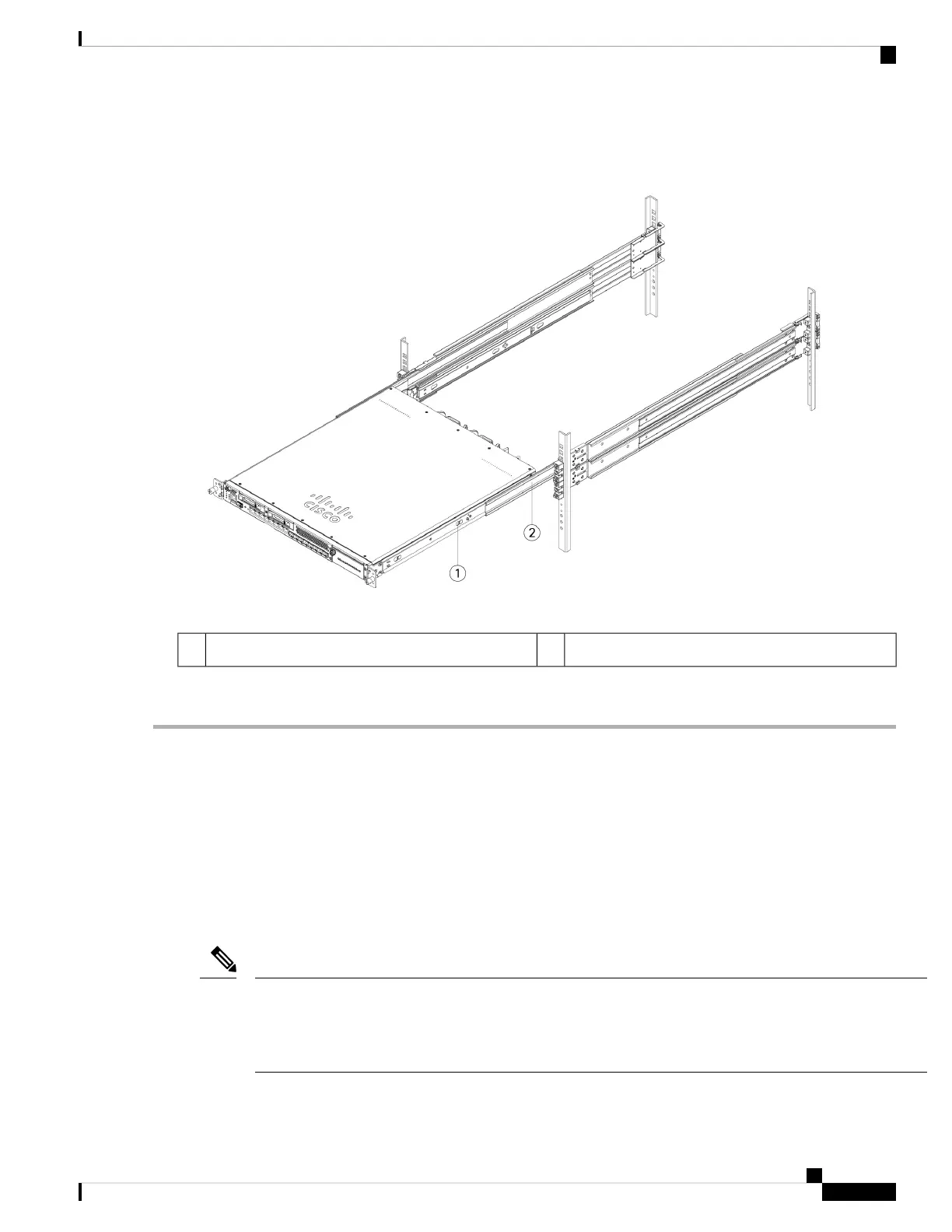

Figure 43: Inner Rail Release Clip
Inner rail attached to chassis2Inner rail release clip1
Step 7 Use the captive screws on the front of the mounting brackets to fully secure the chassis to the rack.
What to do next
• See Ground the Chassis, on page 61 for the procedure to ground the Secure Firewall 3100.
• Install the cables according to your software configuration as described in the Cisco Secure Firewall
3100 Getting Started Guide.
Ground the Chassis
Grounding the chassis is required, even if the rack is already grounded. A grounding pad with two threaded
M4 holes is provided on the chassis for attaching a grounding lug. The grounding lug must be Nationally
Recognized Testing Laboratory (NRTL)-listed. In addition, a copper conductor (wires) must be used and the
copper conductor must comply with National Electrical Code (NEC) code for ampacity.
Note
Cisco Secure Firewall 3100 Series Hardware Installation Guide
61
Rack-Mount the Chassis
Ground the Chassis
