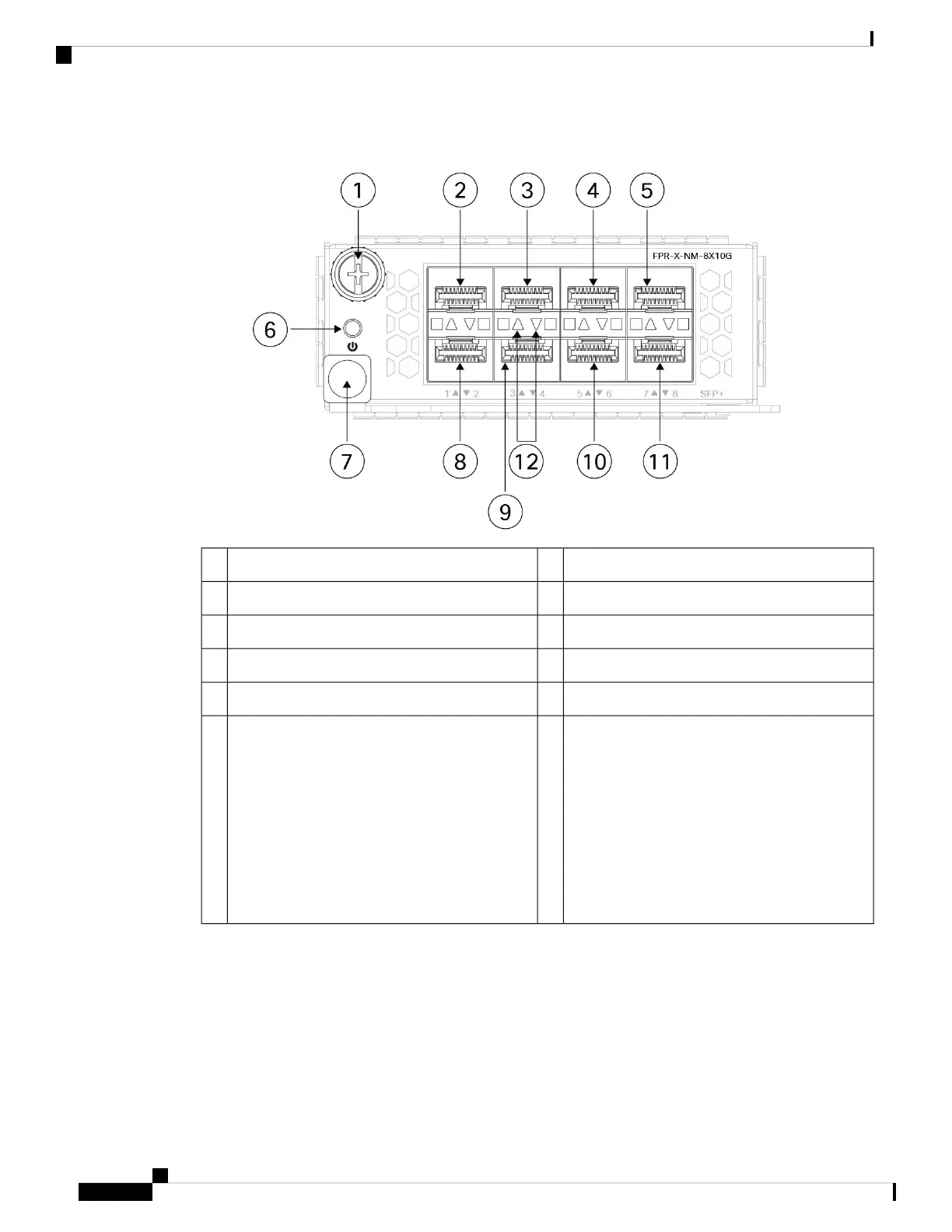

Figure 8: 8-Port 1/10-Gb (FPR3K-XNM-8X10G) and 8-Port 1/10/25-Gb (FPR3K-XNM-8X25G) Network Module
Ethernet 2/12Captive screw1
Ethernet 2/54Ethernet 2/33
Power on LED6Ethernet 2/75
Ethernet 2/28Ejector handle7
Ethernet 2/610Ethernet 2/49
Network activity LEDs
The up arrows represent the top ports and the
down arrows represent the bottom ports.
• Off—No SFP.
• Amber—No link or network failure.
• Green—Link up.
• Green, flashing—Network activity.
12Ethernet 2/811
For More Information
• See 4-Port 40-Gb Network Module, on page 17 for a description of the 40-Gb network module.
• See 6-Port 1-Gb SX/10-Gb SR/10-Gb LR/25-Gb SR/25-Gb LR Network Module with Hardware
Bypass , on page 21 for a description of the 1/10/25-Gb network module.
• See 8-Port 10/100/1000Base-T Network Module with Hardware Bypass, on page 19 for a description
of the 10/100/1000Base-T network module.
Cisco Secure Firewall 3100 Series Hardware Installation Guide
16
Overview
8-Port 1/10/25-Gb Network Module
