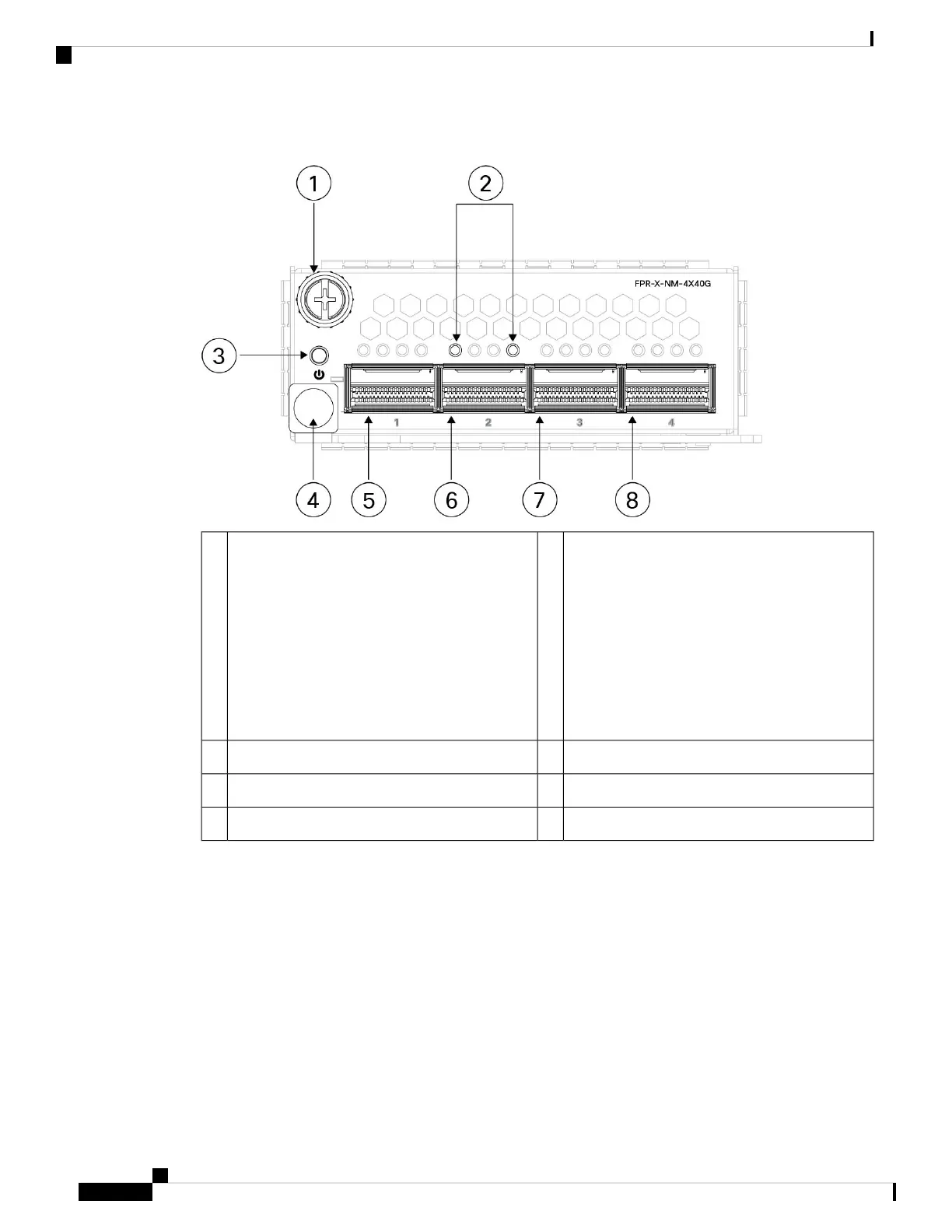

Figure 9: 4-Port 40-Gb Network Module (FPR3K-XNM-4X40G)
Network activity LEDs
The up arrows represent the top ports and the
down arrows represent the bottom ports.
• Off—No SFP.
• Amber—No link or a network failure.
• Green—Link is up.
• Green, flashing—Network activity.
2Captive screw1
Ejector handle4Power on LED3
Ethernet 2/26Ethernet 2/15
Ethernet 2/48Ethernet 2/37
For More Information
• See 8-Port 1/10/25-Gb Network Module, on page 15 for a description of the 1/10/25-Gb network
module.
• See 6-Port 1-Gb SX/10-Gb SR/10-Gb LR/25-Gb SR/25-Gb LR Network Module with Hardware
Bypass , on page 21 for a description of the 1/10/25-Gb network module.
• See 8-Port 10/100/1000Base-T Network Module with Hardware Bypass, on page 19 for a description
of the 1-Gb network module.
• See Install, Remove, and Replace the Network Module, on page 65 for the procedure for removing
and replacing network modules.
