The hardware and the system support hot swapping if you are replacing a network module with the same type
of network module. If you replace the 8-port 10/100/1000Base-T network module with another supported
network module, you must reboot the chassis so that the new network module is recognized. See the
configuration guide for your operating system for the detailed procedures for managing network modules.
Note
Make sure you have the correct firmware package and software version installed to support this network
module. See the configuration guide for your software for the procedures for updating the firmware package
and verifying the software version. See the Cisco Secure Firewall Threat Defense Compatibility Guide and
the Cisco Secure Firewall ASA Compatibility guide, which provide Cisco software and hardware compatibility,
including operating system and hosting environment requirements, for each supported version.
Note
The following figure shows the front panel of the 8-port 10/100/1000Base-T network module.

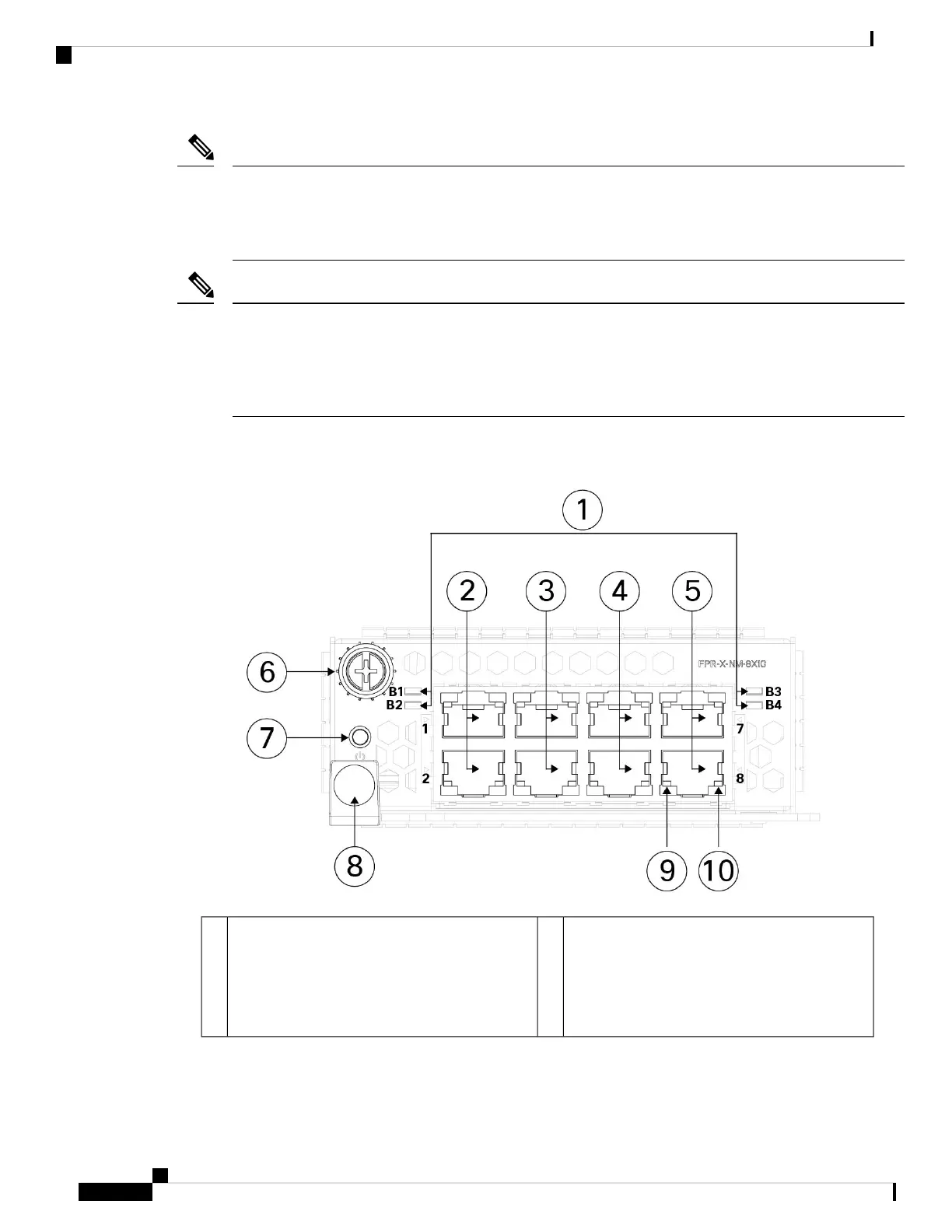

Figure 10: 8-Port 10/100/1000Base-T Network Module (FPR3K-XNM-8X1GF)
Ethernet 2/1 and Ethernet 2/2
Ports 1 and 2 are paired together to form a
hardware bypass pair. LED B1 applies to this
paired port.
2Bypass LEDs B1 through B4
• Green—In standby mode.
• Amber, flashing—Port is in hardware bypass
mode, failure event.
1
Cisco Secure Firewall 3100 Series Hardware Installation Guide
20
Overview
8-Port 10/100/1000Base-T Network Module with Hardware Bypass
