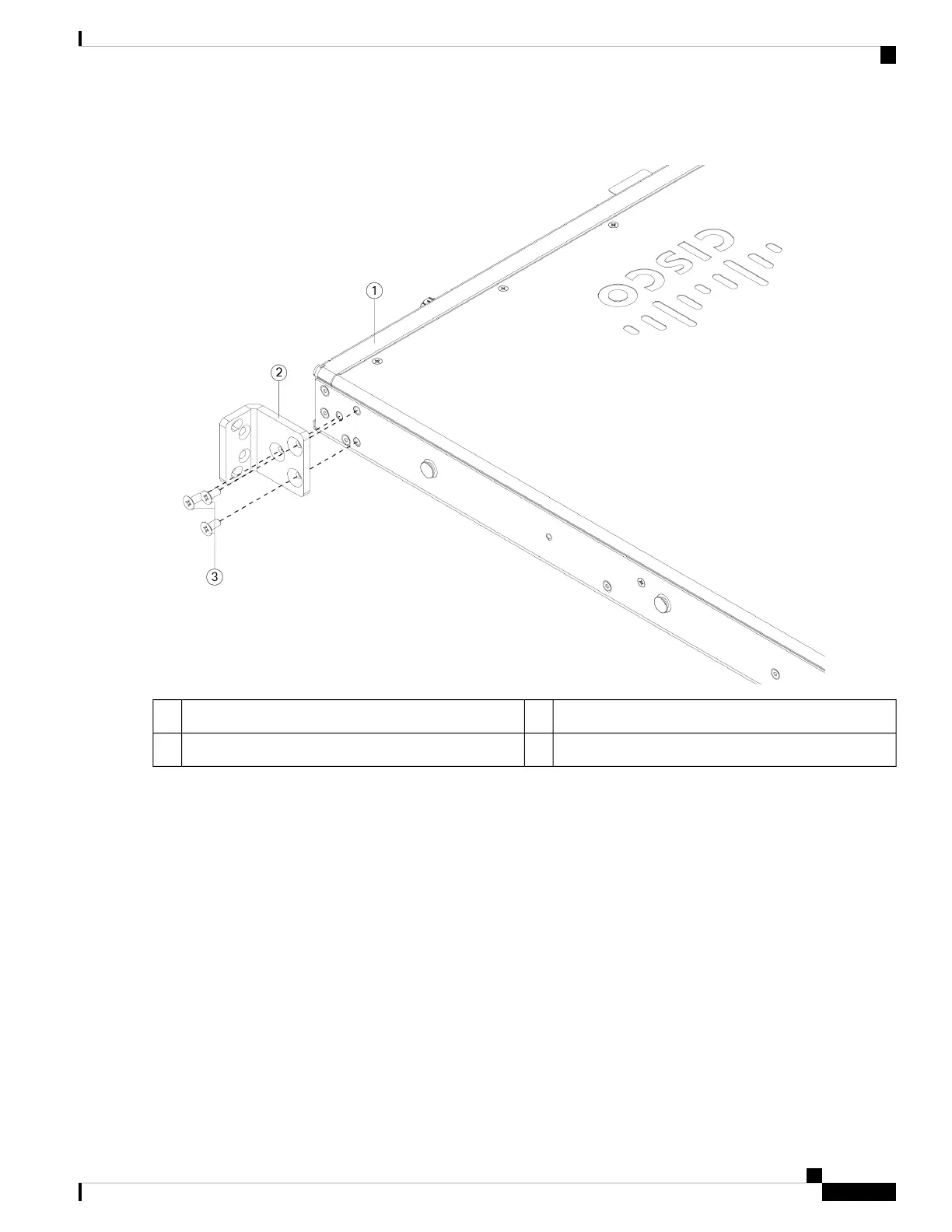

Figure 37: Attach the Rack-Mount Bracket to the Side of the Chassis
Rack-mount bracket2Chassis1
8-32 x 0.375-inch Phillips screws (three per side)3
Step 2 (Optional) Attach the cable management bracket to the rack-mount bracket:
a) Install the cable management screws into the rack-mount bracket.
Cisco Secure Firewall 3100 Series Hardware Installation Guide
53
Rack-Mount the Chassis
Rack-Mount the Chassis Using Brackets
