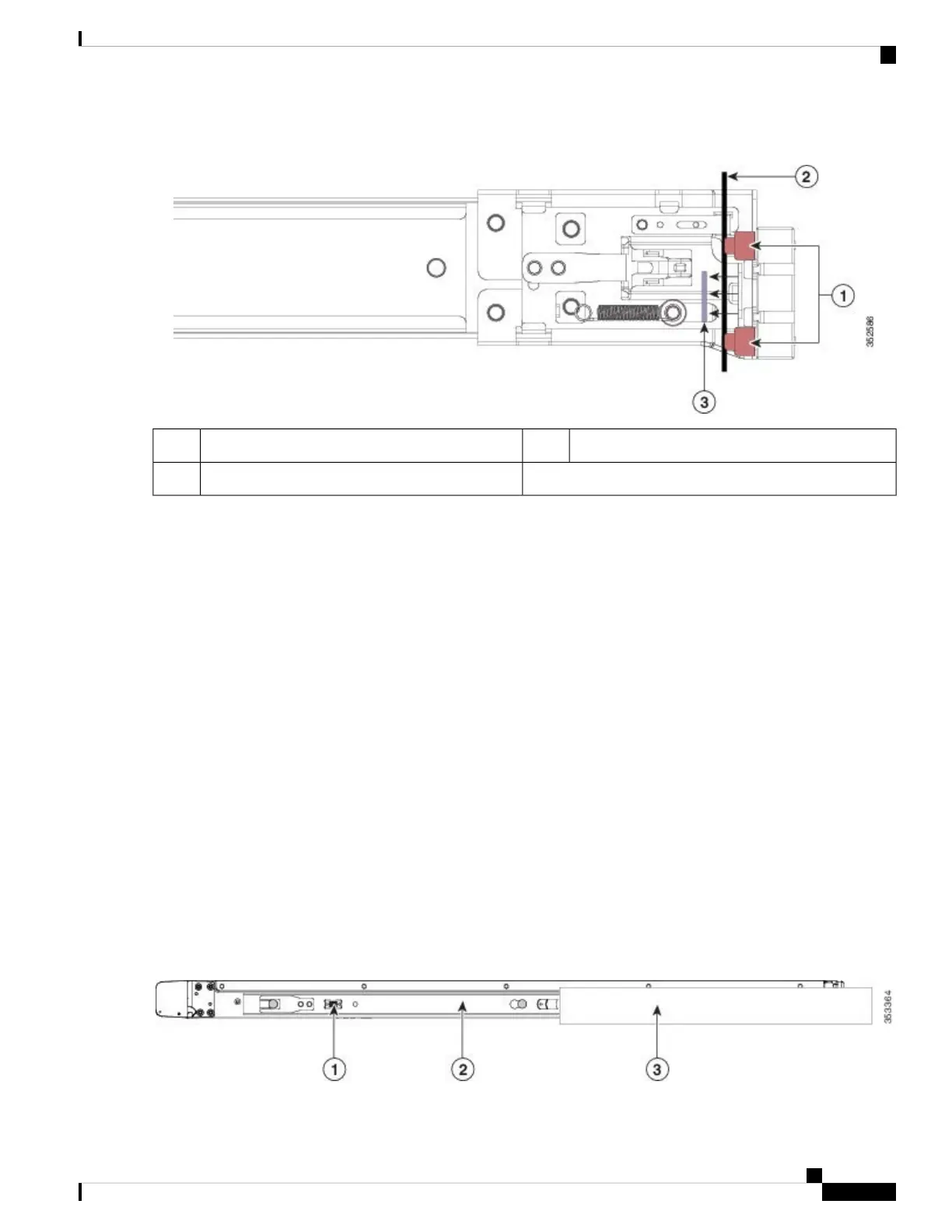

Figure 6: Front Securing Mechanism, Inside of Front End
Securing plate shown pulled back to open position3Front mounting pegs1
Rack post2
Step 3 Install the outer slide rails into the rack:
a) Align one slide-rail assembly front end with the front rack-post holes that you want to use. The slide rail front-end
wraps around the outside of the rack post and the mounting pegs enter the rack-post holes from the outside-front (see
the figure above).
The rack post must be between the mounting pegs and the open securing plate.
Note
b) Push the mounting pegs into the rack-post holes from the outside-front.
c) Press the securing plate release button, marked PUSH. The spring-loaded securing plate closes to lock the pegs in
place.
d) Adjust the slide-rail length, and then push the rear mounting pegs into the corresponding rear rack-post holes. The
slide rail must be level front-to-rear.
The rear mounting pegs enter the rear rack-post holes from the inside of the rack post.
e) Attach the second slide-rail assembly to the opposite side of the rack. Ensure that the two slide-rail assemblies are at
the same height with each other and are level front-to-back.
f) Pull the inner slide rails on each assembly out toward the rack front until they hit the internal stops and lock in place.
Step 4 Insert the server into the slide rails:
This server can weigh up to 67 pounds (59 kilograms) when fully loaded with components. We recommend
that you use a minimum of two people or a mechanical lift when lifting the server. Attempting this procedure
alone could result in personal injury or equipment damage.
Caution
Figure 7: Inner Rail Release Clip
Cisco Secure Network Server 3500 Series Appliance Hardware Installation Guide
17
Install the Cisco SNS 3515 and Cisco SNS 3595 Hardware Appliances
Install the Side Rails
