Chapter 3 Installing the Router
Installing the Chassis

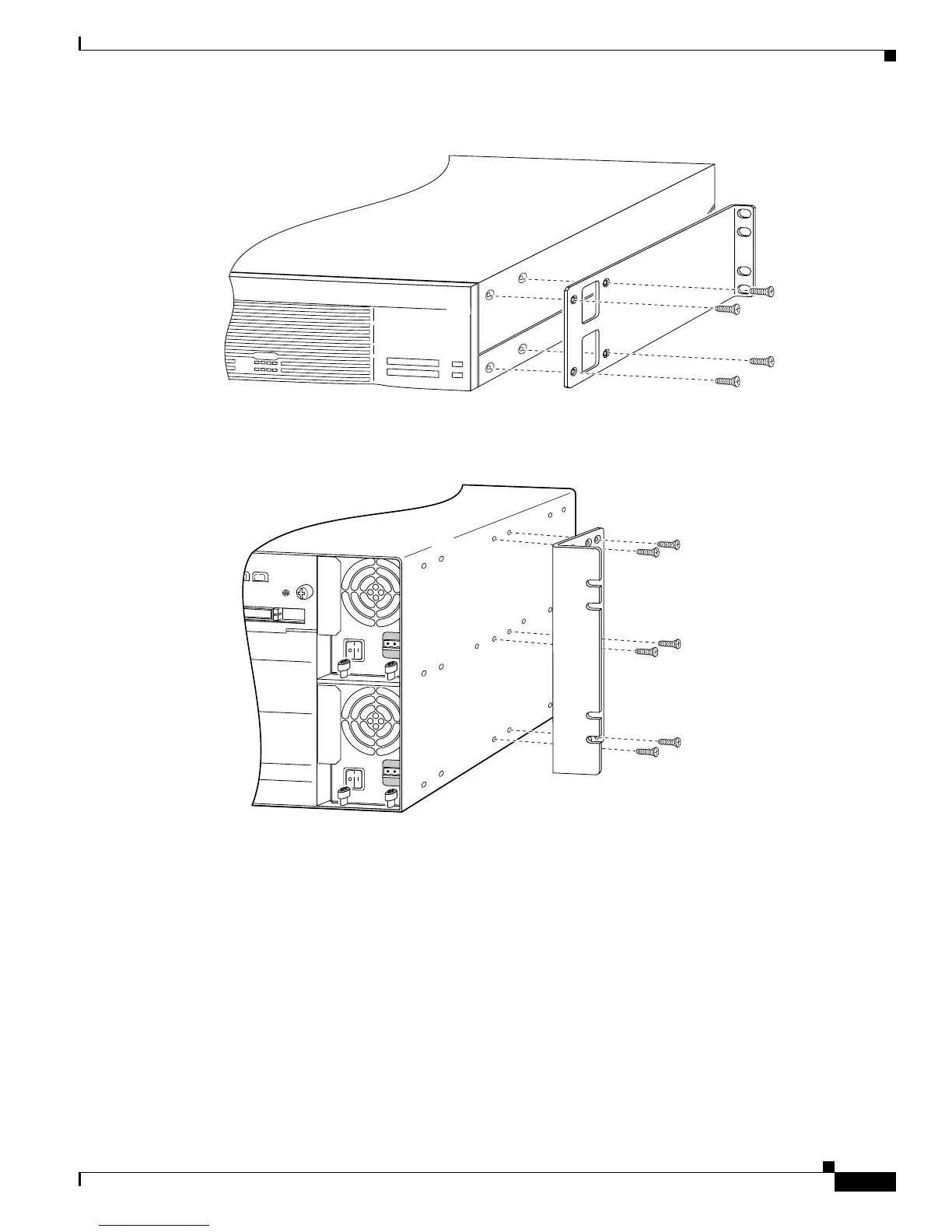

Figure 3-21 Cisco 3640 Center-Mount Bracket Attachment (Requires Optional NEBS/ETSI Kit)
Figure 3-22 Cisco 3660 Center-Mount Bracket Attachment
0
ACTIVE
READ
Y
1
2
3
PCMCIA
1
0
10970
Note: The second bracket attaches to the other side of the chassis.
22657
Note: The second bracket attaches to the other side of the chassis.
The brackets can also be installed with the front panel forward.
