Chapter 3 Installing the Router
Power Connections

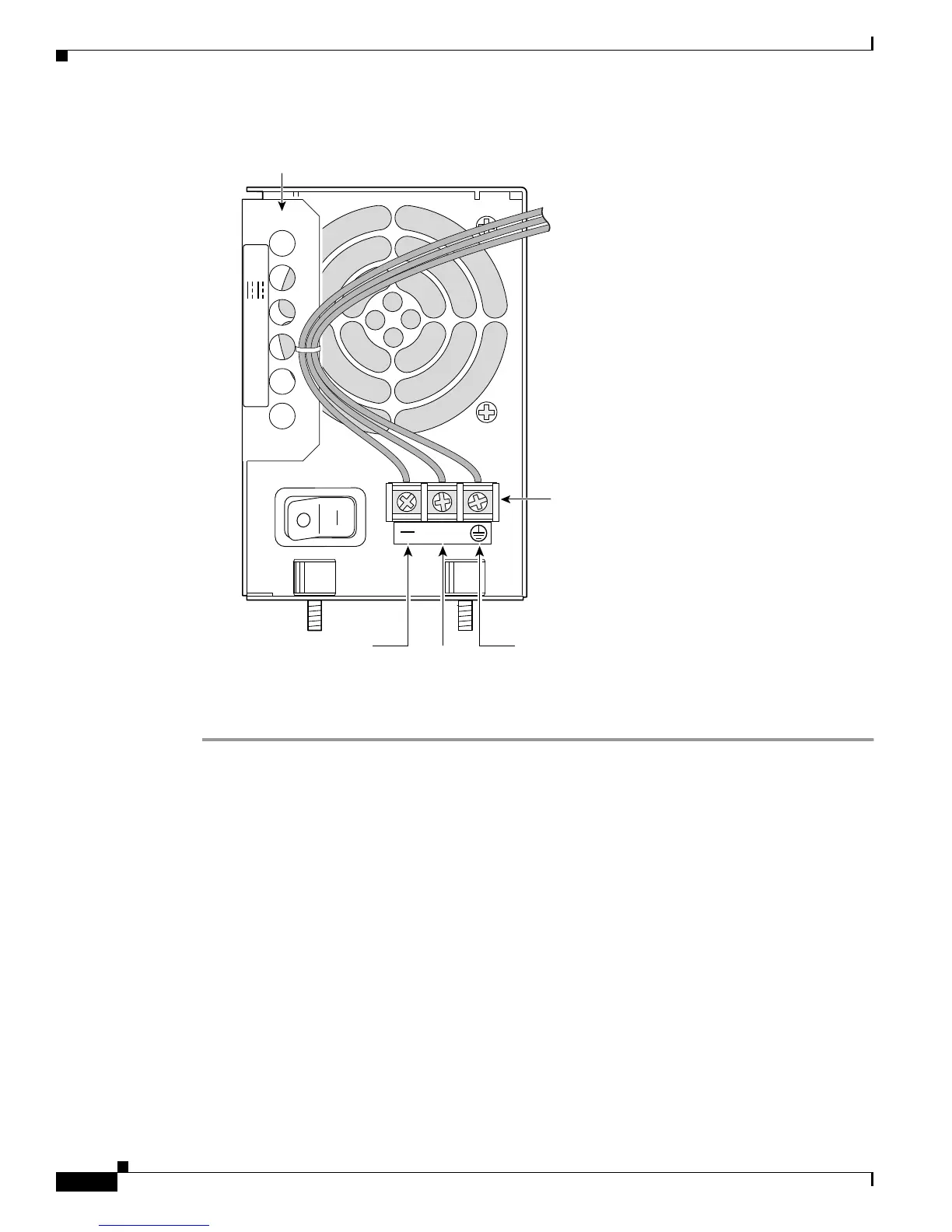

Figure 3-52 DC Wiring—Power Supply with Terminal Block in Cisco 3660 Routers
Step 6
If your router has two power supplies installed, repeat Step 1 through Step 5 for the second power supply.
Step 7 Turn on power to the DC circuit.
Connecting Routers to the Cisco Redundant Power System
If your router uses the Cisco Redundant Power System (RPS), refer to the Cisco RPS Hardware
Installation Guide for instructions about the power connections. You can access this document at the
location described in the “Obtaining Documentation” section on page xvii.
82770
Wire management bracket
DC terminal
block
+
Positive
Negative
Safety ground
INPUT +/-
24-36V 36-60V
16A 7A
