Cisco 3600 Series Routers Hardware Installation Guide
OL-2056-05
Chapter 3 Installing the Router
Power Connections
Warning The safety cover is an integral part of the product. Do not operate the unit without the safety cover
installed. Operating the unit without the cover in place will invalidate the safety approvals and pose
a risk of fire and electrical hazards. Statement 117
Step 7 Secure the wires using cable ties as shown in Figure 3-47. The chassis has a cable-tie attachment below
and to the right of the terminal block.
Step 8 Turn on power to the DC circuit.

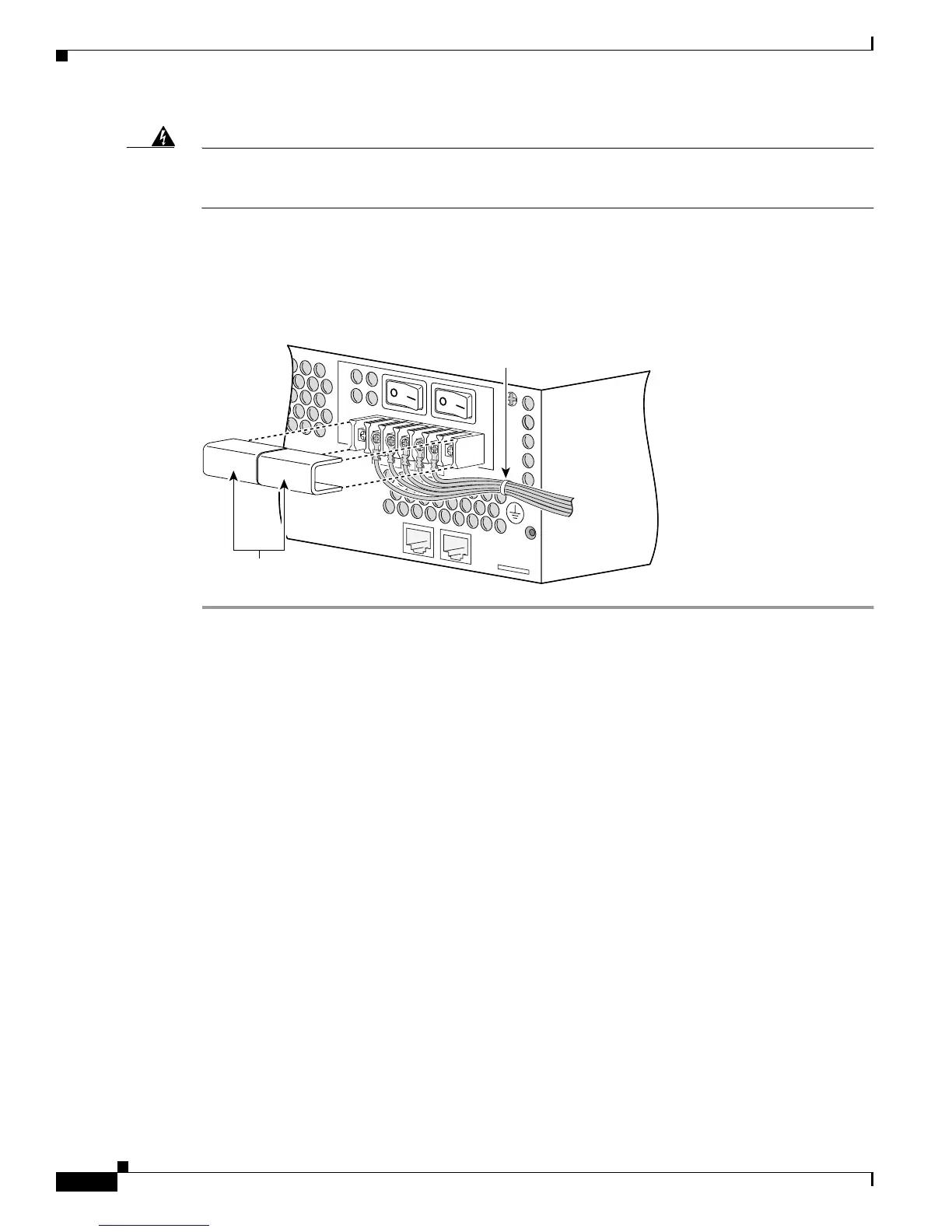

Figure 3-47 Wire Routing and Attachment for Cisco 3631 Routers
Wiring the DC-Input Power Supply in Cisco 3660 Routers
If your router has a DC-input power supply, follow the directions in this section for proper wiring.
DC Wiring Requirements
A Cisco 3660 router with a DC-input power supply requires copper wire for the power connections.
Table 3-3 summarizes the wiring requirements.
62471
A
+
B
+
Cable tie
From DC
power
source
Plastic covers
