Installing and Upgrading Internal Components in Cisco 3800 Series Routers
OL-5975-04
AIM Installation and Removal
Connecting the AIM to the Motherboard
To connect an AIM to the motherboard, follow these steps:
Step 1 Remove the three screws from the motherboard near the AIM connector that you are going to use.
Figure 56 shows a typical installation.

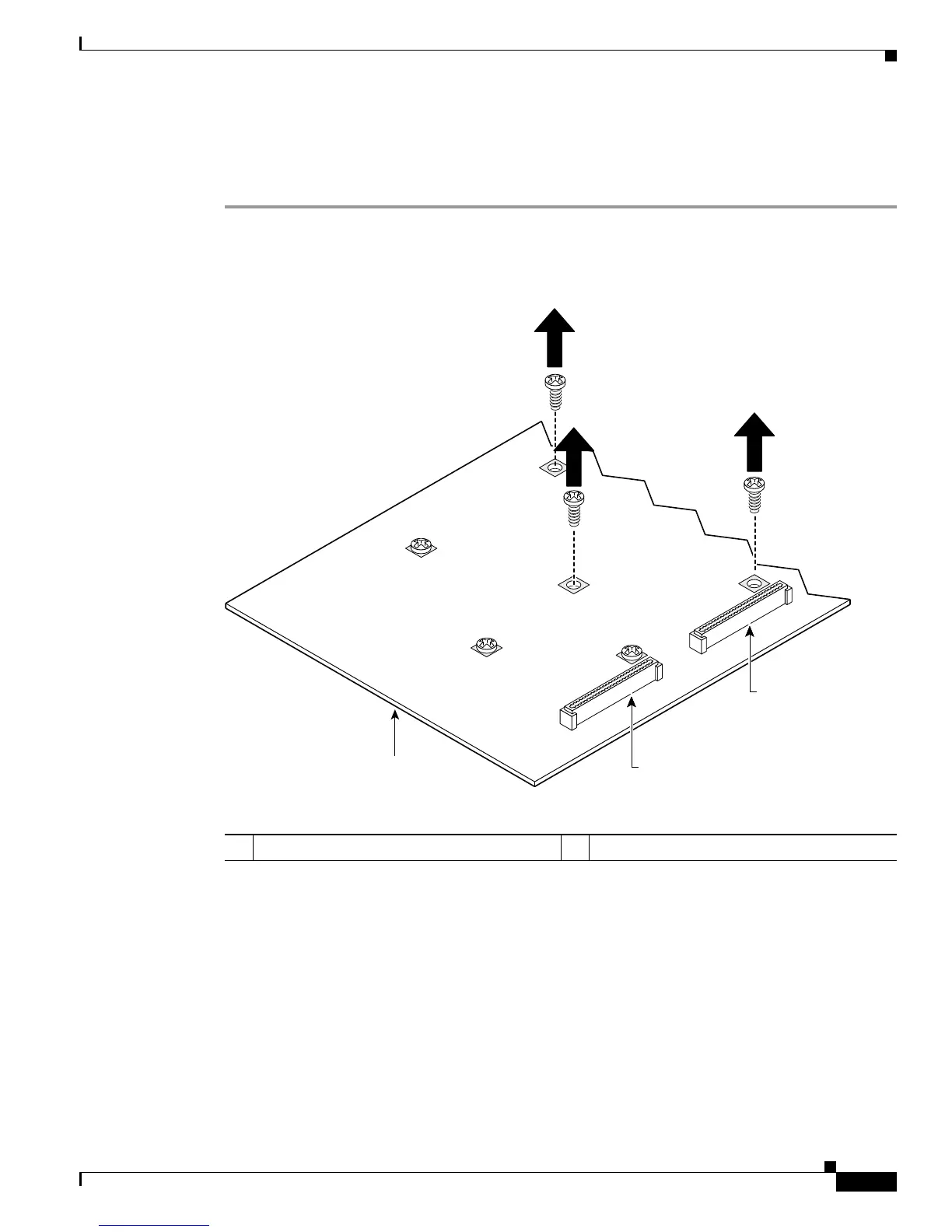

Figure 56 Removing Screws from a Motherboard for AIM Installation
Step 2
Locate the two machine-thread metal standoffs from the accessory kit. Do not use sheet metal-thread
standoffs. Figure 57 shows these metal standoffs.
A Metal standoff locations B Plastic standoff location
121394
AIM slot 1
connector
AIM slot 0
connector
Motherboard
A
A
A
A
B
B
