Note For information about installing a second power supply in the Cisco 3845 router, see the Cisco 3800 series hardware
installation documentation at the following URL:
http://cisco.com/en/US/products/ps5855/prod_installation_guides_list.html
Caution Before connecting the RPS to the router, make sure that either the RPS is in standby mode or the RPS AC power is
disconnected. Connecting the RPS to AC power automatically places the RPS in active mode.

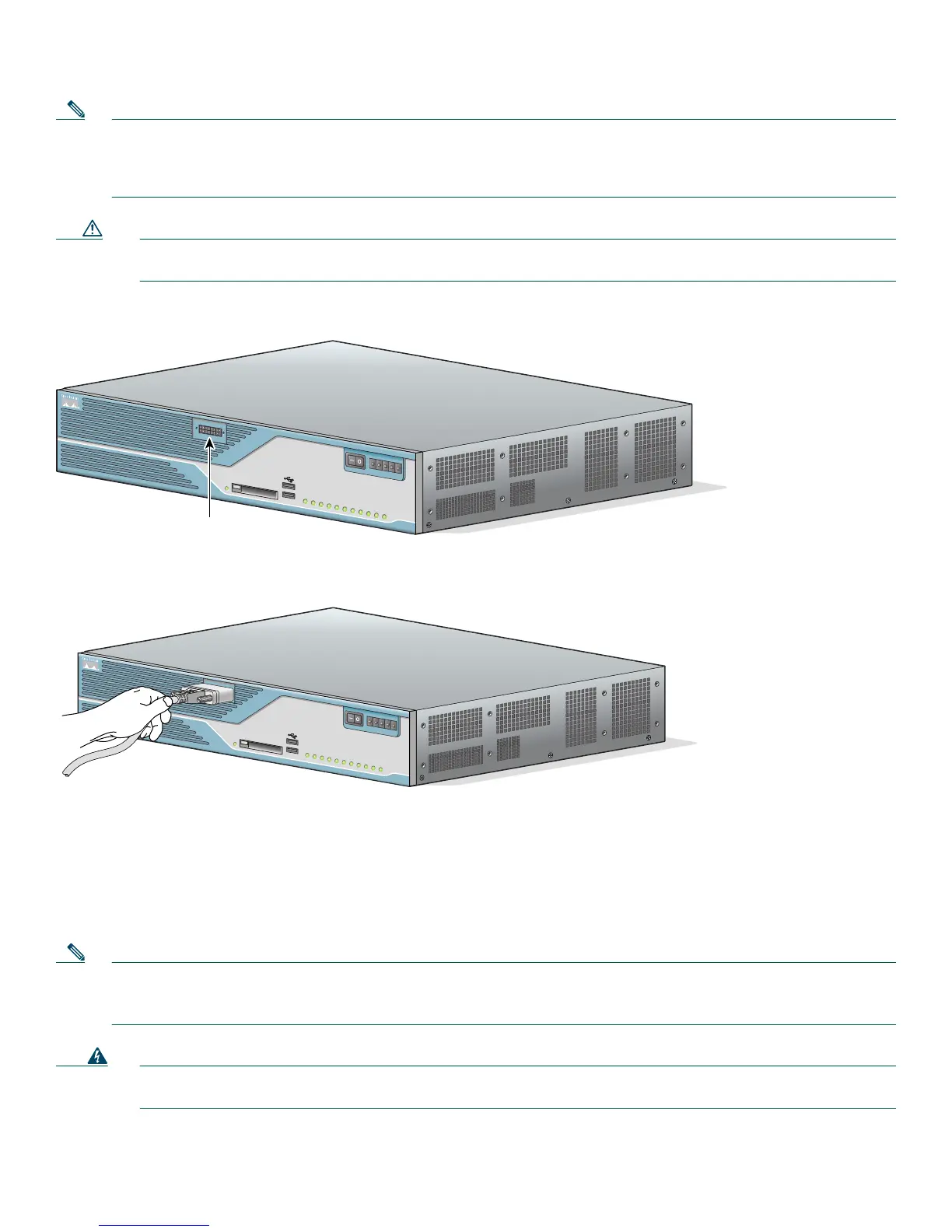

Figure 20 RPS Connector on the Cisco 3825 Router
Figure 21 Plugging the RPS Connector into the Cisco 3825 Router
WAN, LAN, and Voice Connections
The connections and cables listed in Table 3 are described in detail in the Cisco 3800 series hardware installation documents at
the following URL:
http://cisco.com/en/US/products/ps5855/prod_installation_guides_list.html
Note An Ethernet cable is typically provided with the router. Additional cables and transceivers can be ordered from Cisco. For
ordering information, contact customer service. For cable pinouts, see the
Cisco Modular Access Router Cable Specifications document.
Warning Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations.
Statement 1036
