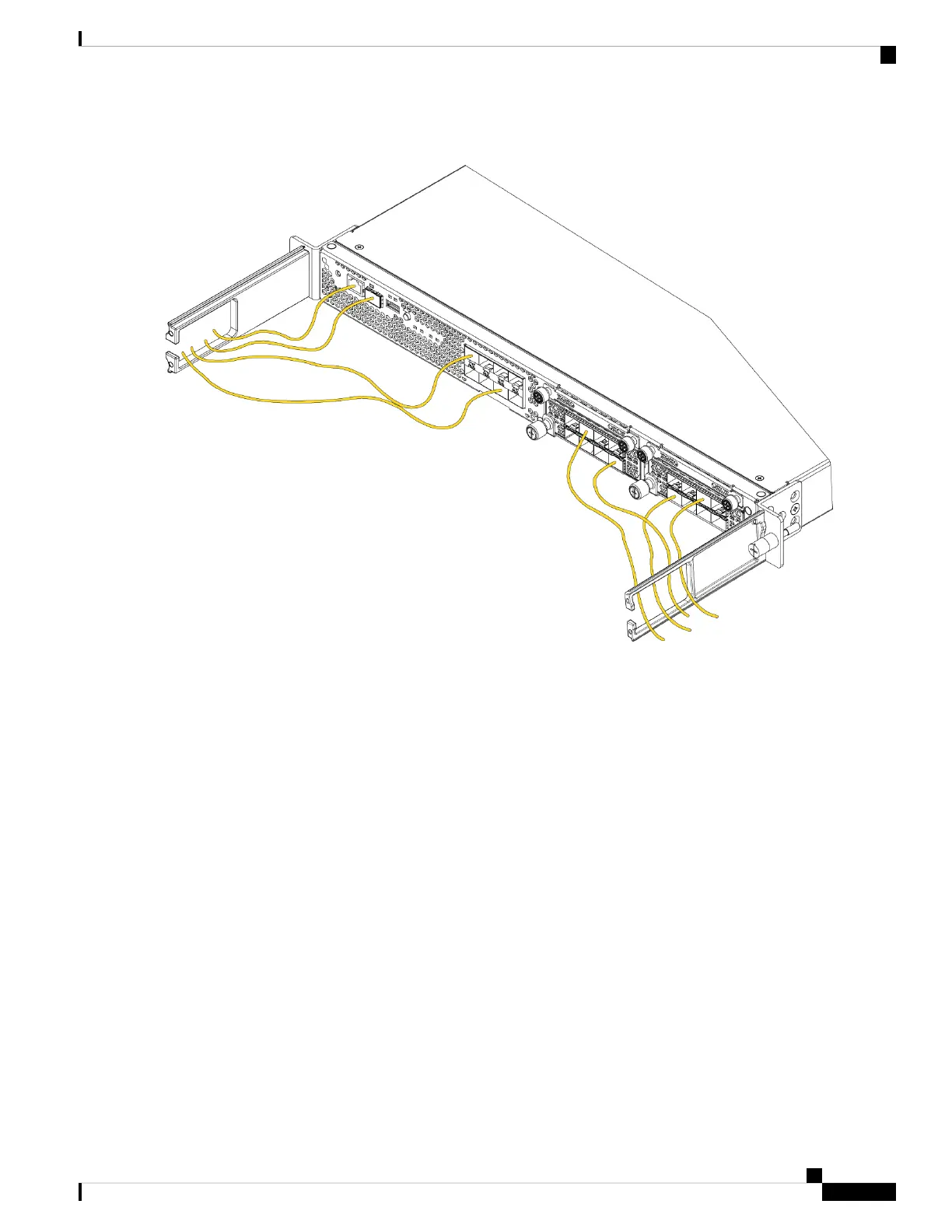

Figure
57:
Route
the
Cables
Through
the
Cable
Management
Brackets
Step
7
Attach
the
FIPS
opacity
shield
to
the
cable
management
brackets
using
the
four
8-32
x
0.375-inch
Phillips
screws
provided
in
the
FIPS
kit.
Cisco
Firepower
4112,
4115,
4125,
and
4145
Hardware
Installation
Guide
79
Installation,
Maintenance,
and
Upgrade
Install
the
FIPS
Opacity
Shield
82
84
