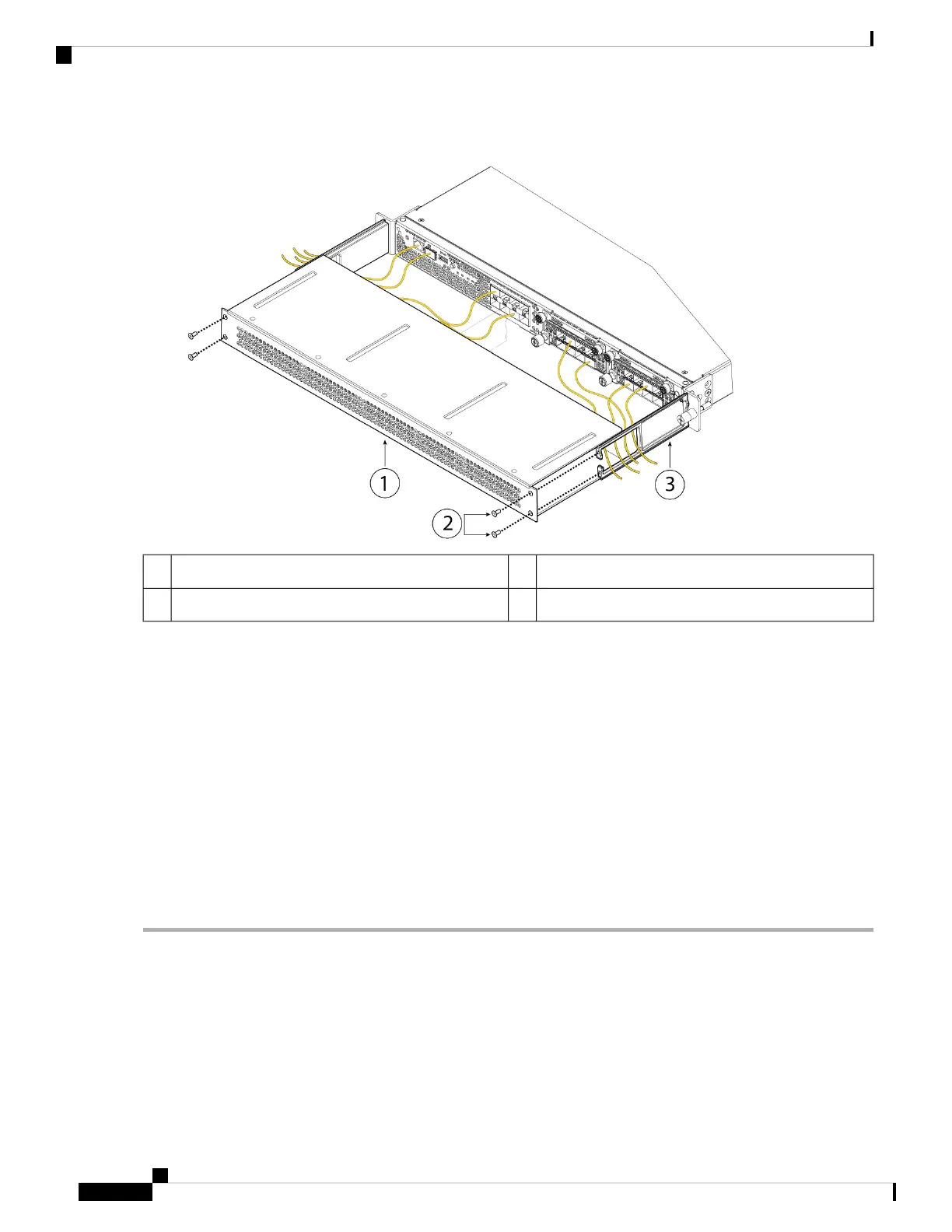

Figure 58: Attach the FIPS Opacity Shield to the Cable Management Brackets
8-32 x 0.375-inch Phillips screws (two per side)2FIPS opacity shield1
Cable management bracket3
Step 8 Attach the 15 TELs. For information on the procedure and correct placement of the TELs, see the Tamper Evidence
Label (TEL) Placement section (section 2.13 ) in the FIPS 140-2 Non Proprietary Security Policy Level 2 Validation
document.
Step 9 Attach the power cable to the chassis and connect it to an electrical outlet.
Step 10 Press the power switch on the rear panel.
Step 11 Check the power LED on the front panel. See Front Panel LEDs, on page 9 for a description of the power LED. Solid
green indicates that the chassis is powered on.
When you toggle the power switch from ON to OFF, it takes several seconds for the system to power
down. Do not remove the power cable until the power LED is off. After removing power from the chassis
either by moving the power switch to OFF or unplugging the power cord, wait at least 10 seconds before
turning power back ON.
Note
Step 12 See the Cisco Firepower 4100 Getting Started Guide for further configuration information.
Cisco Firepower 4112, 4115, 4125, and 4145 Hardware Installation Guide
80
Installation, Maintenance, and Upgrade
Install the FIPS Opacity Shield
