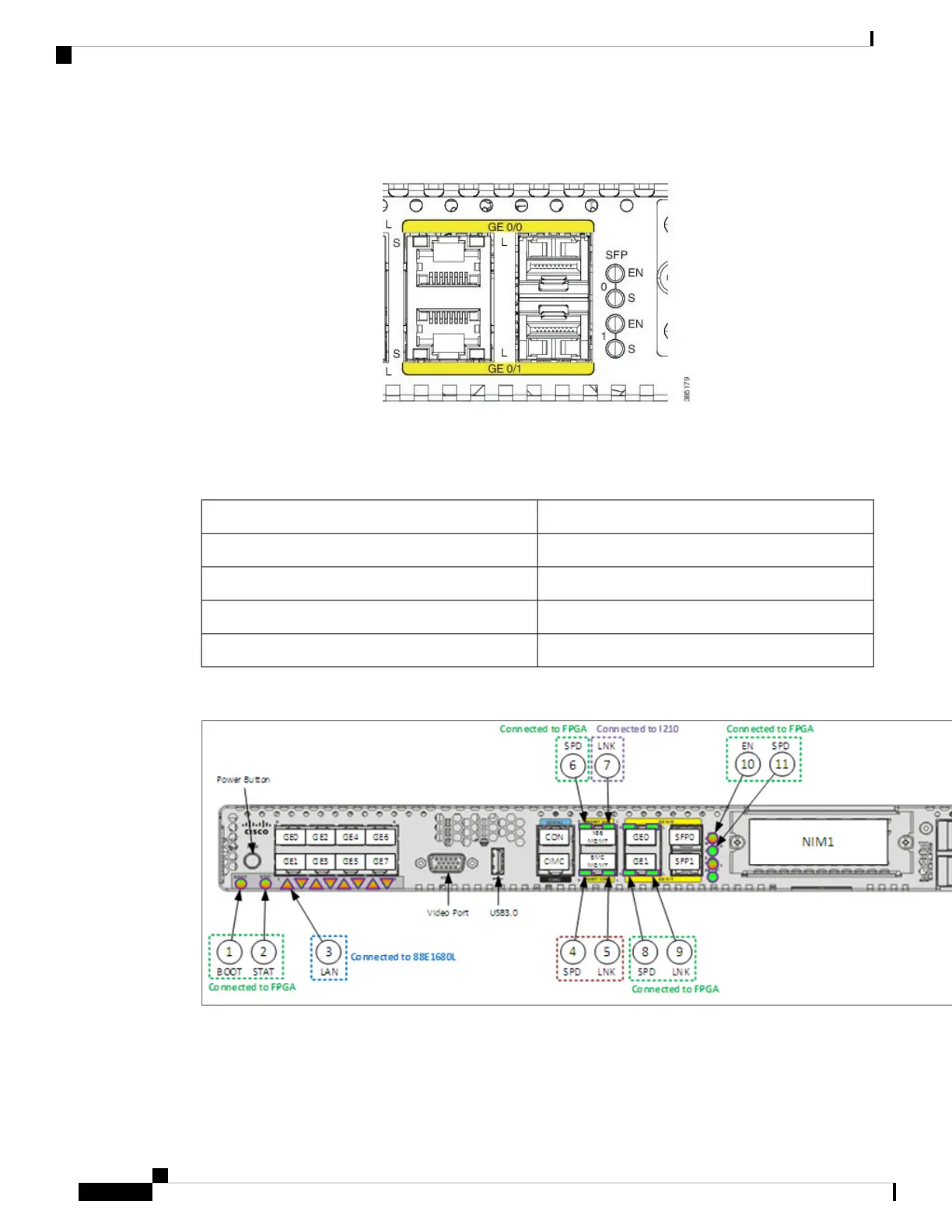

Figure 4: LEDs for Gigabit Ethernet Ports
The LEDs labeled EN indicates whether the corresponding ports are enabled.
The frequency of the blinks of the LEDs labeled S shows the speed of the corresponding ports. This table
maps the blink frequency of a LED to the speed of the corresponding port.
SpeedBlink Frequency
No linkNo blink
10Mbps1 blink
100Mbps2 blinks
1000Mbps3 blinks
Front Panel LED Status
