Cisco 5520 Installation Instructions

To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions
to ensure that the system remains stable. The following guidelines are provided to ensure your safety:This
unit should be mounted at the bottom of the rack if it is the only unit in the rack.When mounting this unit
in a partially filled rack, load the rack from the bottom to the top with the heaviest component at the bottom
of the rack.If the rack is provided with stabilizing devices, install the stabilizers before mounting or
servicing the unit in the rack. Statement 1006
Warning
Step 1
Attach the inner rails to the sides of the controller:
a) Align an inner rail with one side of the controller so that the three keyed slots in the rail align with the three pegs on
the side of the controller (see Attaching Inner Rail to Side of Controller).
b) Set the keyed slots over the pegs, and then slide the rail toward the front to lock it in place on the pegs. The front slot
has a metal clip that locks over the front peg.
c) Install the second inner rail to the opposite side of the controller.

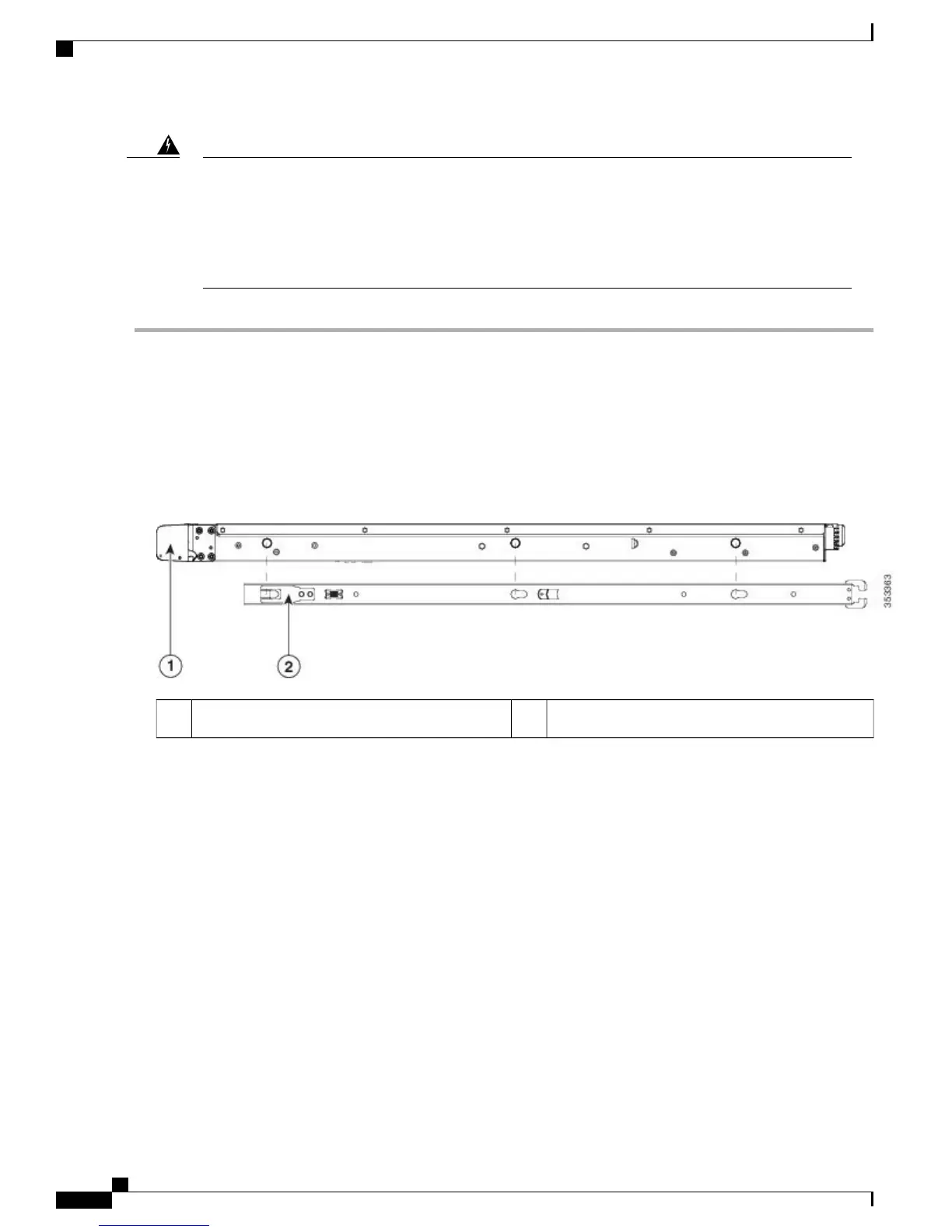

Figure 1: Attaching Inner Rail to Side of Controller
Locking clip on inner rail2Front of controller1
Step 2
Open the front securing plate on both slide-rail assemblies. The front end of the slide-rail assembly has a spring-loaded
securing plate that must be open before you can insert the mounting pegs into the rack-post holes (see Front Securing
Mechanism, Inside of Front End).
Cisco 5520 Wireless Controller Installation Guide
4
Installing the Cisco 5520 Wireless Controller
Installing the Slide Rails

Cisco 5520 Specifications

General

Maximum Access Points	1500
Maximum Clients	20000
Form Factor	1RU
Product Series	Cisco 5500 Series
Memory	32 GB
Flash Memory	8 GB
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-4°F to 149°F (-20°C to 65°C)
Model	Cisco 5520
Ports	8 x 1GE
Redundancy	N+1
Management	CLI
Wireless Standard	802.11ac
Humidity	10% to 95% non-condensing
