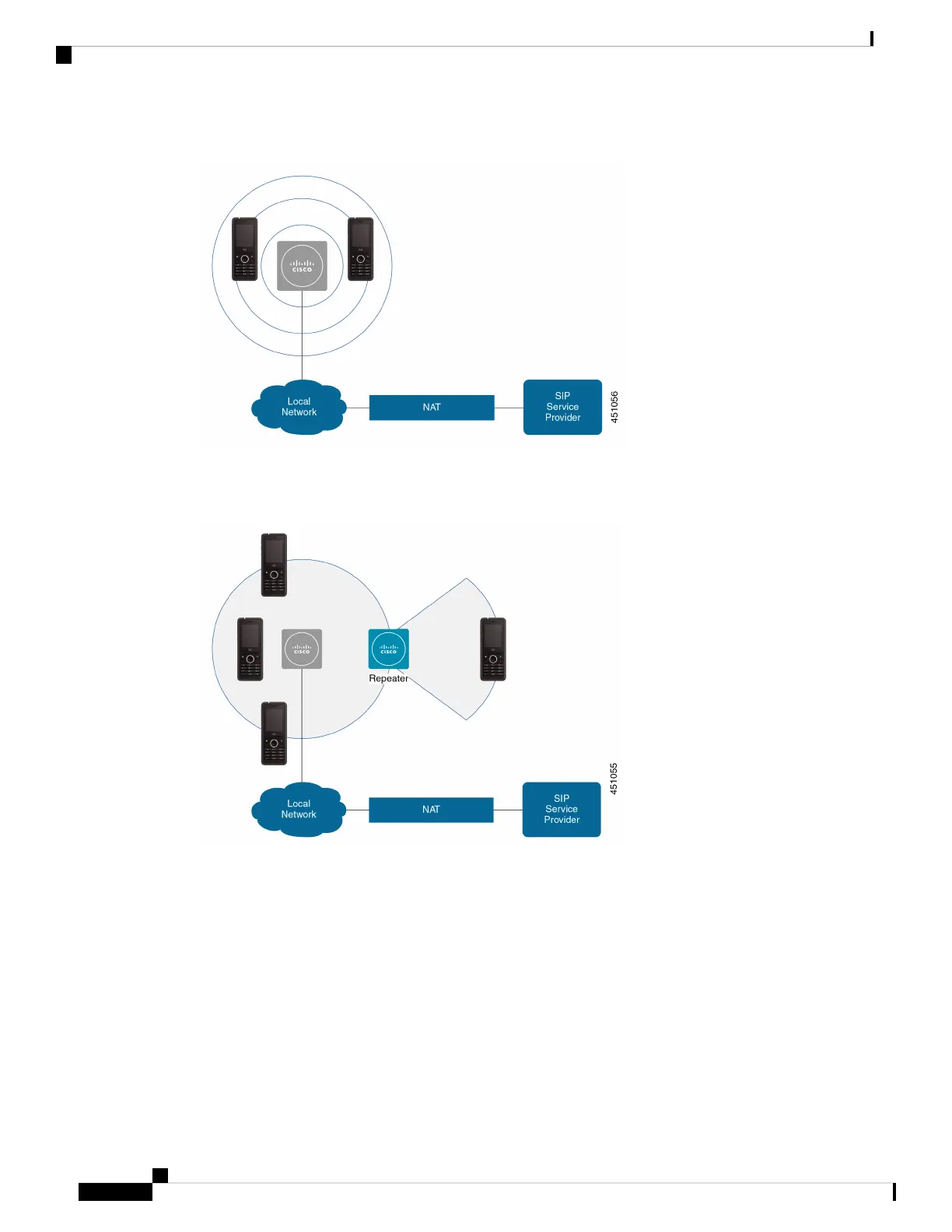

Figure 1: Single Cell Network
The following diagram shows a single cell base station with one repeater.
Figure 2: Single Base Station with One Repeater
A multicell system consists of up to 250 of the 210 Multi-Cell Base Stations with up to 1000 handsets. In this
system, you can also use up to 100 of the 110 Repeaters for improved radio coverage. The following diagram
shows a multicell network with 3 base stations.
Hardware Installation
4
Hardware Installation
Single Cell and Multicell Networks
