Cisco 6821 Administration Guide

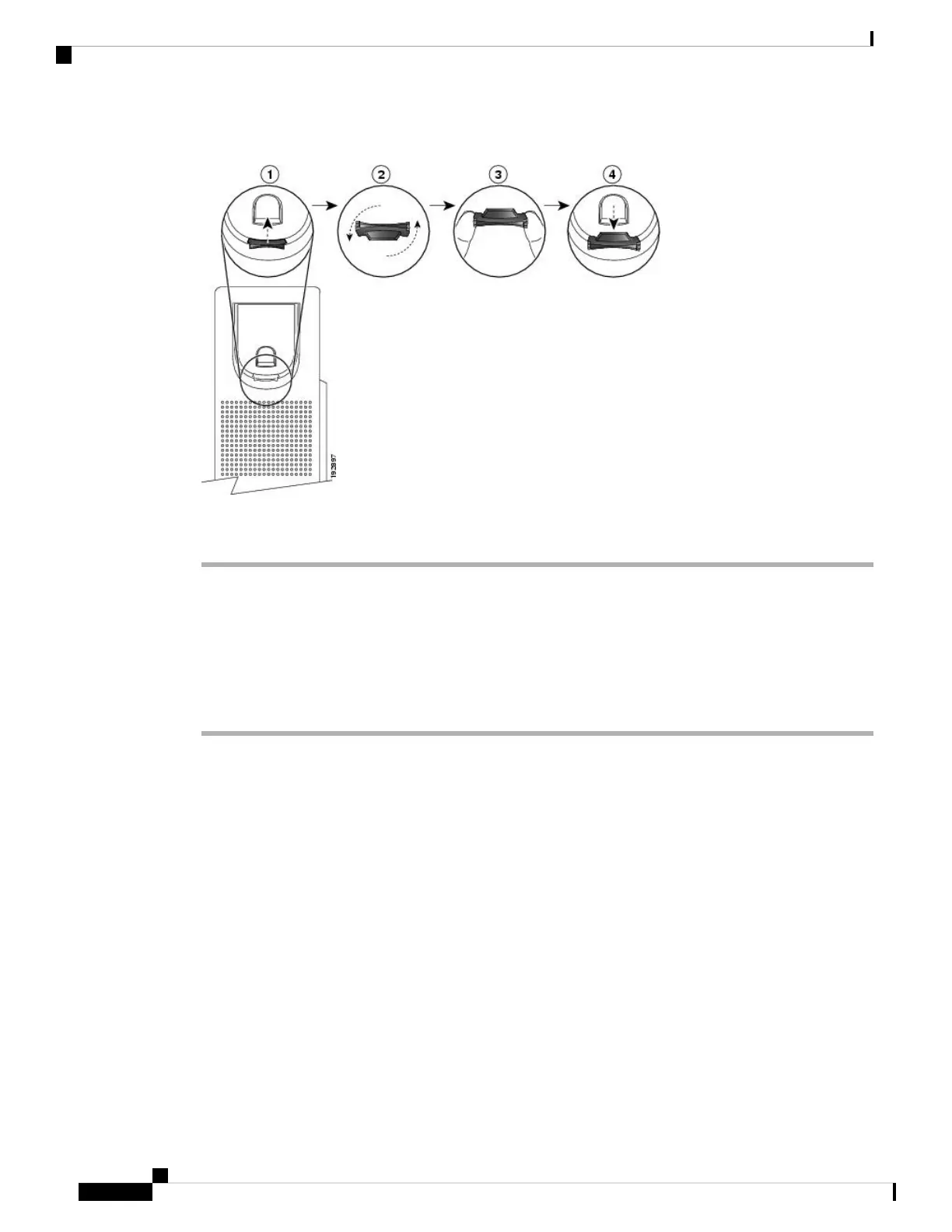

Figure 11: Adjust the Handset Rest
Procedure
Step 1 Remove the handset from the cradle and pull the plastic tab from the handset rest.
Step 2 Rotate the tab 180 degrees.
Step 3 Hold the tab between two fingers, with the corner notches facing you.
Step 4 Line up the tab with the slot in the cradle and press the tab evenly into the slot. An extension protrudes from
the top of the rotated tab.
Step 5 Return the handset to the handset rest.
Cisco IP Phone 6800 Series Multiplatform Phones Administration Guide
118
Phone Accessories
Adjust the Handset Rest

Cisco 6821 Specifications

General

Resolution	320 x 240 pixels
Speakerphone	Yes
Headset Port	Yes
Protocols	SIP
USB Port	No
Wireless	No
Bluetooth	No
Video Support	No
Conference Capabilities	Yes
Wall Mountable	Yes
Display	3.5-inch grayscale
Ethernet	10/100 Ethernet
Line Keys	2
PoE	IEEE 802.3af Power over Ethernet (PoE)
Codecs	G.711, G.722, G.729, iLBC
Weight	2.0 lb (0.91 kg)
