Connecting Your Phone

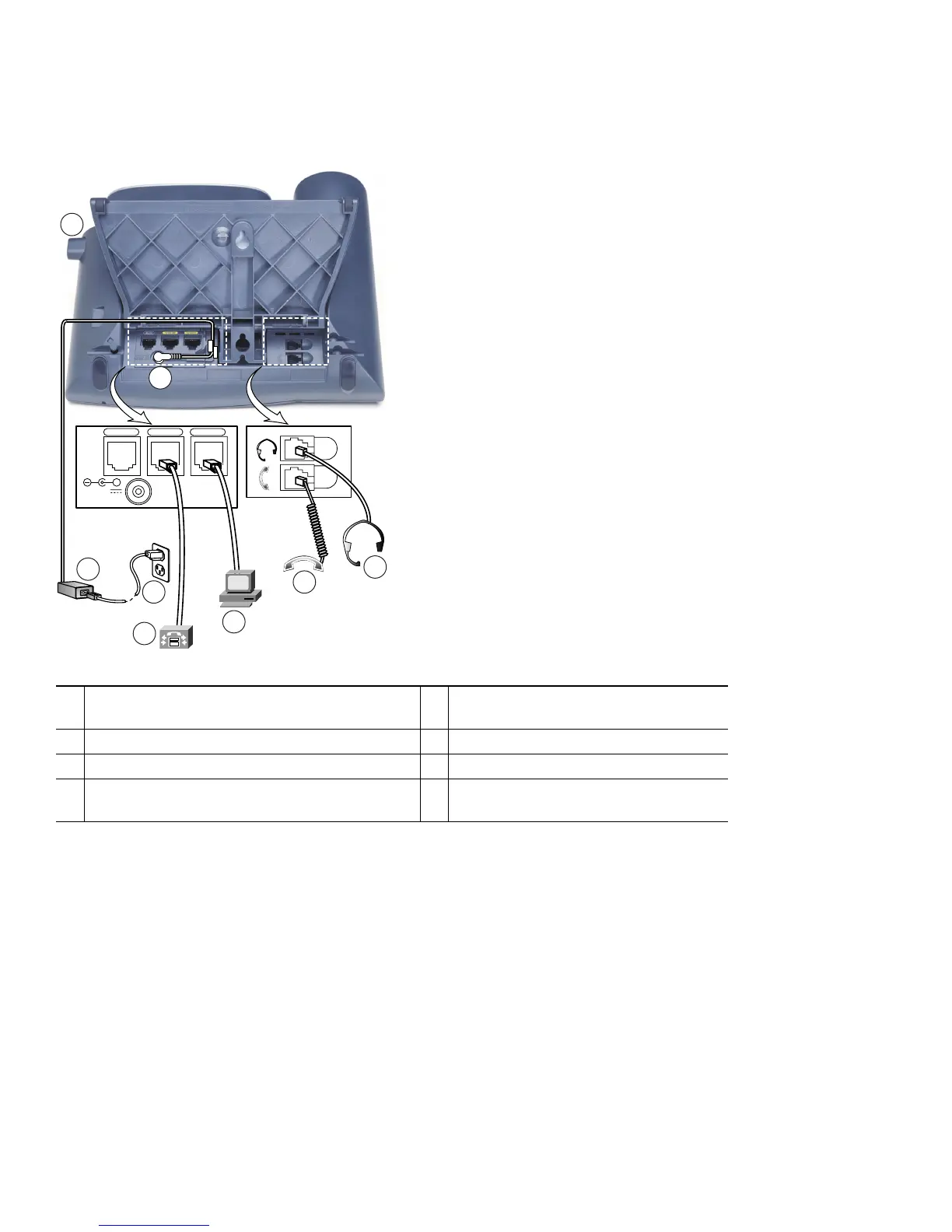

This section show how to use the connectors on your Cisco IP phone.
1
DC adapter port (DC48V) for phones not
provided with inline power
5
Access port (10/100 PC) for connecting
your phone to your computer
2
AC-to-DC power supply
6
Handset port
3
AC power cord
7
Headset port
4
Network port (10/100 SW) for connecting to the
network
8
Footstand button
AUX
DC48V
10/100 SW 10/100 PC
+
113656
2
8
3
4
5
6
7
1
