Cisco 819 Integrated Services Router Hardware Installation Guide
OL-23125-02
Chapter 2 Installing the Router
Installing the Router

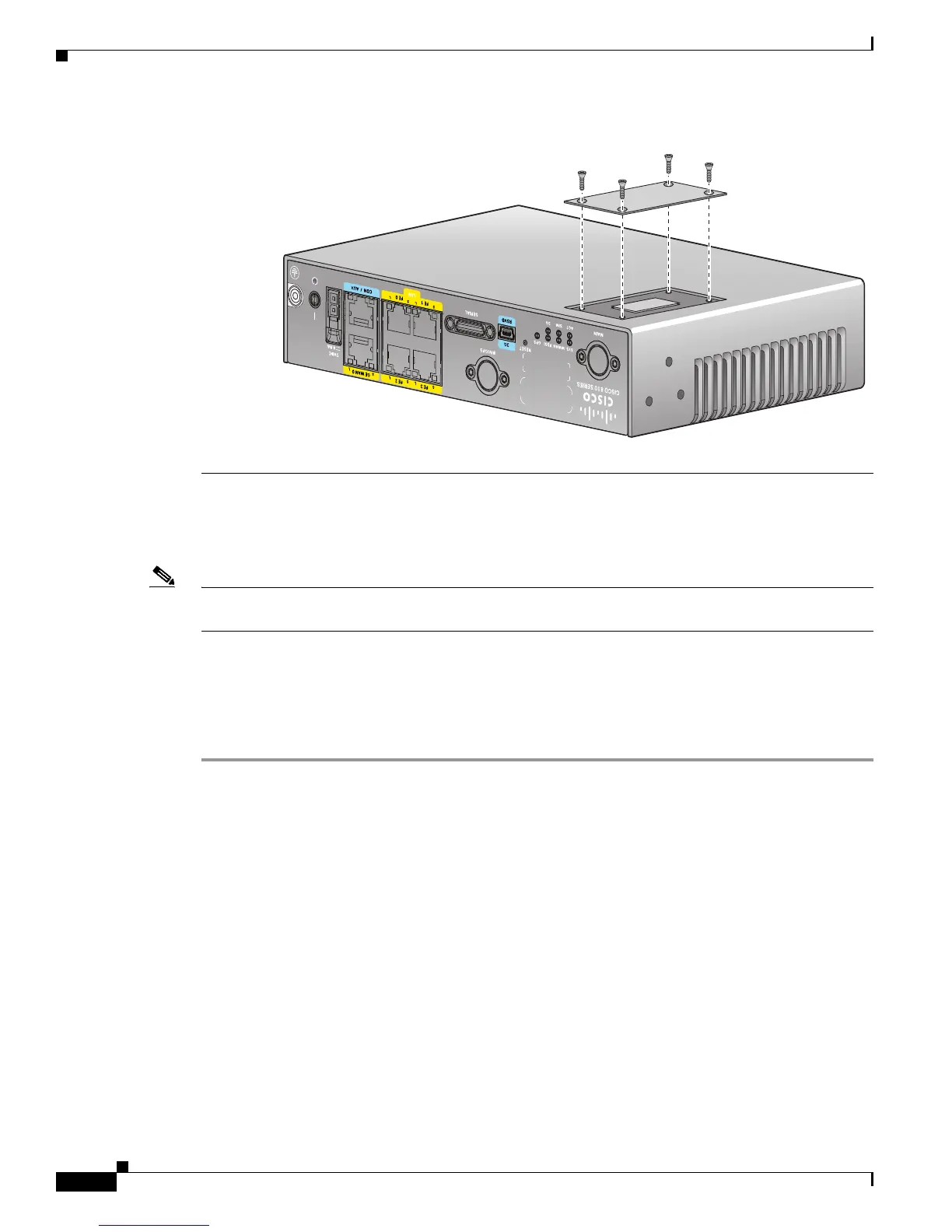

Figure 2-1 Accessing the SIM Cards
Step 5 Replace the panel and the screws.
Installing Antennas
Note Before you install the Cisco 819 ISR on a table, wall, or DIN rail, install the antennas on the front panel.
It is difficult to install the antennas after the router is installed.
Orient the antennas. For optimum wireless performance, the antennas should be perpendicular with
respect to the floor.
If the router is being mounted on a desk, orient the antennas straight up.
To attach the radio antennas to your wireless router, follow these steps:
Step 1 Manually screw the antenna tight to the TNC connectors on the back of the router. (See Figure 2-2.)
245829

Cisco 819 Specifications

General

Operating System	Cisco IOS
Authentication Method	RADIUS, TACACS+
Model	819
WAN Interfaces	1 x 10/100 Ethernet
LAN Interfaces	4 x 10/100 Ethernet
Wireless	802.11b/g/n
Security	Firewall, VPN
Power	AC adapter
Weight	2.2 lbs
Connectivity Technology	Wired, Wireless
Data Link Protocol	Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network / Transport Protocol	TCP/IP
Remote Management Protocol	SNMP, Telnet, HTTP, HTTPS
Features	VPN support, VLAN support, Quality of Service (QoS)
Encryption Algorithm	DES, 3DES, AES, SHA
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
RAM	256 MB
Flash Memory	256 MB
Ports	4 x Ethernet 10/100, 1 x console
