Cisco 819 User Manual

2-15
Cisco 819 Integrated Services Router Hardware Installation Guide
OL-23125-02
Chapter 2 Installing the Router
Installing the Router

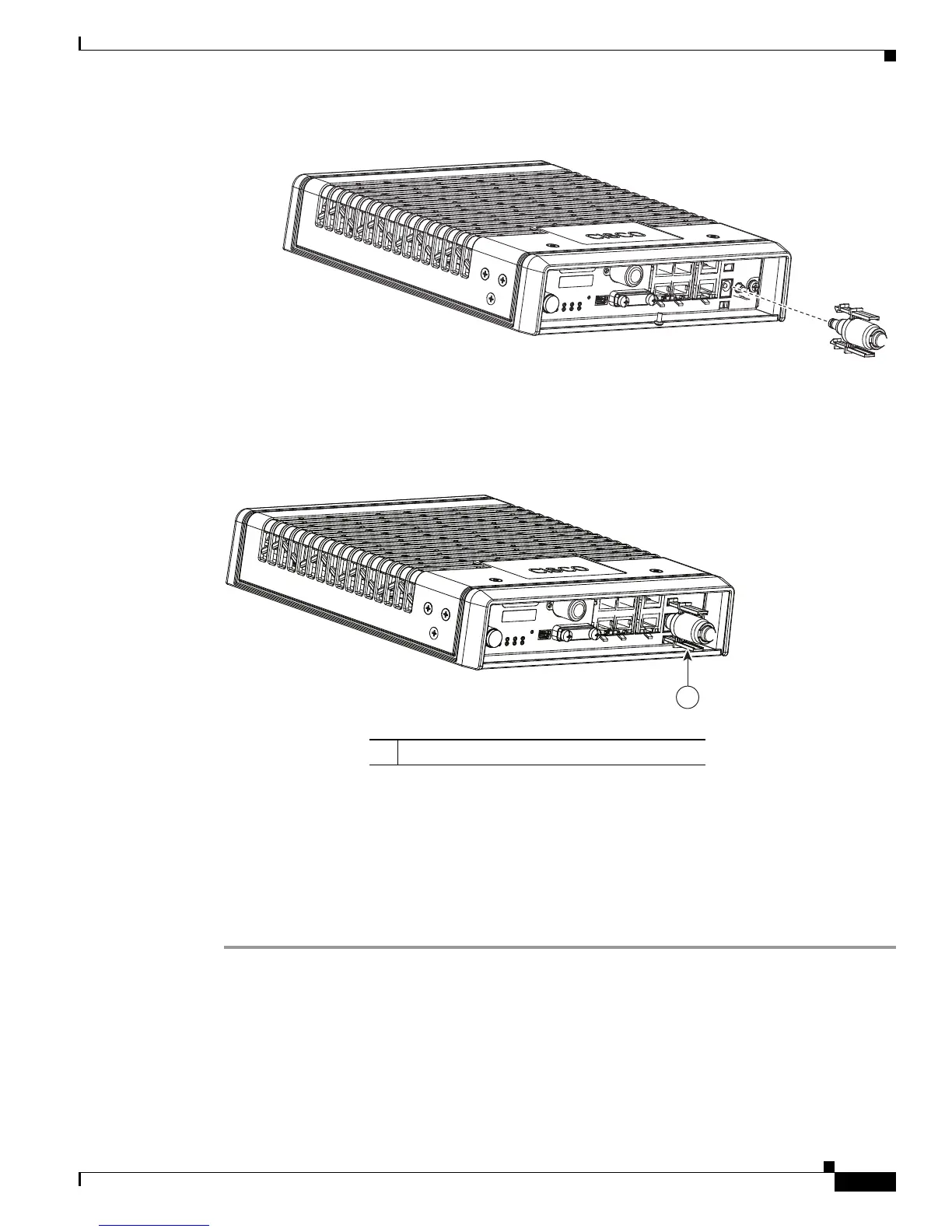

Figure 2-12 Installing Power Cord Lock onto the Router
Step 4 To remove the power cord lock, use your thumb and index fingers to squeeze ends of tabs while pulling
away from the router. (See
Figure 2-13.)
Figure 2-13 End of Tabs
Installing the Power Switch Lock
The Cisco 819 ISRs have a power switch lock as an accessory. The power switch lock prevents
unauthorized access to a tampered proof router (for example, router in a bus). For the complete list of
Cisco 819 ISRs that support power switch lock, see
Table 1-4.
This section describes how to install the power switch lock.
Step 1 Install the power switch lock by following the parts listed in Figure 2-14. All these parts are in the
accessory kit in their own bag. The ring terminal does not have to be installed. Figure 2-15 shows the
power switch lock installed.
285517
285518
1
1 End of tabs

Cisco 819 Specifications

General

Operating System	Cisco IOS
Authentication Method	RADIUS, TACACS+
Model	819
WAN Interfaces	1 x 10/100 Ethernet
LAN Interfaces	4 x 10/100 Ethernet
Wireless	802.11b/g/n
Security	Firewall, VPN
Power	AC adapter
Weight	2.2 lbs
Connectivity Technology	Wired, Wireless
Data Link Protocol	Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network / Transport Protocol	TCP/IP
Remote Management Protocol	SNMP, Telnet, HTTP, HTTPS
Features	VPN support, VLAN support, Quality of Service (QoS)
Encryption Algorithm	DES, 3DES, AES, SHA
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
RAM	256 MB
Flash Memory	256 MB
Ports	4 x Ethernet 10/100, 1 x console
