Cisco 819 Integrated Services Router Hardware Installation Guide
OL-23125-02
Chapter 3 Connecting the Router
Connecting a PC, Server, or Workstation
Connecting a PC, Server, or Workstation
To connect a PC (or other Ethernet devices) to an Ethernet switch port, follow these steps:
Step 1 Connect one end of the yellow Ethernet cable to an Ethernet switch port on the router. See Figure 3-1.

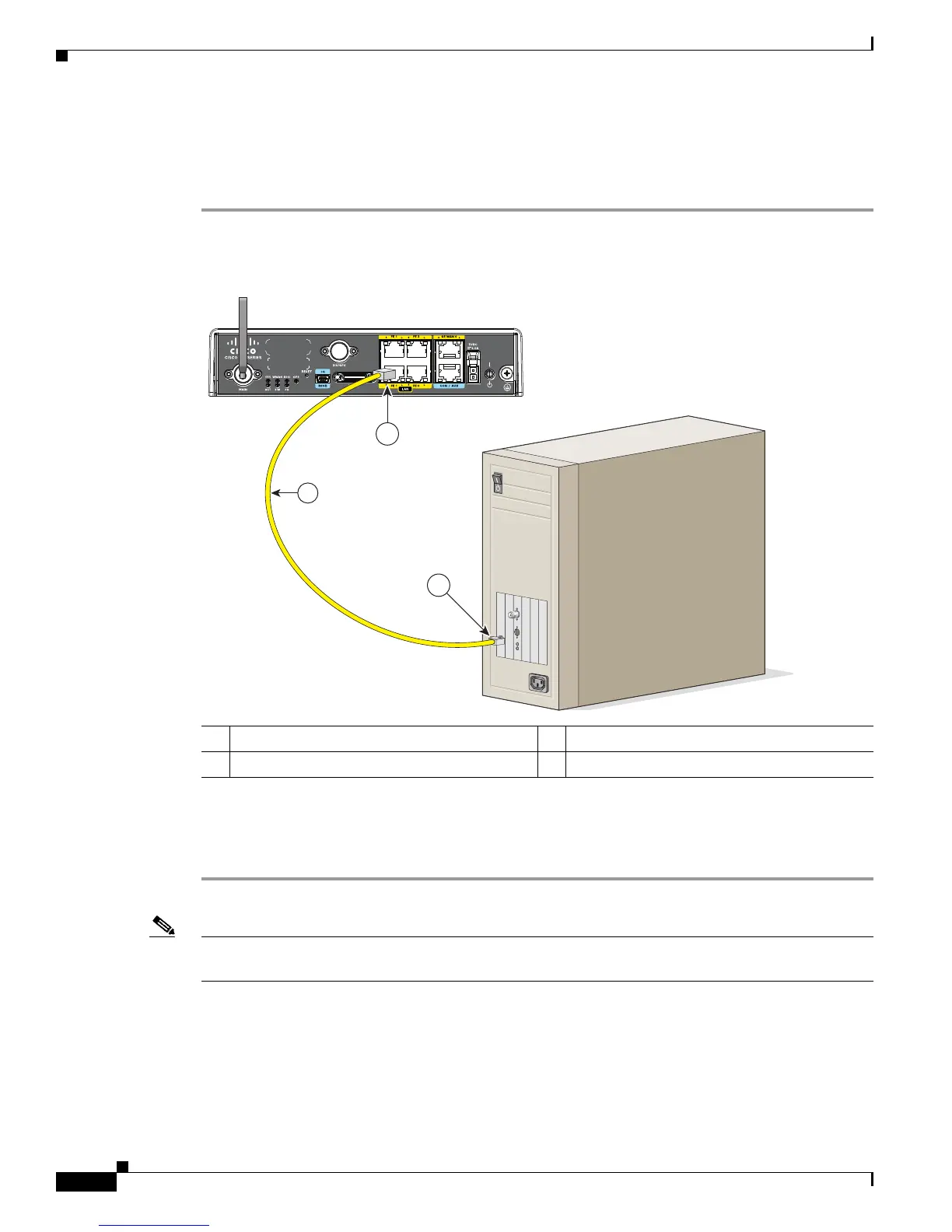

Figure 3-1 Connecting a Server, PC, or Workstation
Step 2 Connect the other end of the cable to the RJ-45 port on the network interface card (NIC) that is installed
in the PC, server, or workstation.
Step 3 (Optional) Connect additional servers, PCs, or workstations to the other Ethernet switch ports.
Note Use the Cisco Configuration Express to configure the Internet connection settings. See
Cisco Configuration Professional Quick Start Guide for more information.
Connecting an External Ethernet Switch
If more than four PCs in an office must be connected to each other, you can add Ethernet connections to
the router by connecting an external Ethernet switch to the Ethernet switch on the router.
1 Yellow Ethernet cable 3 RJ-45 port on the network interface card
2 Ethernet switch port on the router
245583
3
2
1

Cisco 819 Specifications

General

Operating System	Cisco IOS
Authentication Method	RADIUS, TACACS+
Model	819
WAN Interfaces	1 x 10/100 Ethernet
LAN Interfaces	4 x 10/100 Ethernet
Wireless	802.11b/g/n
Security	Firewall, VPN
Power	AC adapter
Weight	2.2 lbs
Connectivity Technology	Wired, Wireless
Data Link Protocol	Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network / Transport Protocol	TCP/IP
Remote Management Protocol	SNMP, Telnet, HTTP, HTTPS
Features	VPN support, VLAN support, Quality of Service (QoS)
Encryption Algorithm	DES, 3DES, AES, SHA
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
RAM	256 MB
Flash Memory	256 MB
Ports	4 x Ethernet 10/100, 1 x console
