3-4
Cisco 860 Series, Cisco 880 Series, and Cisco 890 Series Integrated Services Routers Hardware Installation Guide
OL-16193-03
Chapter 3 Connecting the Router
Connecting a Phone
Connecting a Phone
To connect an 802.3af-compliant phone to an Ethernet switch port, follow these steps:
Step 1 Connect one end of the yellow Ethernet cable to Ethernet switch port 0 or port 1 on the router. Figure 3-2
shows a Cisco 888W router connected to a phone.

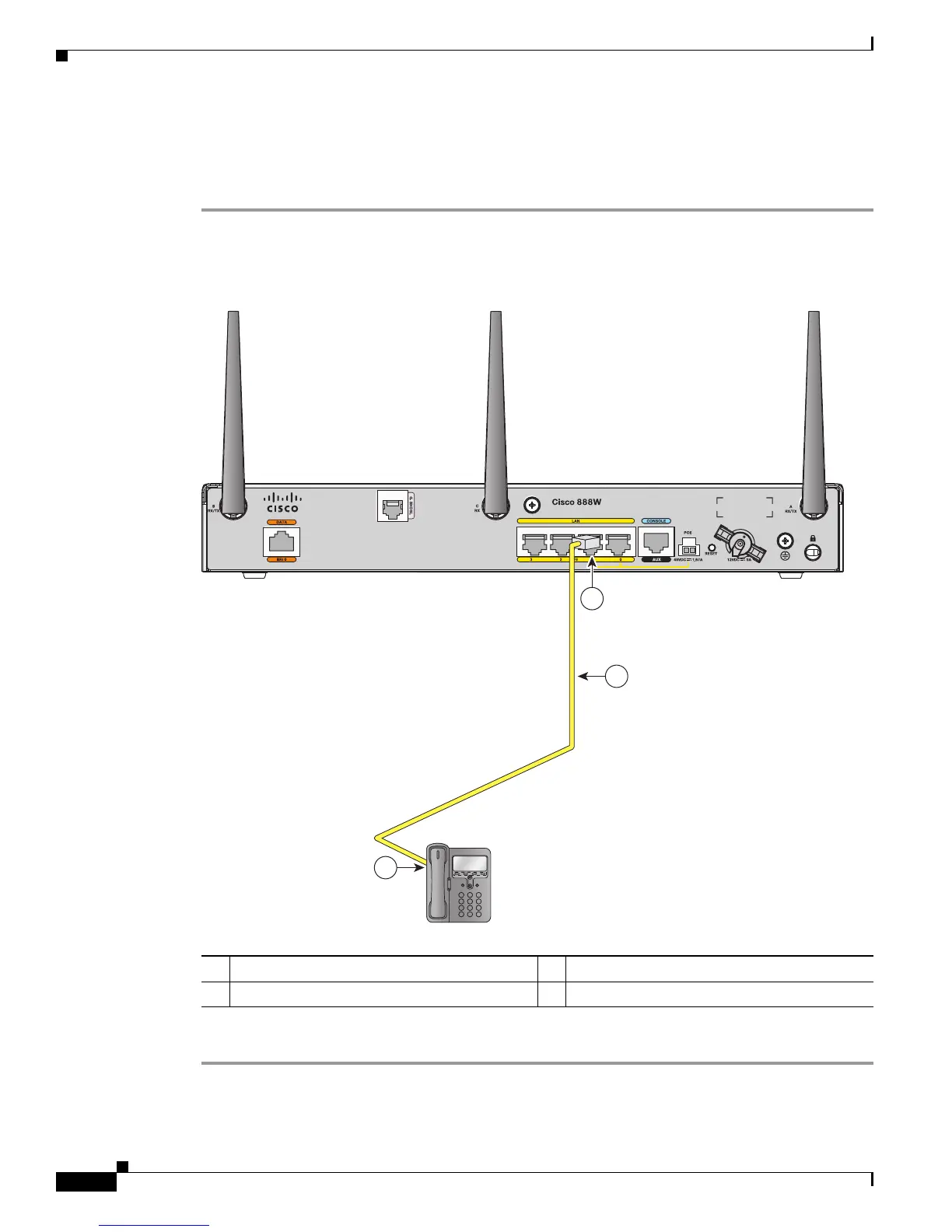

Figure 3-2 Connecting a Phone
Step 2 Connect the other end of the cable to the RJ-45 port on the phone.
1 Yellow Ethernet cable 3 RJ-45 port on a phone
2 Ethernet switch port 1 on the router
3
2
270551
1
12
ABC
3
DEF
45
JKLGHI
6
MNO
78
TUVPQRS
9
WXYZ
*
0
OPER
#
