3-6
Cisco 860 Series, Cisco 880 Series, and Cisco 890 Series Integrated Services Routers Hardware Installation Guide
OL-16193-03
Chapter 3 Connecting the Router
Connecting the V.92 modem Port
Connecting the V.92 modem Port
Warning
Hazardous network voltages are present in WAN ports regardless of whether power to the unit is OFF
or ON. To avoid electric shock, use caution when working near WAN ports. When detaching cables,
detach the end away from the unit first.
Statement 1026
For dialup connection to your service provider network through the V.92 port, follow the steps given
after
Figure 3-4, which show this connection.

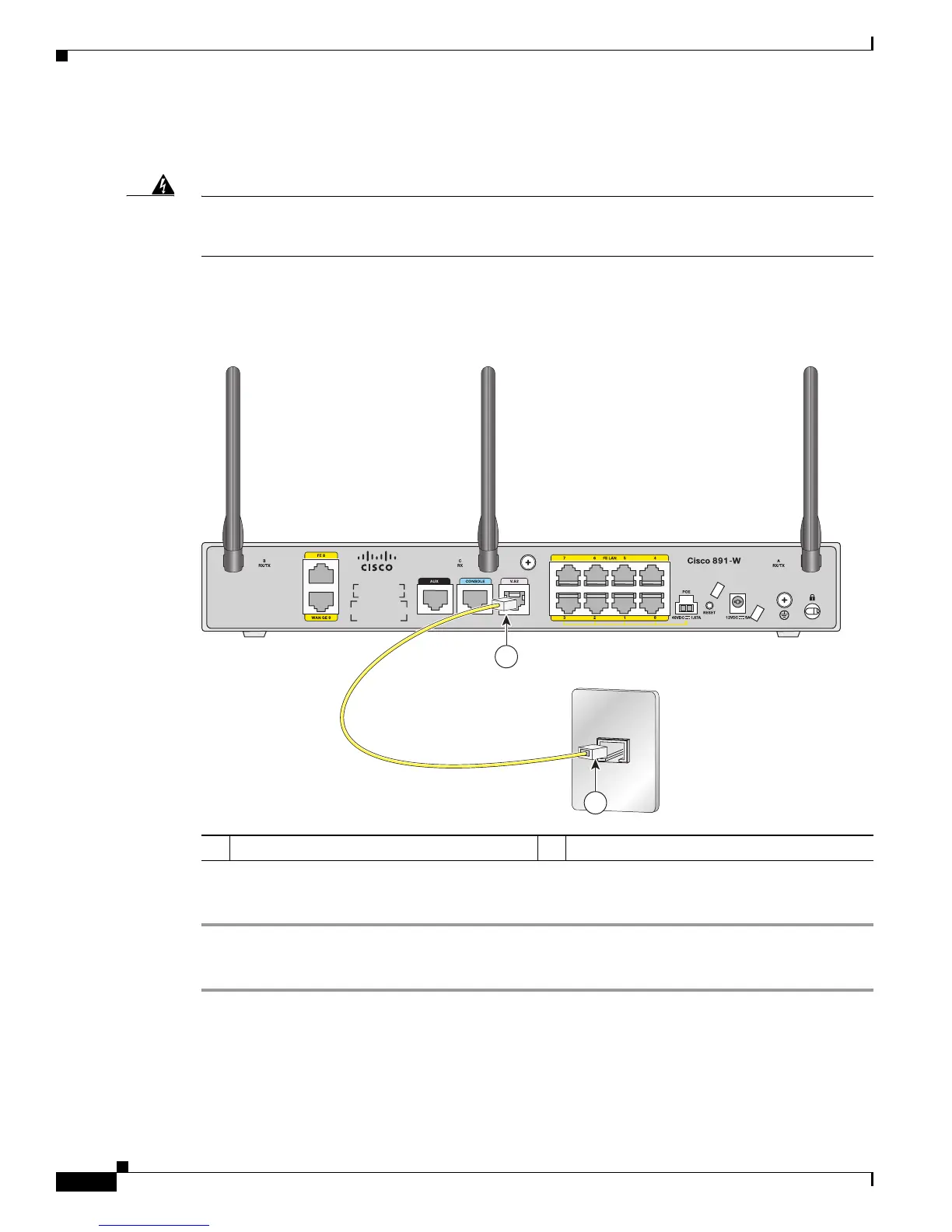

Figure 3-4 Connecting to Your Service Provider Through the V.92 port
To connect the router to your service provide network through the V.92 port, follow these steps:
Step 1 Connect one end of the straight-through R-J11 cable to the V.92 port.
Step 2 Connect the other end of the straight through R-J11 cable to an RJ-11 telephone wall outlet.
1 V.92 port on the router 2 Telephone wall outlet
272387
1
2
