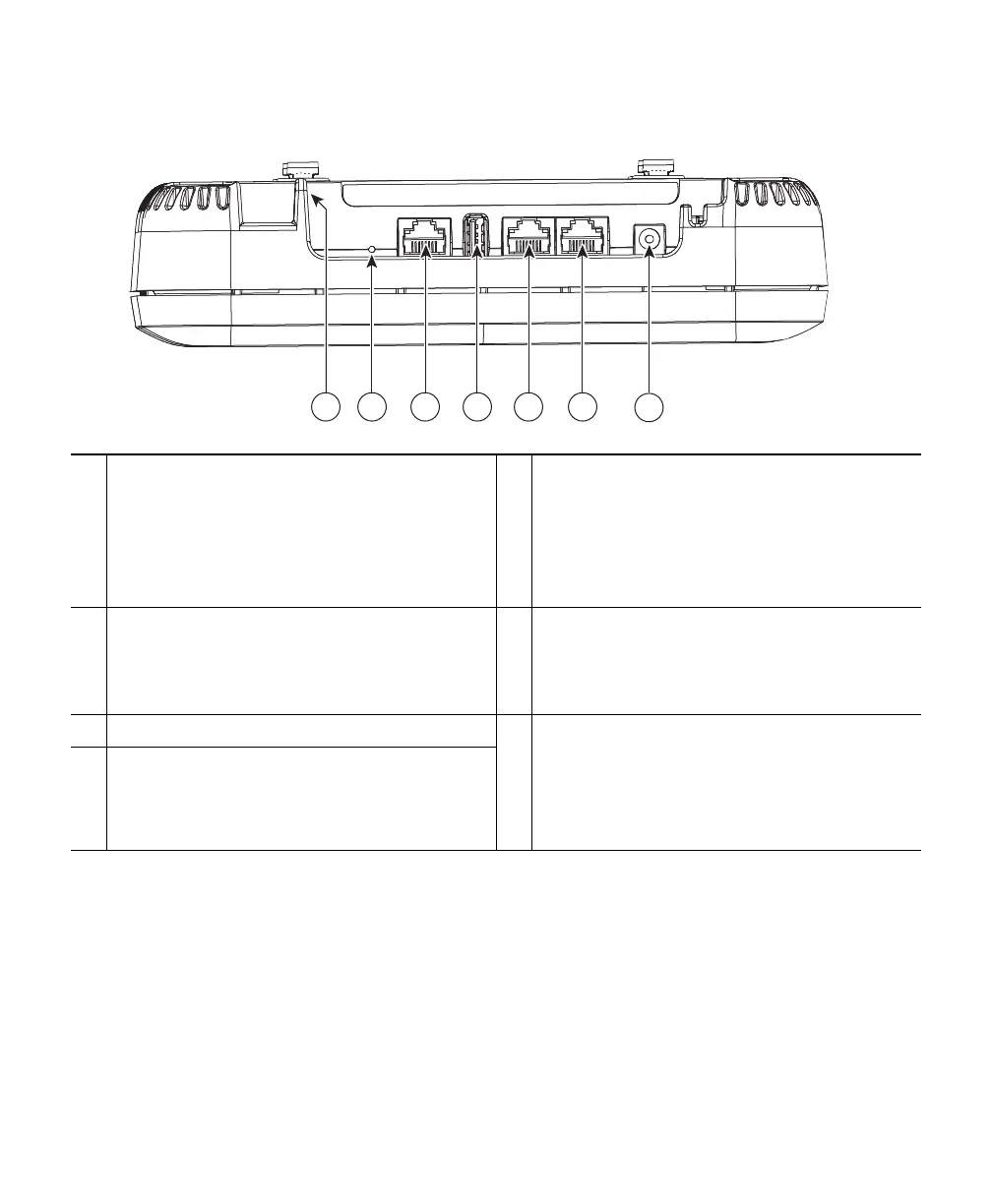

Figure 2 Access Point Ports and Connections
1
Security hasp for padlocking AP to mounting
bracket
5
AUX (Auxiliary) port.
This port appears in the wireless controller
user interface as GigabitEthernet1. This
port, along with the PoE-In port, is used for
Link Aggregation. This port is disabled when
using 802.3af (15.4W) power.
2
Mode button
For information on how to use the Mode
button, see “Using the Mode Button” section
on page 23.
6
PoE-In port (Ethernet Uplink port)
3
RJ-45 console port
7
48 V DC input power port
4
USB 2.0 port
(no software support at this time)
353813
