A-9
Cisco AS5350XM and Cisco AS5400XM Universal Gateways Card Installation Guide
78-17406-01
Appendix A Cabling Specifications
8-Port T1 or E1 Feature Card Cable and Port Pinouts
Step 2 You can align the molded RJ-45 ends of the cables in one of the following ways:
• Place the molded RJ-45 ends of the cables next to each other. This placement creates space between
the last molded RJ-45 end of the cable and the edge of the bracket adjacent to it. Route the cables
through this space. (See Figure A-8.)

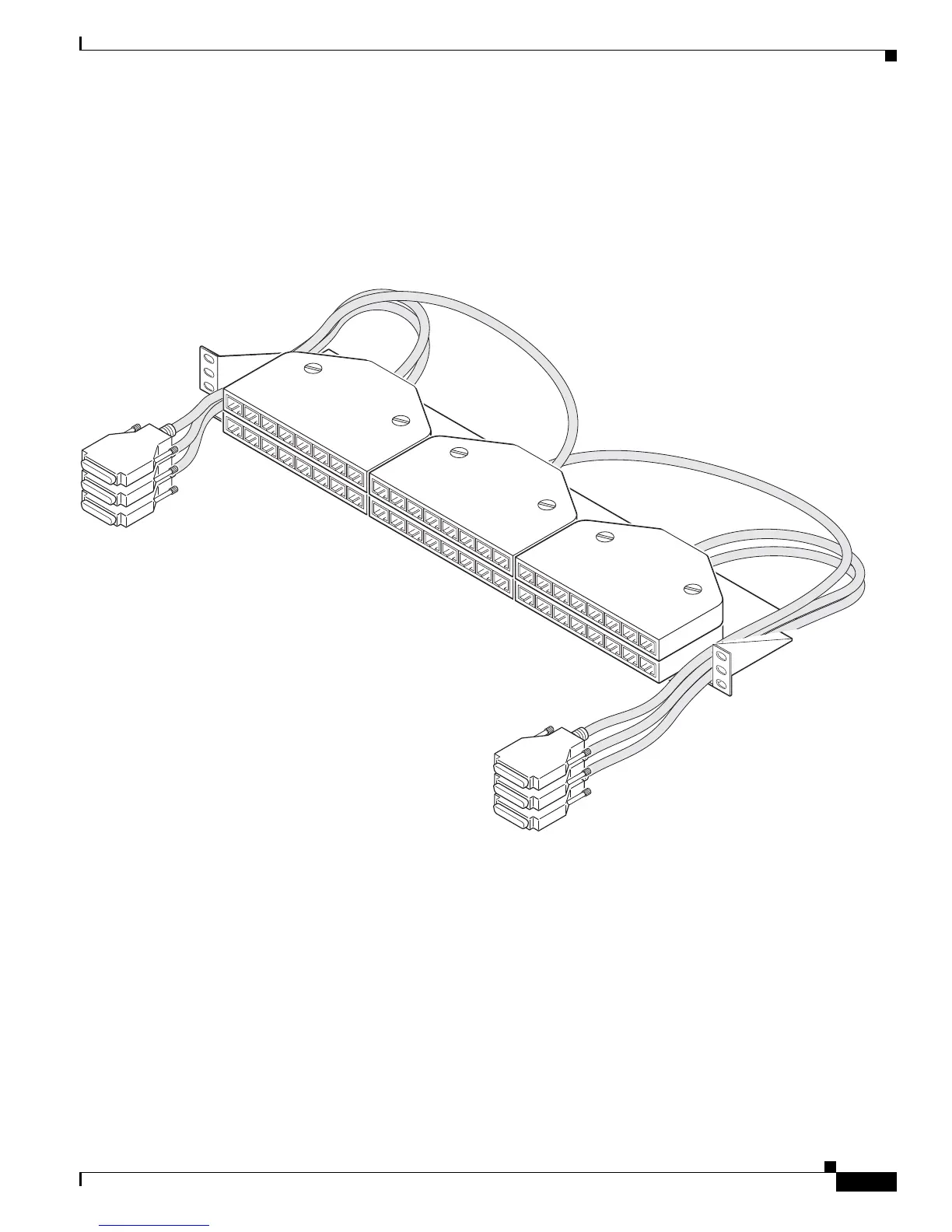

Figure A-8 Routing Cables with Molded RJ-45 Ends of Cables Next to Each Other
35059
