Cisco ASA 5506-X Installation Guide

Lock slot
The slot accepts a standard Kensington T-bar
locking mechanism for securing the ASA.
8Reset button
A small recessed button that if pressed for longer
than three seconds resets the ASA to its default
“as-shipped” state following the next reboot.
Configuration variables are reset to factory
default. However, the flash is not erased and no
files are removed.
You can use the service
sw-reset-button command to disable
the reset button. The default is enabled.
Note
Pressing the reset button on the ASA
5506W-X does not affect the AP
configuration, but it causes any
unsaved AP configuration to be lost,
because the system has rebooted. After
the system reboots, if you want a
default AP configuration, use the
hw-module module wlan recover
configuration command to recover
the AP configuration.
Note
7

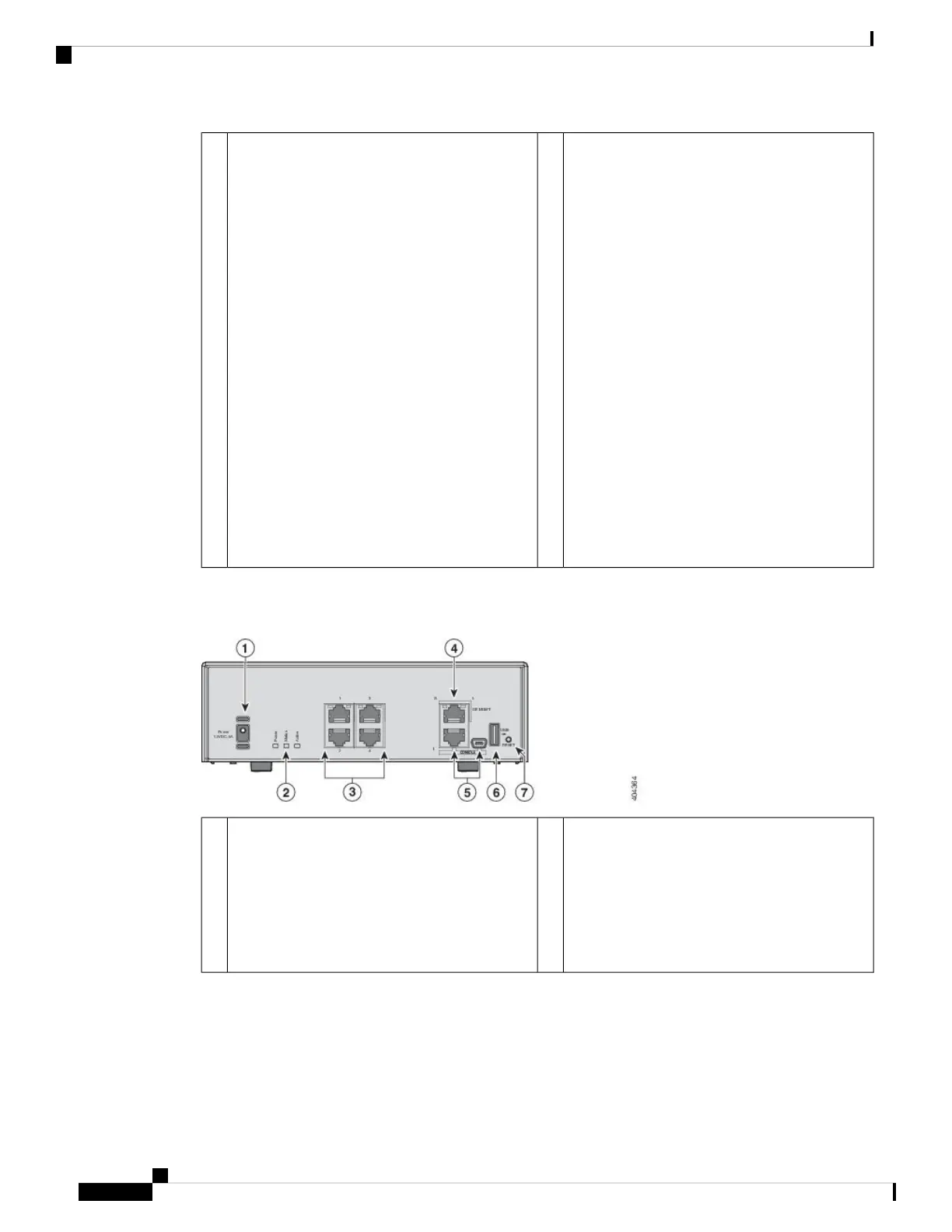

The following figure shows the rear panel of the 5506H-X.
Figure 6: ASA 5506H-X Rear Panel
Status LEDs
The locations and meanings of the status LEDs
are described in LEDs, on page 7.
2Power cord socket.
The chassis power-supply socket. See Power
Supply Modules, on page 11 for more
information about the chassis power supply.
The ASA is powered on when you
plug in the AC power supply.
Note
1
Cisco ASA 5506-X, ASA 5506W-X, and ASA 5506H-X Hardware Installation Guide
Online Only6
Overview
Rear Panel

Cisco ASA 5506-X Specifications

General

Model	ASA 5506-X
Firewall Throughput	750 Mbps
Maximum Firewall Connections	50, 000
Maximum VPN Peers	50
Integrated Ports	8 x 1 GE
Stateful Inspection Throughput	750 Mbps
Weight	4.4 lb (2 kg)
Firewall Throughput (Multiprotocol)	750 Mbps
Firewall Throughput (Application Visibility and Control AVC)	250 Mbps
Concurrent Sessions	50, 000
New Connections per Second	10, 000
IPsec VPN Throughput	100 Mbps
Interfaces	8 x 1 GE
Memory	4 GB
Flash Memory	8 GB
Form Factor	Desktop
VPN Throughput	100 Mbps
Maximum Concurrent Sessions	50, 000
New Sessions per Second	10, 000
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-13 to 158°F (-25 to 70°C)
Power Supply	External
Humidity	10% to 90% non-condensing
