Cisco ASA 5506-X Installation Guide

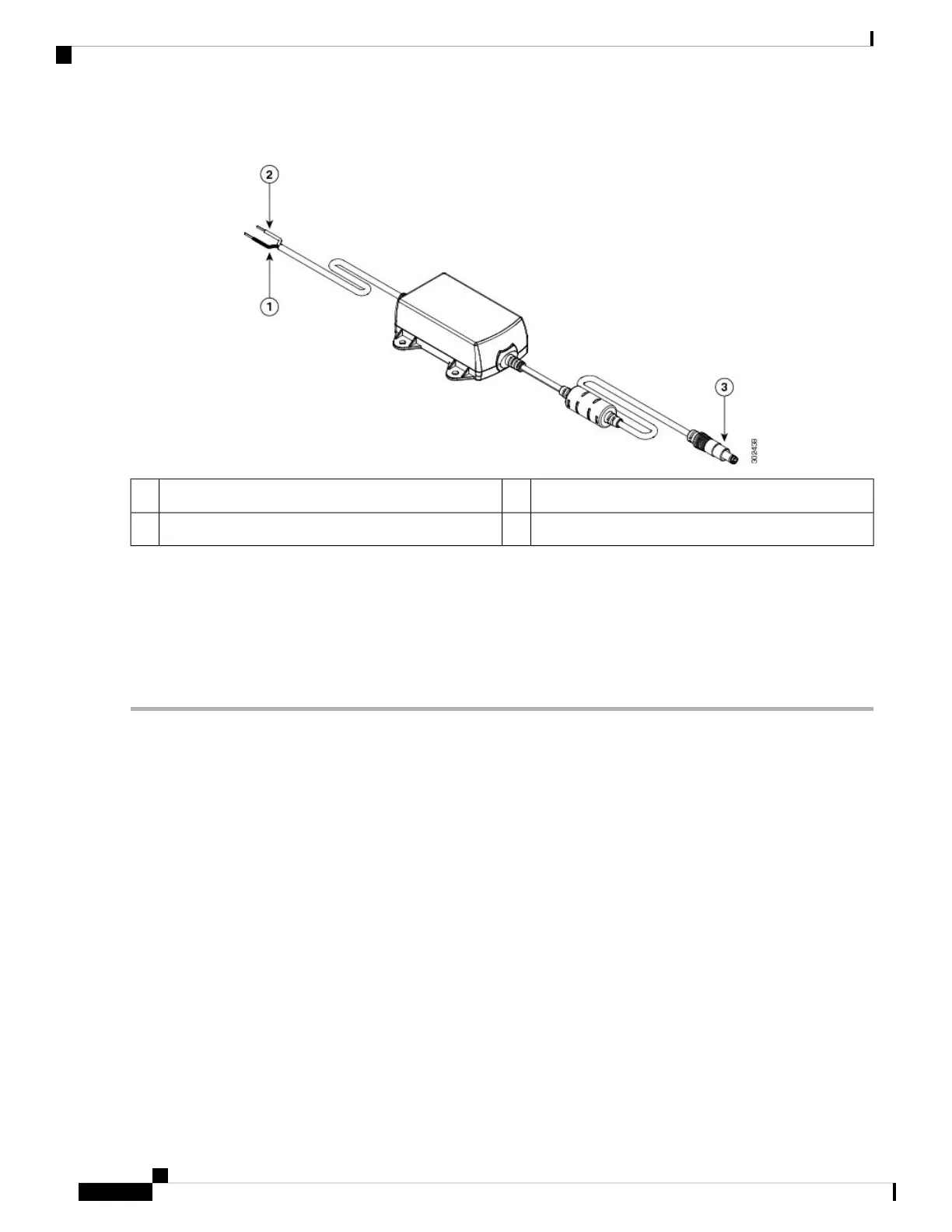

Figure 29: DC Power Adapter
White wire (positive)2Black wire (negative)1
Adapter3
Step 2 Plug the adapter cord into the chassis.
The power adapters have 18 AWG wires for the input connection. Tinned bare wires are used for the input
connection because there is no standard established for connector type. Screw terminal blocks are most often
used.
Note
Step 3 Power on the chassis and check that it has power. See LEDs, on page 7 for information on the power LED.
Install the Adjustable Power Supply Retainer
You can install an adjustable power supply retainer for the Delta and LiteOn power supplies in the rack-mount
tray. The bracket kit contains the bracket, 2 M3 screws, and washers. The following figure shows the adjustable
retainer.
Cisco ASA 5506-X, ASA 5506W-X, and ASA 5506H-X Hardware Installation Guide
Online Only40
Installation, Maintenance, and Upgrade
Install the Adjustable Power Supply Retainer

Cisco ASA 5506-X Specifications

General

Model	ASA 5506-X
Firewall Throughput	750 Mbps
Maximum Firewall Connections	50, 000
Maximum VPN Peers	50
Integrated Ports	8 x 1 GE
Stateful Inspection Throughput	750 Mbps
Weight	4.4 lb (2 kg)
Firewall Throughput (Multiprotocol)	750 Mbps
Firewall Throughput (Application Visibility and Control AVC)	250 Mbps
Concurrent Sessions	50, 000
New Connections per Second	10, 000
IPsec VPN Throughput	100 Mbps
Interfaces	8 x 1 GE
Memory	4 GB
Flash Memory	8 GB
Form Factor	Desktop
VPN Throughput	100 Mbps
Maximum Concurrent Sessions	50, 000
New Sessions per Second	10, 000
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-13 to 158°F (-25 to 70°C)
Power Supply	External
Humidity	10% to 90% non-condensing
